| Prod Model: |
HKY Type 860 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Motor Power: |
5kw |
| Hydraulic Oil Pump: |
CB-E310 |
| Material Of Roller: |
45#Steel Hard Chrome Plating |
| Forging Forming Method: |
Roll Forming Machine |
Product Description

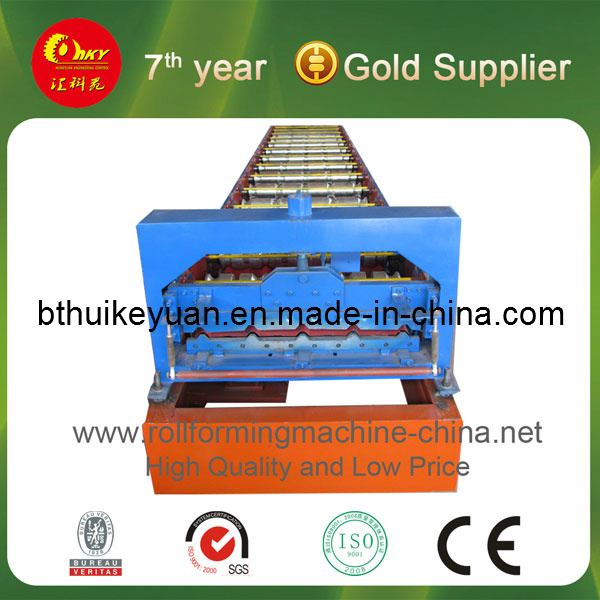

HKY Type 860 color steel roof tile forming machine, roof tile forming machine, forming machine, wall tile forming machine, roll forming machine, roof tile roller forming machine, roof tile rolling former machine
Work Flow
Decoiling--feeding---forming---cutting---finished product
Equipment Parts
Decoiler, roll forming machine, hydraulic cutting device, electric system(PLC control system), hydraulic system, stacker.
The technical parameters
1. Main Motor Power: 5.5kw
2. Hydraulic Station Power: 4KW
3. Hydraulic Oil Pump: CB-E310
4. Sprocket: P-25.4
5. Roller Station: 13
6. Yield Strength: 32MPa
7. Diameter of Principal Axis: 70mm(a key way is in the axle so that the roller can be tight in the axle)
8. Material of Roller: 45#steel hard chrome plating
9. Processing Speed: 0-12m/min
10. Thickness: 0.3-1mm
11. Installation Dimension (L*W*H): 7.5m*1.6m*1.4m
12. Material of Blade: Cr12
13. Coil Width: 1000/1250mm
14. Cover Width: As per the customer's requirement
15. Total Weight: 4.6T
16. Equipment Parts: Forming machine, hydraulic cutter(30mm steel board welded ) hydraulic station, PLC, equipment base(GB360channel steel welded) and linear transducer.
HKY Group always focus on metal sheet roll forming machine design and manufacture, during the past years we offer different kinds of roll forming machines to many countries and we earn a global reputation of producing high quality roll forming machines to meet our custom's need. Click here www. Rollformingmachine-China. Net you may know more about our company.
You are welcome to visit our factory anytime, and don't be hesitate to contact me please.
Carol
Tel: +86 317 3087243
Fax: +86 317 3087243
Cel: +86 15503170289
Botou Huikeyuan Engineering Control Co., Ltd is the "Important individually-run enterprise"of Botou City. Since many years, we devoted ourselves to develop the metal-plate cold forming machine, now we have unique management pattern and products development ability. Our company leads first in the same field. Our products have light structure and reasonable design, they won praise from same steel structure field because of the innovation constantly.
The company is located at side of No. 104 national road in Botou City, which is the famous casting city in China. The company covers an area of over30, 000 square meters. We have near 100 technicians in different skills. We remain the first-rate level on design and production of C-type and Z-type steel equipment, at the same time, we increased the tile press computer control system production line, antique glazed tile machine production line, H-type steel machine production line, big-span, no-beam structure equipment production line and automobile carriage board machine production line. We can design and manufacture the special type machine according to the customer's requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
According to the requirements of market, ou company produced new and high technological products-KDQ type quantified cutting control system in Jan. 2000. This control system has functions of measuring, monitoring and early warning. It has high starting point, accurate measurement, easy operating and complete monitoring. It is the originated one in domestic, a breakthrough of cutting control on microcomputer technique and the miracle of rutting fields.
At recent years, large of products were sold to Russia, India, England, Australia, America, Kazakhstan, Tajikistan, Malaysia, Nigeria, Rumania and Albania etc, more than 50 countries and regions. ur products won acclaim from all customers in domestic and abroad.
