Product Description

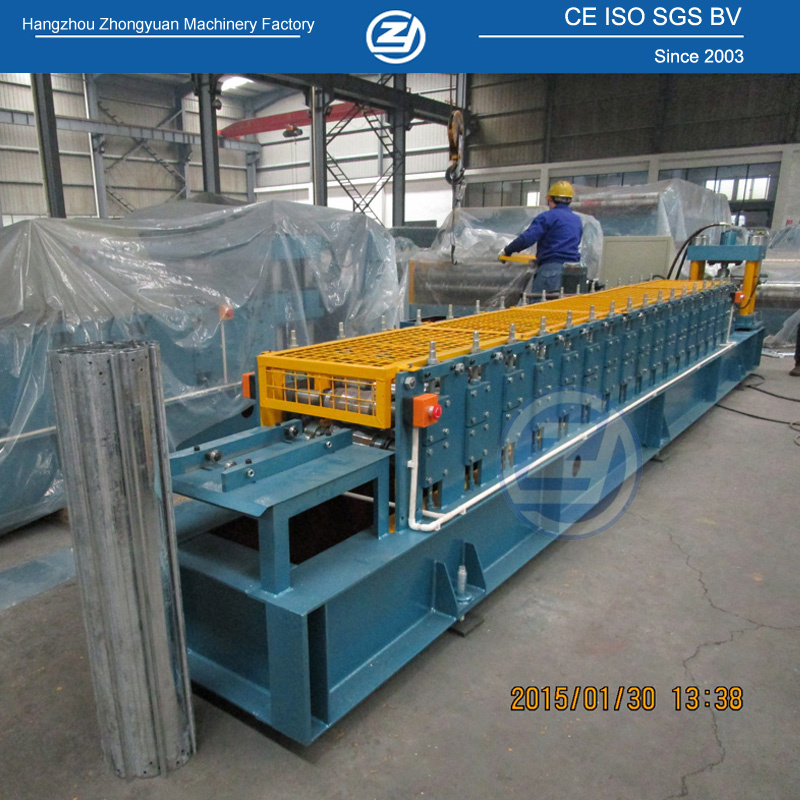

Roll Shutter Door Forming Mahine
Product Feature:
The product from the roll forming machines is used as shutter door of building. Punching or without punching can be chose.
Components of machine
Shutter door forming machine includes in decoiler, sheet guiding equipment, roll forming system, post-cutting equipment, hydraulic station, electric controlling system and run out table for product.
Main technical parameters:
1 Suitable material: Color steel sheet or galvanized steel sheet
2. Thickness of raw material: 0.5-0.7mm
3. Yield strength of material: 235MPa-345MPa
4. Forming speed: About 15m/min
5. Power Requirement Main motor power: 5.5Kw(Depend on final design)
Hydraulic station power: 2.2Kw (Depend on final design)
6. Uncoiler's loading capacity Max. Capacity: 3000kgs
7. Controlling system: Mitsubishi PLC & converter
Client's requirement can be designed in our company.
| Item | Specification |
| Type | Color steel sheet or galvanized steel sheet |
| Material | Thickness(mm) | 0.5-0.7 |
| Yield strength(mpa) | 235 -345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 15 (excluding in cutting time) |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mold steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 5.5KW (Depend on final design) |
| Hydraulic station power | 2.2K W (Depend on final design) |
| Total power(kw) | 7.7KW |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs |
| Machine`s size | About 7*1.2*1.5m (Depend on final design) |
| Machine weight | About 5000kgs |
Components of machine: |
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| PLC Controlling system | 1set |
| Run out table | 1set |
Process flow: |
| Decoiling the sheet → Leveling sheet → Roll forming → Measure length and cutting → the Purline to the supporter |
Controller:
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
