| Prod Model: |
YD-0154 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Height: |
About 1.5m |
Product Description

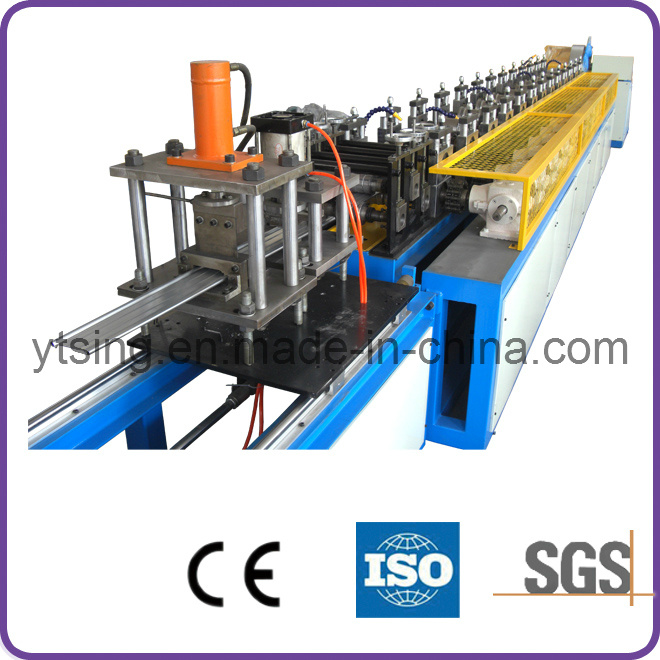

The rolling shutter slat forming machine is fully automatic and is easy operate to form shutter slats. The rolling shutter slat forming machine consists of a decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system and control system. The roller shutters made by the PU rolling shutter slat forming machine have clean and neat external appearance and feature even ripples, high utilization and strong strength. The design of our new model can joint two shutters without traditional clips. This solution speeds up the construction of the door and saves on need to purchase any accessories for the door. The rolling shutter slat forming machine can be designed to produce any profile according to the requirement of our customers. Our customers can choose to add an inline punching holes device. The whole production line is driven by a hydraulic system and controlled by PLC with touch screen.
Application:
The products of the rolling shutter slat forming machine are used for shutter doors, windows, etc.
Packaging:
The rolling shutter slat forming machine is wrapped and covered with film making the package seaworthy. The legs of the machine are fixed with angle steel and heavy screws.
Complete Line Consist Of
Decoiler
Infeeder applicator
Roll forming
Fomaning & Heating machine
Straightening unit
Flying air cylinder saw cutting
Output table
1. PLC computer control
2. No noise, no shake, easy operation
3. Hydraulic system
4. Passed CE certification
5. Passed AAA certification
6. Passed ISO9001 certification
7. Quick changing machine, quick lime machine
We can also design PU shutter roll forming machines according to your specific profile drawing.
Wuxi Yuanding Science & Technology Co., Ltd.
Contact person: Becky
Tel: +86-024-8623-4279
Mobile: +86-186-4290-6462
Contact me to get more information
Welcome to contact and visit us, waiting for your cooperation sincerely.
|
Productivity |
Purlins as your per drawing |
|
Total Power Required |
25.0kw |
|
Set Up Time |
20min |
|
Working Hours per day |
8 to 16 |
|
Line Direction |
Left to right while facing operator panel |
|
Overall Machine Length Required |
28.6m |
|
Overall Packing Shipment |
One 40ft container |
|
Approximate Machine Height |
1.5m |
|
Type of Material |
Galvanized steel coils |
|
Max. Thickness of coil |
0.8 -1.2mm |
|
Max. Weight of coil |
4000kg |
|
Variable Line Speed |
12-15mtr/min |
|
No. of Work Stations |
7 sets for each roll forming both up layer and bottom layer
9 sets for compounding up layer and bottom layer |
|
Thickness of Coil |
0.8-1.2mm |
|
Max Roll Shafts Diameter |
65mm |
|
Max Line Speed |
12-15mtr./min |
|
Required Motor Capacity |
11KW(two motors) |
|
Product Quality |
Without scratches on the surface |
|
Roller Material |
GCR15, HRC48-52 |
|
Transmission |
1.2 inch chain drive |
|
Bearings |
National brand |
|
Cages |
Use the strong steel nets |
|
Leveling Screws on Base |
With thick metal plates |
