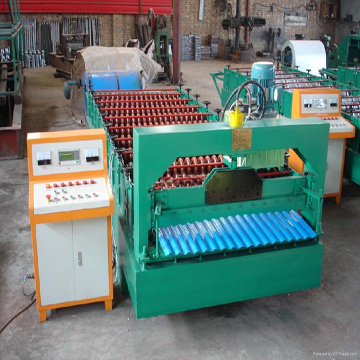

Roof Panel Forming Machine (ZY13-65-850)

Roof Panel Forming Machine (ZY13-65-850)
Price: US $ 1000-15000/Set
Trade Terms: by Sea From Xinagng,Tianjin Port
Min Order: 1Set
Prod Model: ZY13-65-850
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: According to Customers' Requirement

Product Description

A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
D. High speed and high production
1. Profile 1.1 Feeding width: 1000mm
1.2 Effective width:  850mm
1.3 Material thickness: 0.3-0.8mm
2. Process flow

Decoiling--feeding---forming---cutting---production


3.Manual Decoiler 3.1 Material coil inner diameter: 450mm-700mm
3.2 Max coil width: 1200mm
3.3 Carrying capacity: 5T
4.Forming Device 4.1 Number of forming steps:14 steps
4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm
4.3 Roller material: 45# steel
4.4 Main motor power: 4kw
4.5 Forming speed: 8-10m/min
4.6 Voltage:380V/50Hz/3 phrase
5.Cutting Device 5.1 hydraulic cutter
5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62C
5.3 cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.
6.Controlling  Device 6.1 screen: 5.7 inch Taida screen from Taiwan
6.2 PLC: Taida DVP14ES from Taiwan
6.3 coder: Japanese Omron E6C2

7. Hydraulic 7.1 Advanced hydraulic system from Taiwan
7.2 Power: 3kw
8.Simple output frame simple frame weld bu #8 U bar, 1 pcs of 3m
9.Payment and   terms Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 20-25 days after receipt of deposit.
10.Warranty One year, and we will provide the technical support for the whole life.

11. Packing
Container packing of the line suitable for overseas shipping
The subject can be loaded in one 20’ GPcontainer.
Packing style: Naked and covered by plastic film, spare parts and some small parts packed in wooden box.
12.Assemble, train the machine It is free to assemble and train the machine, but the buyer must pay for the round-trip airplane ticket, and arrange accommodation during that time


13. Maintain
It is free to maintain the machine the first year after you buying, include changing the main components. The first year hence, you will pay for our technician $50/day to maintain the machine. And its component is not free, if you need to get it from us. (The buyer should supply airplane ticket and accommodation, if he need maintain).
Established in 1998, Botou Zhenyuan Roll Forming Machine Factory is specialized in designing and producing roof and wall roll forming machines.

Our products are widely applied to manufacturing colored steel tiles which get extensive application in industry workshop, warehouse, residence, etc. They have won high reputation for their satisfying quality among our customers.
