| Prod Model: |
ZYYX36-250-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operation Language: |
English or as Per Client`S Required |
| Rollers Material: |
No.45 Forged Steel, Plated with Hard Chrom |
| Shaft Diameter: |
72mm Solid Steel |
| Cutter Material: |
Cr12 Mould Steel Being Quenched Treatment |
| Machine Weight: |
About 8.5t |
| Machine Size: |
About 11*1.5*1.4m |
| Main Motor: |
7.5kw |
| Quality System: |
ISO |
| Controlling System: |
Mitsubishi PLC & Converter |
| Guarantee Time: |
First Year Free, Lifetime Services |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

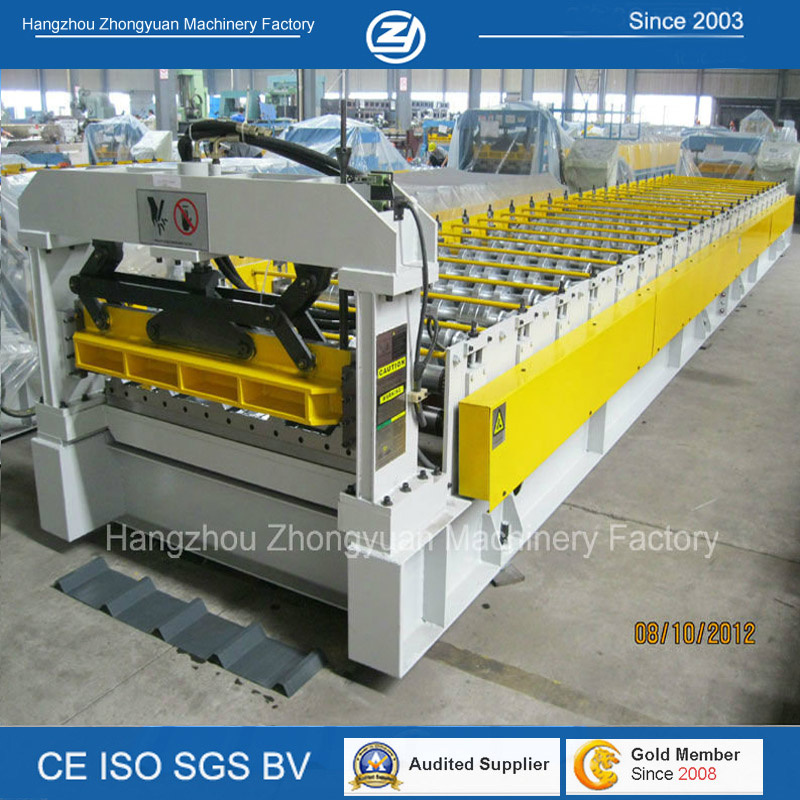

Roof Panel Roll Forming Machine (ZYYX36-250-1000)
Why choose this machine?
1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
72mm diameter solid steel shaft
Cutting blade with heat treatment.
5. Cr12 mould steel cutter with quenched treatment.
6. Product cut-to-length.
8.Technician overseas installing and training available
Quality by Zhongyaun
Zhongyuan is certified according to the standards ISO 9001: 2008 and EN982: 2008, EN ISO12100-1: 2003, EN ISO 14121-1: 2007.
Machine technical data
Technical parameter |
| Item | Specification |
Raw Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness(mm) | 0.3-0.7 |
| Yield strength(mpa) | 235-550 |
| Roller material | 45# steel , coated with Chrome |
| Shaft for rollers | Solid shaft with 72mm,processed with cylindrical grinder |
| Forming speed(m/min) | About 20-25 |
| Output speed(m/min) | About 12 for 6m length sheet |
| Speed adjusting mode | Mitsubishi frequency transformer |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Nemicon Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 7.5KW |
| Total power(kw) | 9.9 KW |
| Process flow | Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table |
Components of machine |
| Decoiler (manual decoiler and hydraulic decoiler for option) | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table (auto. Stacker for option) | 1set |
About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
Please feel free to contact us for more information!
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
