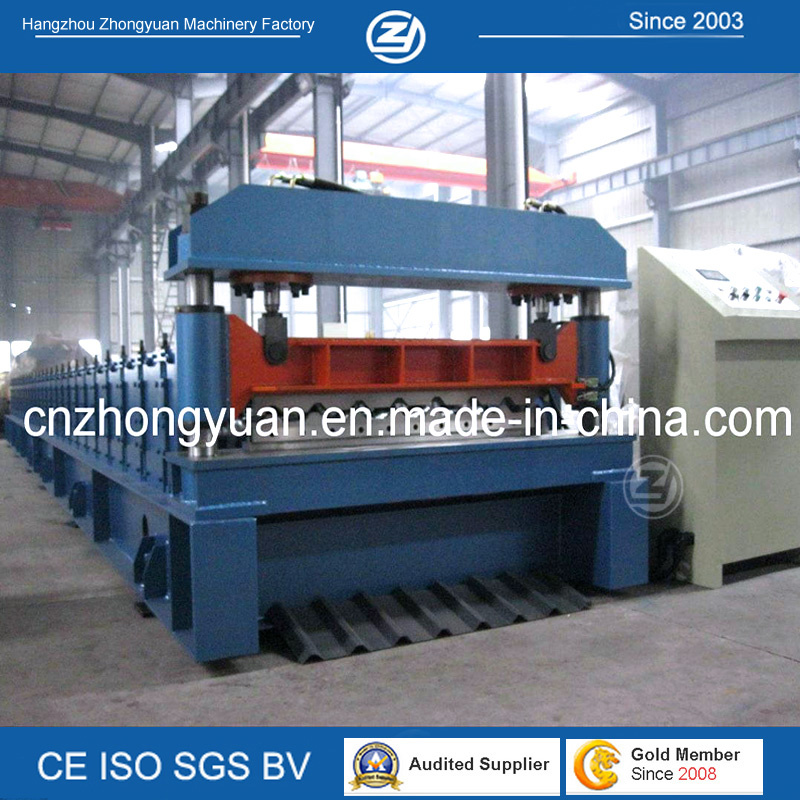

Name: Roof Panel Roll Forming Machine
Forging Forming Method: Cold Roll Forming Machine

Product Description

Roof Panel Roll Forming Machine

About Roll Forming Machine
1. Material: Color steel sheet
2. Yield strength: 235Mpa
3. Thickness: 0.3-0.7mm
4. Forming Speed: 15-20m/min.
5. Main motor power: 5.5Kw(Depend on final design)
6. Hydraulic station power: About2.2Kw (Depend on final design)
7. Manual decoiler Max. Capacity: 5000kgs
8. Type of cutting after roll-formed and length-set cutting
9. Electric condition 380V/3Phase/ 50Hz
10. Roller Material: High grade No. 45 forged steel. Plated with 0.05mm hard chrome.
11. Active Shaft Material: High grade No. 45 carbon wrought steel.
12. Cutter blade: Cr12 mould steel with quenched treatment
13. Type of cutting: After roll-formed and length-set cutting
14. Electric condition: 380V/3Phase/ 60Hz
15. Total weight: About 8500kg


Technical parameter
ItemSpecification

Raw Material
TypePre-painted steel coil & galvanized coils
Thickness(mm)0.3-0.7
Yield strength(mpa)235Mpa
Roller material45# steel , coated with Chrome
Shaft for rollers Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min)About 15-20
Output speed(m/min)About 12 for 6m length sheet
Speed adjusting modeMitsubishi frequency transformer
Roller drive                                               Decelerating motor + Chain drive
Cutting modeHydraulic cutting
Cutter material Cr12 mould steel
Length measurementNemicon Encoder
Control modeMitsubishi PLC
Operating modeButton + Mitsubishi Touch screen
Main motor power(kw)5.5KW
Total power(kw)9.9 KW
Process flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

Components of machine
Decoiler (manual decoiler and hydraulic decoiler for option)1set
Feeding & guiding device1set
Main roll forming machine1set
Hydraulic cutting system1set
Controlling system1set
Run out table (auto. Stacker for option)1set


About us
1. CE, ISO certificate by SGS.
SONCAP certificate.
2. Mitsubishi PLC controller and transducer from Japan
3.12moths warranty, whole life technical support
4. Customize machines, R&D team with 15 years well experience in desing machine
5. Company occupies 6650 squqre meters, in which 5650 squqre meters for workshops
6. Set up business relationship with companies in more than 20 countries
7. Third party inspection: Bureau Veritas, SGS
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.

At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.

At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.

Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.

We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
