| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V *3 Phase* 50Hz or as Per The Customer's Requi |
| Forming Speed: |
About 10-12m/Min |
| Usage: |
Roof / Buidings |
| Forging Forming Method: |
Mold Forging |
Product Description

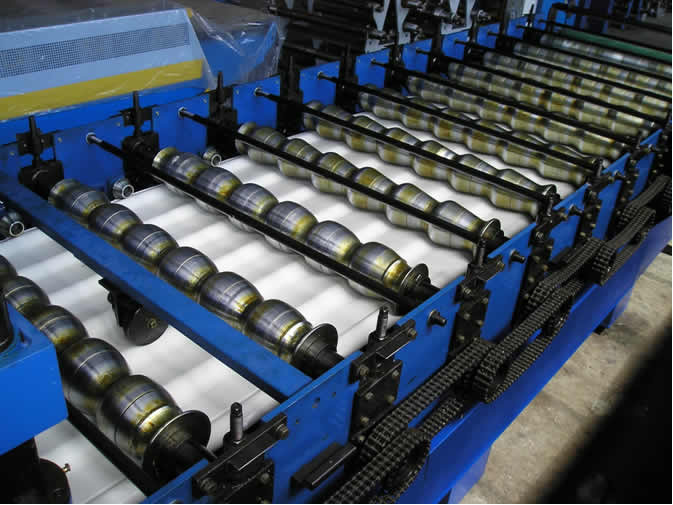

Roof tile roll forming machine Product Feature:
Widely used as the roof of garden, factory, hotel, exhibition center and villa, etc
Roof tile roll forming machine components:
Includes in hydraulic decoiler, sheet guiding equipment, roll forming system, pressing equipment, cutting equipment, hydraulic station, electric controlling system, supporter and safety cover
|
Suitable material |
Color steel sheet |
|
Thickness of raw material |
0.5_0.6mm |
|
Yield strength of material |
235Mpa |
|
Coil Width |
1000mm |
|
Working speed |
5000-8000mm/min (the top speed in the market) |
|
Step distance |
Adjustable according to requirement (> =250mm) |
|
Forming roll (roll station) |
20-28 PCS |
|
Forming roll (alignment) |
5-7 PCS |
|
Power Requirement Main motor power |
5.5 Kw-7.5KW (Depend on final design) |
|
Hydraulic Station Power |
5.5Kw |
|
Uncoiler' s loading capacity Max. Capacity |
5000kgs (can be increased to be 10T) |
|
Controlling system |
Mitsubishi PLC & converter |
|
Dimension |
Approx*1.8m*1.5m*1.4m (Depend on final design) |
|
Voltage |
380V 3 phase 60Hz or at buyer' s requirement |
ZuoJiaYou international industrial Co., Ltd is the registered in the Hong Kong special administrative region. It is a comprehensive company which has invested into the import and export industry for the machinery industrial and other goods in domestic. Our company has strong economic foundation, strong network of relationships, perfect technology and personnel configuration. We have a very completely mechanical independently research and development system, and a service system for import and export.
We have advanced production equipment and our engineering personnel and technicians have extensive experience in designing, developing, and manufacturing machineries. They pay close attention to and keep up with the developing trend of technologies and use new technologies in manufacturing machinery, to keep them competitive. Our products feature high efficiency, high flexibility and low cost.
"Customers are the first, success comes from development" is our principle. We bear this in mind during the whole process from design and development of product to after-sales services. We will design and manufacture machinery strictly in accordance with your requirements
Excellent service and high technology assist you to create a bright future.
