Roofing Sheet Double Deck Roll Forming Machine

Roofing Sheet Double Deck Roll Forming Machine
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1set
Pay Type: L/C,T/T
Prod Model: XF18/49
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Blue
Certificate: CE and ISO9001
Process Precision: Within1.00mm
Forging Forming Method: Roll Forming Machine

Product Description

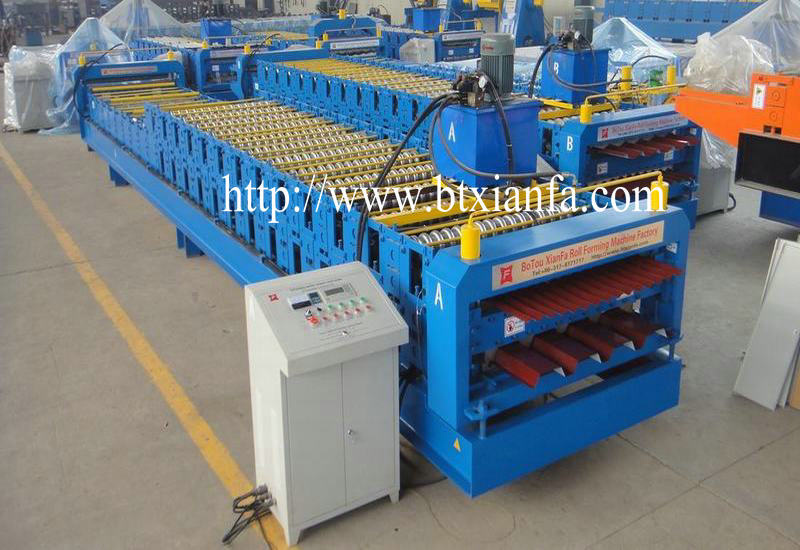

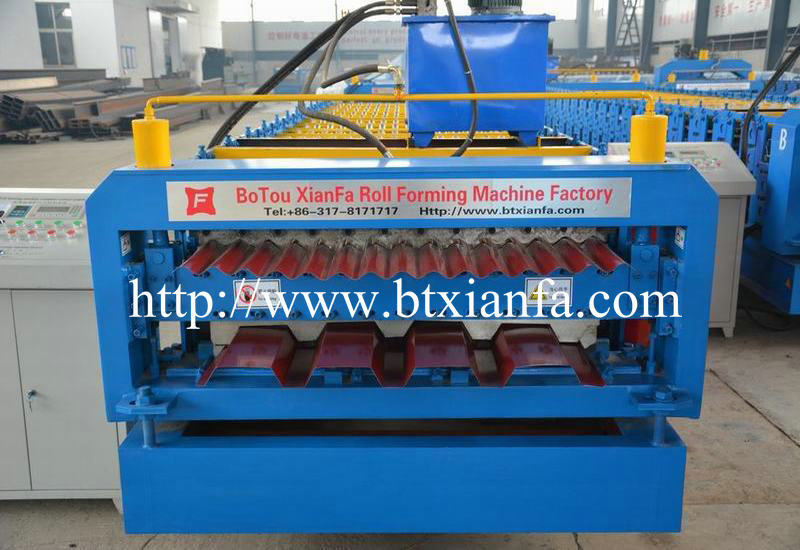

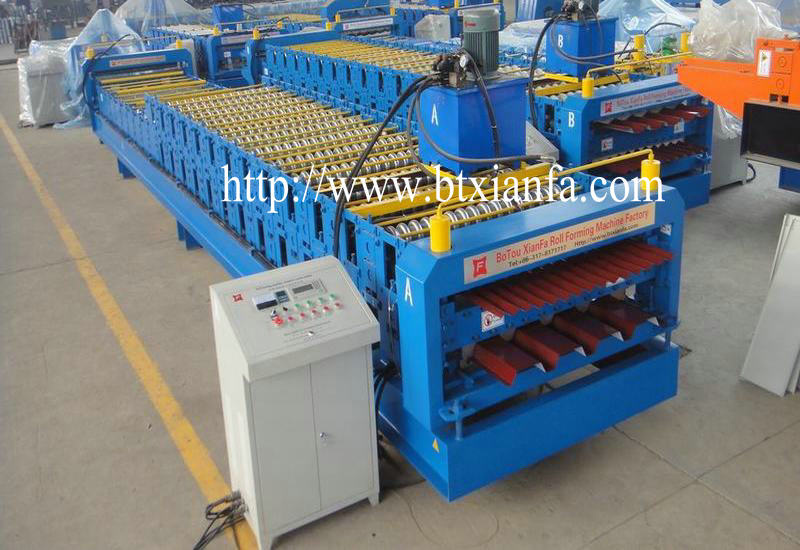

Roofing Sheet Double Deck Roll Forming Machine

Application
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site


Quick Detail
1.Suitable to process: Color steel plate
2.Width of the plate: 1250mm
3.Rollers: 12/22 rows
4.Dimensions: 12.3*1.55*1.91m
5.Power: 5.5+4kw
6.Rolling material: high grade 45# steel(plated chrome on surface)
7.Thickness of the plate:0.3-1mm
8.Voltage: 380V 50Hz 3phases
9.Material of the cutting plate: Cr12
10.Hydraulic: 40#
11.Processing precision: Within 1.00mm
12.Control system: PLC control


Roofing Sheet Double Deck Roll Forming Machine
Equipment Components: Man-Made Uncoiler-Roll Forming Machine
Computer Control System Hydraulic Control System-Cutting

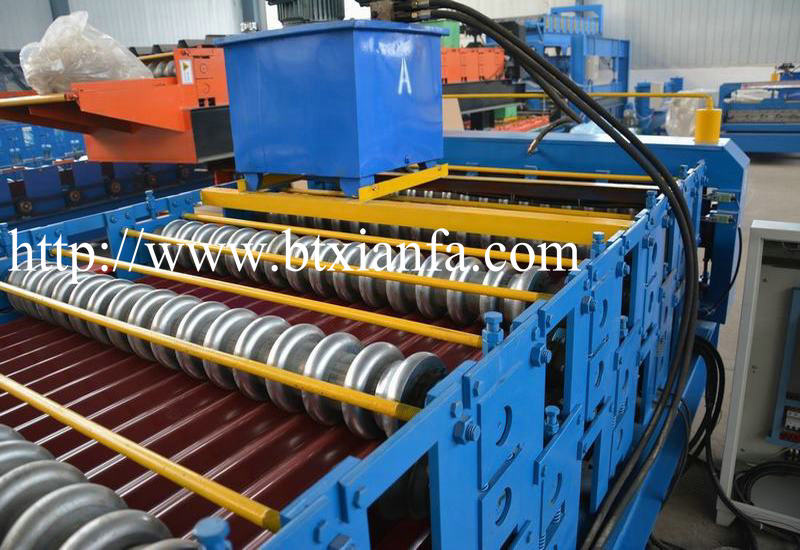

Roofing Sheet Double Deck Roll Forming Machine Rollers
Material of rollers:45# steel,roller surfaces polishing, hard plating
The polished surface and the heat treatment towards the molds also can keep the molding Plate surface smooth and not easy to be marked when it is being stamped

Roofing Sheet Double Deck Roll Forming Machine  Production Sample

1.We have a professional design team
2.Can also design and manufacture according to customer's requirement.


Competitive Advantage

1. CE certification
2. hydraulic motor drive
3. Exported to more than 70 countries
4. suitable for various kinds of steel plate
5. voltage according to customer request


Botou Xianfa Roll Forming Machine Factory
Recently,our products have been exported to more than 70 countries
And regions over the world
And maintained good cooperative relations with customers
We do firmly believe in technological  innovation and making
Every detail of the product perfect is our ambition ever


If you need our product, please contact me.
Looking forward to cooperate with you.


No.                             Main Parameter of  Double Deck Roll Forming Machine

1 Suitable to process Color steel plate
2 Width of the plate 1200/1250mm
3 Rollers upper level :12rows
Down level :22 rows
4 Dimensions 12300*1550*1910mm
5 Power 5.5+4kw
6 Rolling material high grade 45# steel(plated chrome on surface)
6 Thickness of the plate 0.3-1mm
7 Productivity 20m/min
8 Diameter of the roller Φ70mm
9 Voltage 380V 50Hz 3phases
10 Material of the cutting plate Cr12
11 Hydraulic 40#
12 Processing precision Within 1.00mm
13 Control system PLC control
Botou Xianfa Roll Forming Machine Factory
It is established in 1996, specializing in colored steel tile forming machinery. With the development of the economy, colored steel tile is widely used in constuction industory. Therefor customers need not only large quantity but also high quality. Our factory produced many now machinery such as CNCauto forming machine. Colored steel tile forming machine, colored steel tile equipment, colored steel tile machinery, Antique glazed tile line, roof load bearing line, compound board line, roll shutter door forming machine and dainpipe on the basis of nomal roll forming machine. At the same time we also produce Anode pole equipment of ESP, fast guardrail equipment and exc. Our products such as C&Ztype purline machine cutting systom, automatic punching have already reached the advanced level of the other suppiers. Our products cover all over the country and also are exported to Russia, Myanmar, Mongolia, Rumania, Iraq, south Korea, Canada, Mozambique Bahrain, Bolivia, Angola, Paraguay, Turkey, Sri Lanka, etc. Beautifu appearence, reasonable construction, pretty design of the tile won good reputation from colored tile products line and oversea customers.
