| Prod Model: |
ZYYX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Size: |
About 10*1.7*1.5m |
| Machine Color: |
Made-to-Order |
| Certifications: |
ISO,CE,Soncap |
| Motor Power: |
5.5kw |
| Deliver: |
About 50days |
| Operation Language: |
English or as Per Client`S Required |
| Roller Material: |
Mitsubishi PLC & Converter |
| Cutter Material: |
Cr12 Mould Steel Being Quenched Treatment |
| Cutting Type: |
Cut to Length |
| Guarantee Time: |
First Year Free, Lifetime Services |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

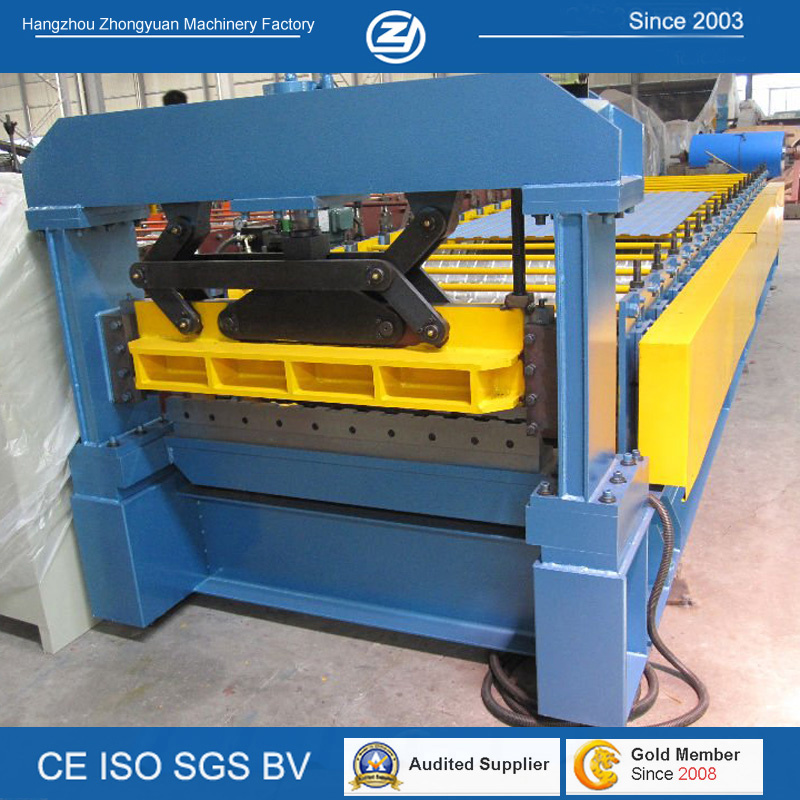

Roofing Sheet Forming Machine
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
About Roll Forming Machine
1. Material: Color steel sheet
2. Yield strength: 235Mpa
3. Thickness: 0.3-0.7mm
4. Forming Speed: 15-20m/min.
5. Main motor power: 5.5Kw(Depend on final design)
6. Hydraulic station power: About2.2Kw (Depend on final design)
7. Manual decoiler Max. Capacity: 5000kgs
8. Type of cutting after roll-formed and length-set cutting
9. Electric condition 380V/3Phase/ 50Hz
10. Roller Material: High grade No. 45 forged steel. Plated with 0.05mm hard chrome.
11. Active Shaft Material: High grade No. 45 carbon wrought steel.
12. Cutter blade: Cr12 mould steel with quenched treatment
Technical parameter |
| Item | Specification |
Raw Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness(mm) | 0.3-0.7 |
| Yield strength(mpa) | 235-550 |
| Roller material | 45# steel , coated with Chrome |
| Shaft for rollers | Solid shaft with 72mm,processed with cylindrical grinder |
| Forming speed(m/min) | About 15-20 |
| Output speed(m/min) | About 12 for 6m length sheet |
| Speed adjusting mode | Mitsubishi frequency transformer |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mould steel |
| Length measurement | Nemicon Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 5.5KW |
| Total power(kw) | 7.7 KW |
| Process flow | Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table |
Components of machine |
| Decoiler (manual decoiler and hydraulic decoiler for option) | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table (auto. Stacker for option) | 1set |
