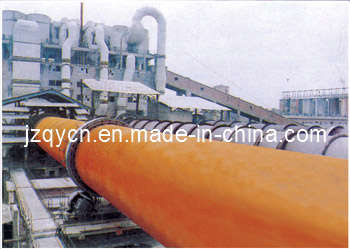

Rotary Kiln for Cement
| Price: |
Negotiable |
| Min Order: |
1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
We can provide on-site design, materials experimental, equipment installation and debugging, and the turnkey project of complete production line with new dry basis complete rotary kiln equipments. Rotary kiln is the main equipment for claiming cement clinker and it can be used widely for cement industry, metallurgy industry, chemical industry, etc. The rotary kiln is composed of the shell, the supporting device, the supporting device with thrust roller, the driving device, the movable kiln head, the sealing device at kiln tail, the combustion device, etc.
It has the simple structure and reliable operation, at the same the production process of the rotary kiln can be controlled easily. Through the technical renovations, the rotary kiln claiming system equipment has adopted the advanced hydraulic thrust roller device, the high measuring precession plunger pump, the variable speed adjusted valve, the contact graphite block sealing device and the other national advanced technologies.
In order to raise up automation degree, the industrial TV has been used at the kiln head for monitoring of kiln, the simulation phosphor screen has been used for display of process flow; The infrared scanning system has been adopted for claiming zone to directly reflect the burning conditions on the computer.
With the use of these new of these new technologies, it is convenient in operation and reliable in using. Therefore, the thermal condition can be stabilized and the running rate of equipment can be raised.
|
Type |
Specifications
(m) |
Kiln size |
Capacity
(t/h) |
Rotation
speed |
Motor
Power
(kw) |
Remarks |
Diameter
(m) |
Length
(m) |
Inclination
(%) |
Straight
Rotary Kiln |
Φ1.4x33 |
1.4 |
33 |
3 |
0.9-1.3 |
18.5 |
47.5 |
|
|
Φ1.6x36 |
1.6 |
36 |
4 |
1.2-1.9 |
0.26-2.63 |
52 |
|
|
Φ1.8x45 |
1.8 |
45 |
4 |
1.9-2.4 |
0.16-1.62 |
78.2 |
|
|
Φ1.9x39 |
1.9 |
39 |
4 |
1.65-3 |
0.29-2.93 |
77.59 |
|
|
Φ2.0x40 |
2 |
4 |
3 |
2.5-4 |
0.23-2.26 |
119.1 |
|
|
Φ2.2x45 |
2.2 |
45 |
3.5 |
3.4-5.4 |
0.21-2.44 |
128.3 |
|
|
Φ2.5x40 |
2.5 |
40 |
3.5 |
9.0-10.5 |
0.44-2.44 |
149.61 |
|
|
Φ2.5x50 |
2.5 |
50 |
3 |
6.25-7.4 |
0.62-1.86 |
187.37 |
|
|
Φ2.5x54 |
2.5 |
54 |
3.5 |
6.9-8.5 |
0.48-1.45 |
196.29 |
|
|
Φ2.7x42 |
2.7 |
42 |
3.5 |
10.0-11.0 |
0.10-1.52 |
198.5 |
|
|
Φ2.8x44 |
2.8 |
44 |
3.5 |
12.5-13.5 |
0.437-2.18 |
201.58 |
Suspended pre-heating
kiln |
|
Φ3.0x45 |
3 |
45 |
3.5 |
12.8-14.5 |
0.5-2.47 |
210.94 |
|
|
Φ3.0x48 |
3 |
48 |
3.5 |
25.6-29.3 |
0.6-3.48 |
237 |
Kiln with precalciner |
|
Φ3.0x60 |
3 |
60 |
3.5 |
12.3-14.1 |
0.3-2 |
310 |
|
|
Φ3.2x50 |
3.2 |
50 |
4 |
40.5-42 |
0.6-3 |
278 |
Kiln with precalciner |
|
Φ3.5x145 |
3.5 |
145 |
3.5 |
25 |
0.46-1.38 |
830.38 |
Wet Kiln |
|
Φ3.5x54 |
3.5 |
54 |
4 |
58-65 |
0.39-3.54 |
360 |
Kiln with precalciner |
|
Φ4.0x60 |
4 |
60 |
3.5 |
78-85 |
0.6-3.2 |
512.4 |
Kiln with precalciner |
|
Φ4.5x100 |
4.5 |
100 |
3.5 |
50-70 |
0.86-2.57 |
912.9 |
|
Reducing
Rotary Kiln |
Φ1.6/Φ1.4x26 |
1.6/1.4 |
26 |
4 |
0.7-1.1 |
18.5 |
41 |
|
|
Φ1.9/Φ1.639 |
1.9/1.6 |
39 |
4 |
2.2-2.7 |
0.17-1.72 |
67.22 |
|
|
Φ2.0/Φ1.8x45 |
2.0/1.8 |
45 |
3.5 |
1.7-2.8 |
0.23-2.35 |
94.67 |
|
|
Φ2.2/Φ2.0x40 |
2.2/2.0 |
40 |
3.5 |
2.5-3.5 |
0.11-1.11 |
113.46 |
|
|
Φ2.5/Φ2.2x45 |
2.5/2.2 |
45 |
3.5 |
4.5-6 |
0.21-2.14 |
159.7 |
|
|
Φ2.8/Φ2.5x45 |
2.8/2.5 |
45 |
3.5 |
11-12.9 |
0.88-2.63 |
201.4 |
Suspended pre-heating
kiln |
|
Φ3.5/Φ3.0x60 |
3.5/3.0 |
60 |
3.5 |
23-29.6 |
0.54-2.7 |
360.6 |
|
Jiaozuo Winner Machinery Co., Ltd. Was founded in 1961, restructured in 2003 as joint-stock enterprises, the total assets of the company is USD 23 million, and covers an area of 160, 000 square meters. The existing staff of more than 1600, with more than 200 professional and technical personnel, and specifically for the metallurgical, mining, building materials, chemicals, coal and electric power, providing crusher, ball mill, processing equipment, pellet and sintering equipment, cement, building materials equipment, coal washing, mineral equipment and hoisting equipment. It' S the good faith enterprises in Henan and the focus of industrial enterprises in Jiao Zuo.
The company has large scale welding, machining, assembly, casting, forging, heat treatment, maintenance workshop and accessories company, the physical and chemical experiments, the measurement detection, nondestructive testing and other testing methods are complete, using three-dimensional computer design technology and finite element analysis in technology, having the capability of independent product design and development, the complete and reliable production process and the solid technical. The company currently has multiple large scale processing equipments, such as DIA8m vertical lathe, DIA6.3m vertical lathe, DIA5m hobbling machine, DIA8m hobbling machine, DIA6.0mX20.0m cylinder lathe, DIA12m milling machine, DIA220mm boring, DIA160mm boring, T6216 boring, DIA160mm landing boring and milling machine, CNC-4000 cutting machine, HJ-5 automatic welding center, 100mm board-coiling machine, DIA3.5m, DIA2.5m CNC vertical lathe, gantry milling machine and so on, providing 90 varieties and more than 600 specifications of products for many industries. The company found a set of perfect quality guarantee system from product development, design, and installation commissioning and after-sale service. The products are exported to many countries and regions. The mineral dressing products, especially crusher and ball mill have dominance in domestic market. The run mill, cylinder mixers, ball-making machine, single-roller crusher, rotary kiln, drying machines and other pellet and sintering products were used in many major iron and steel companies. Hoist and winch are national security standard products, having a good used for the coal and mining group in province.
"Customer' s first, quality' S first, integrity management and quality service" is our company' S business purpose, quality' S reliable and satisfying service is our company' S foundation for revitalization and development, technological innovation, people-oriented. The company keeps a long-term touch with many metallurgy, machinery, chemicals, coal and other design institutes, working together for the developing of quality products and the application of internal leading-edge technology.
