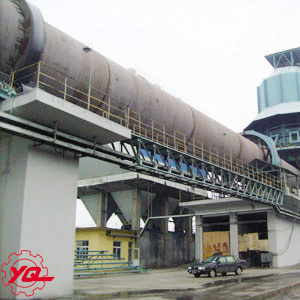

Rotary Kiln for Sintering and Pelletizing (YZ)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
YZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cylinder Diameter(Mm): |
1500-4300 |
| Cylinder Length(Mm): |
20000-30000 |
| Inclination: |
3.5%, 4% |
| Purpose: |
for Singtering Project |
| Capacity(T/H): |
0.9-110 |
| Revolution: |
0.11-3.52rpm |
| Motor Power(Kw): |
15-315 |
| Weight(Kg): |
37613-521200 |
| Processing Object: |
Metal |
| Application: |
Sintering Machine |
Product Description
Product name: Rotary Kiln /Kiln/Rotary Kiln Dryer/Cement Rotary Kiln/Rotary Kiln for Sintering and Pelletizin/Cement Equipment/China manufacturer/China supplier
It's the main equipment for calcining high-grade cement chamotte in cement plants; Its function is calcining raw material into cement chamotte. It's also widely used in ferrous metal, non-ferrous metal, metallurgy, fire-proof material, chemical industry, environmental protection and other industries.
Rotary Kiln features in simple structure, convenient and reliable control of the production process, less wearing parts, high rates of operation. The rotary kiln produced by our plant has strong structure, stable operation, high-quality products from the kiln and so on advantages, we can also offer advanced efficient shaft preheater, five grade cyclone preheater.
| Type | Size of cylinder | Output(t/h) | Rotate speed(rpm) | Motor power(kw) |
| Diameter(mm) | Length(mm) | Inclination (%) |
| YZ2245.00 | 2200 | 45000 | 3.5 | 3.2~5.3 | 0.23~2.25 | 45 |
| YZ2550.00 | 2500 | 50000 | 3.5 | 6.2~7.4 | 0.68~1.45 | 55 |
| YZ3048.00 | 3000 | 48000 | 3.5 | 20~25 | 0.67~2.6 | 100 |
| YZ3060.00 | 3000 | 60000 | 3.5 | 16~20 | 0.49~2.41 | 100 |
| YZ3250.00 | 3200 | 50000 | 3.5 | 26~40 | 0.36~2.58 | 160 |
| YZ3350.00 | 3300 | 50000 | 4 | 27~45 | 0.36~2.52 | 160 |
| YZ3554.00 | 3500 | 54000 | 4 | 39~60 | 0.39~2.9 | 220 |
| YZ4030.00 | 4000 | 30000 | 4 | 52~70 | 0.38~3.52 | 160 |
| YZ4060.00 | 4000 | 60000 | 4 | 55~88 | 0.40~3.1 | 315 |
| YZ4260.00 | 4200 | 6000 | 4 | 75~104 | 0.4~3.98 | 375 |
| YZ4565.00 | 4500 | 65000 | 3.5 | 110~140 | 0.38~3.52 | 420 |
| YZ4364.00 | 4300 | 64000 | 4 | 89~130 | 0.4~4.0 | 400 |
