| Prod Model: |
RSSM-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Medium: |
Liquid/Water/Gas |
| Working Temperature: |
-5-80 |
| Working Pressure: |
0-20bar |
| Connection Form: |
Thread |
| Application: |
Household Usage |
| Power Supply: |
AC/DC |
Product Description

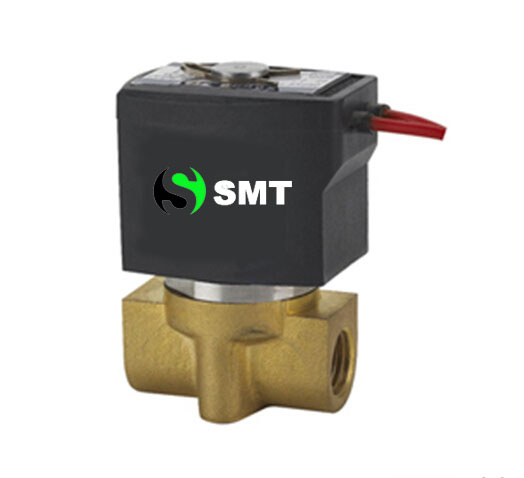

RSSM miniature solenoid valve G1 / 8 "~ 1/4" Details:
Suitable medium: Water, hot water, air, etc.
Medium temperature: -5 ~ 100 º C
Action: Direct-acting
Working Pressure: Normally closed: 0 ~ 10 kgf / cm2;
Body material: Brass (forging)
Seal material: Nitrile rubber (NBR)
Coil protection factor: IP65 plastic coil
| Model | RSSM-2 | RSSM-3 | RSSM-4 |
| Thread G | 1/8" | 1/4" | 1/4" |
| Orifice | mm | 2 | 3 | 4 |
| Cv value | 0.2 | 0.4 | 0.6 |
| Length | mm | 41 |
| High | mm | 63 |
| Work Temperature | -5 ~ 100 |
| Working Pressure | kgf/cm 2 | 0 ~ 10 | 0 ~ 8 | 0 ~ 6 |
| 220VAC/ 50HZ 8VA ; DC24V,6.5W ±10%; |
