| Prod Model: |
87611 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Stock: |
Yes |
| Name: |
Flange |
| Color: |
White |
| Thread E: |
Female |
| Standard: |
DIN |
| Material: |
Medium Carbon Steel |
| Connection: |
Flange |
Product Description

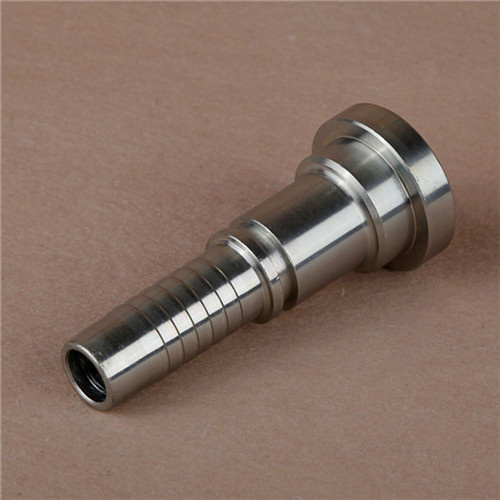

SAE Flange 6000PSI
1) Material: 45# carbon steel
2) Different sizes available
3) Zinc plated
4) ISO9001: 2000
| PART NO. | FLANGE SIZE | HOSE BORE | DIMENSIONS |
| DN | DASH | A | C | D | L |
| P87611-08-08 | 1/2" | 12 | 08 | 47 | 31.7 | 24 | 7.75 |
| P87611-12-10 | 3/4" | 16 | 10 | 51 | 41.3 | 32 | 8.76 |
| P87611-12-12 | 3/4" | 20 | 12 | 51 | 41.3 | 32 | 8.76 |
| P87611-16-12 | 1" | 20 | 12 | 56 | 47.6 | 38 | 9.53 |
| P87611-16-16 | 1" | 25 | 16 | 57 | 47.6 | 38 | 9.53 |
| P87611-16-20 | 1" | 32 | 20 | 61 | 47.6 | 38 | 9.53 |
| P87611-20-16 | 1.1/4" | 25 | 16 | 65 | 54 | 44 | 10.29 |
| P87611-20-20 | 1.1/4" | 32 | 20 | 66 | 54 | 44 | 10.29 |
| P87611-24-20 | 1.1/2" | 32 | 20 | 75 | 63.5 | 51 | 12.57 |
| P87611-24-24 | 1.1/2" | 40 | 24 | 75 | 63.5 | 51 | 12.57 |
| P87611-32-24 | 2" | 40 | 24 | 85 | 79.4 | 67 | 12.57 |
| P87611-32-32 | 2" | 50 | 32 | 85 | 79.4 | 67 | 12.57 |
| Note:1.For use with braided hoses. 2. If use with spiral hoses,hose fitting series number is P87612-XX-XX. |
