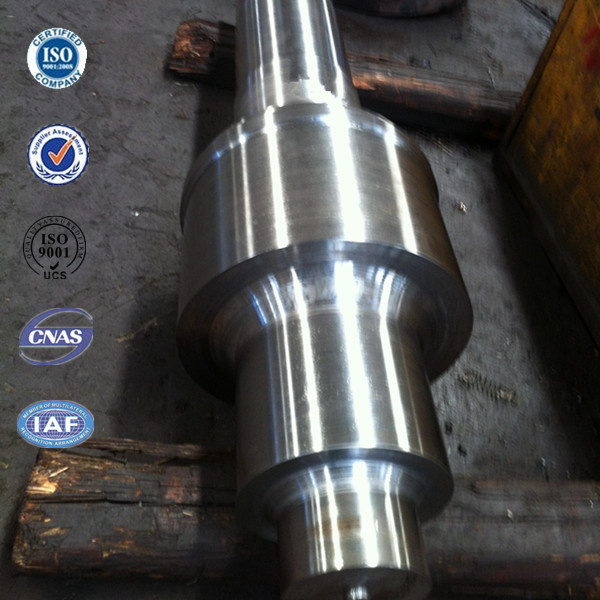

SAE4140/4340 Alloy Forging Steel Shaft

SAE4140/4340 Alloy Forging Steel Shaft
Price: US $ 88-88/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal
Prod Model: sae4140 alloy shaft
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/4'' to 500''
Name: SAE4140 Alloy Steel
Type: Carbon Steel Bar
Steel Grade: 600 Series
Technique: Forged
Application: Die Steel Bar, Tool Steel Bar, Structural Steel Bar
Surface Treatment: Polished
Alloy: Alloy
Special Use: Mold Steel

Product Description

1.Product Description
NameOpen die forging aisi4145 alloy steel
Material42CrMo, 42CrMo4, 34CrNiMo6
Production ability0.75MW-3MW
Main production processforged+ heat treatment+ rough machining+finish machining
StandardsASTM, ASME, DIN, JIS, ISO, BS, API, EN
Delivery StatusN + T (Normalizing + Tempering) , with finish machining
Production capacity1.Open die forging:
Max OD: 3800mm; Max weight: 35t; Max height: 2500mm.
2.Ring rolling:
OD: 600mm~3800mm; Min ID: 500mm; Max weight: 4t; Max height: 500mm.
2.Raw Material:
Carbon steel, C-Mn steel, alloy structure steel, alloyed tool steel, cold roll steel, steel for pressure vessel,
carburizing steel, die steel, stainless steel and so on.
Wind Turbine Shaft42CrMo4, 34CrNiMo6
Marine ShaftC-Mn steel
Hydro Turbine Shaft20SiMn
Roller Shaft70Cr3Mo; 9Cr2Mo; MC1; MC2; MC3
Gear Shaft17CrNiMo6; 18CrNiMo7-6; 20CrNi2Mo; 42CrMo; 47CrNiMo6, 20CrMnMo
Gear17CrNiMo6; 18CrNiMo7-6; 20CrNi2Mo; 42CrMo; 47CrNiMo6, 20CrMnMo, 30 CrNiMo6
Pressure Vessel ForgingsSA105, SA350 LF2, 16Mn, 20MnMo, 15MnMo, 12Cr2Mo1, 14Cr1Mo, 42CrMo, F304, F316, 17-4PH, 4330, 4336, 4340
Ring Rolling16Mn, 50Mn, 42CrMo, 15MnV, 35CrMo, A105, 20#, 304, 304L, 316, 316L
* As we manufacture customized products, other materials are also appreciated.
3. Specification:
1) The maximum length: 16m;
2) The maximum weight: 38t;
* The products could be manufactured according to your request.
4. Certification:
ISO 9001:2008, PED Certificate, TUV Rheinland, Bureau Veritas (BV), Lloyd Register (LR), ABS, RINA
Germanischer Lloyd (GL), Korean Register of Shipping (KR), Det Norske Veritas (DNV), Nippon Kaiji Kyokai (NK);
5. Production Process:
Forging---heat treatment---machining (rough machining and finish machining)
6. Delivery Status:
N+T (Normalizing + Tempering), Q+T (Quenching + Tempering);
. Specific price is determined by the material and your specific requirements.

Advantages:
1. Good mechanical properties;
2. High tensile strength;
3. Well-closed formation;
4. Comparative price;
. Customized services, manufacturing according to your specific requirements.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.

Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.

Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection

Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.

Specifications:

Description

The heavy forging: Forged ring, shaft, roller, flange, or gear

Material

Alloy steel or stainless steel

Material standard

ASTM or GB/T3077-1999

Specification

As per specified requirements

Weight

Max. 250 ton

Smelting Process:

EF+LF + VD+VC

Process

Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection

→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection

UT standard

EN10228, ASTM A388 or JB/T 5000.15-1998

Competitive Advantage:

The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.

Excellent product quality and service, competitive price, "in-time" delivery
