| Prod Model: |
FLT-SP05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Ss304 or Ss316L |
| Flow: |
0-40t/H |
| Power: |
4-11kw |
| Voltage: |
Can Be Design |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
Low Pressure Pump |
| Influent Type Of Impeller: |
Double-Suction Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
Product Description

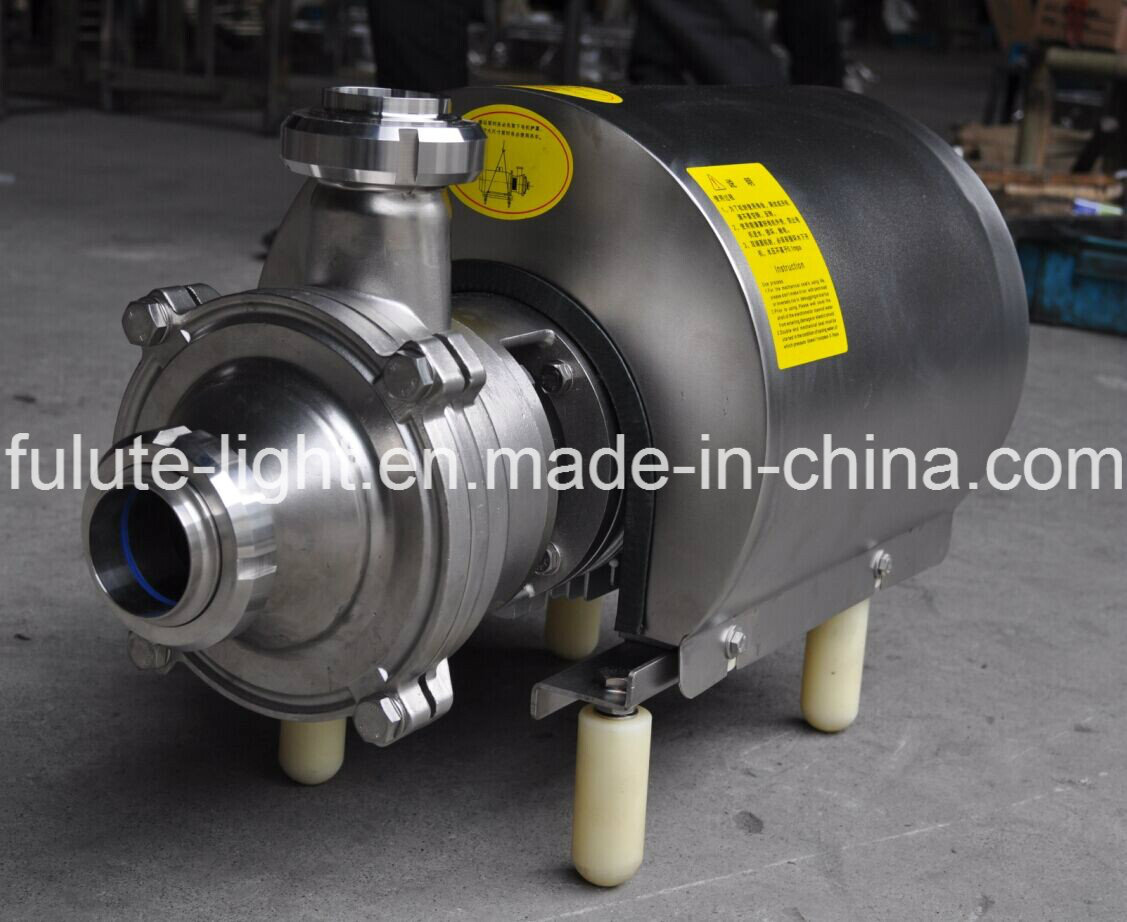

Saintary Self priming pump
Flowtam Saintary Self priming pump is use to pump the liquid which level is
lower than the inlet of the pump and deliver the fluid matters containing a part
gas. Its pump shell, cover and vane are made of high-grade stainless steel 304
or 316L; The motor is equipped with stainless steel shield, inner surface adopts
mirror polishing
Application
Mainly used to deliver the liquid containing a part of gas in the fields such as
pharmaceutical, alcohol, food, chemicals, beverages etc. And also used as return
pump on the spot of CIP cleaning system, and used for liquid delivery that need high
pressure filter.
Design and features
Different Connection type: Welding; Thread; Clamp
Different connections standard: DIN, SMS, JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304 Inside surface finishing Ra < 0.4 um. Outside surface
finishing Mirror polished
Options
Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
Cooled or double mechanical seal.
Motors with additional protection. (movable, ABB Explosion proof).
Trolley and/ Switchboard with invertor
| Performance | Parameter |
| 20T/24M | 30T/24M | 40T/36M |
| Flow | 20T | 30T | 40T |
| Total head | 24M | 24M | 36M |
| Suction stroke | 5-6M | 5-6M | 5-6M |
| Impeller diameter | 192 | 192 | Φ 215 |
| Inlet/Outlet diameter | 63.5/63.5 | 76.5/63.5 | 76/76 |
| Motor type | M2QA132S4A | M2QA132M4A | M2QA160SM4A |
| Power | 5.5KW(380V.50HZ) | 7.5KW(380V.50HZ) | 11KW(380V.50HZ) |
| Speed | 1420R/MIN | 1420R/MIN | 1420R/MIN |
| Dimensions (L*W*H) | 760*320*475 | 760*320*475 | 1006*360*600 |
| Machine weight | 110KG | 116KG | 168KG |
