Casting & Forging Manufacturers and Factories

Home Casting & Forging Products Top Quality Stainless Steel Rotary Lobe Pump

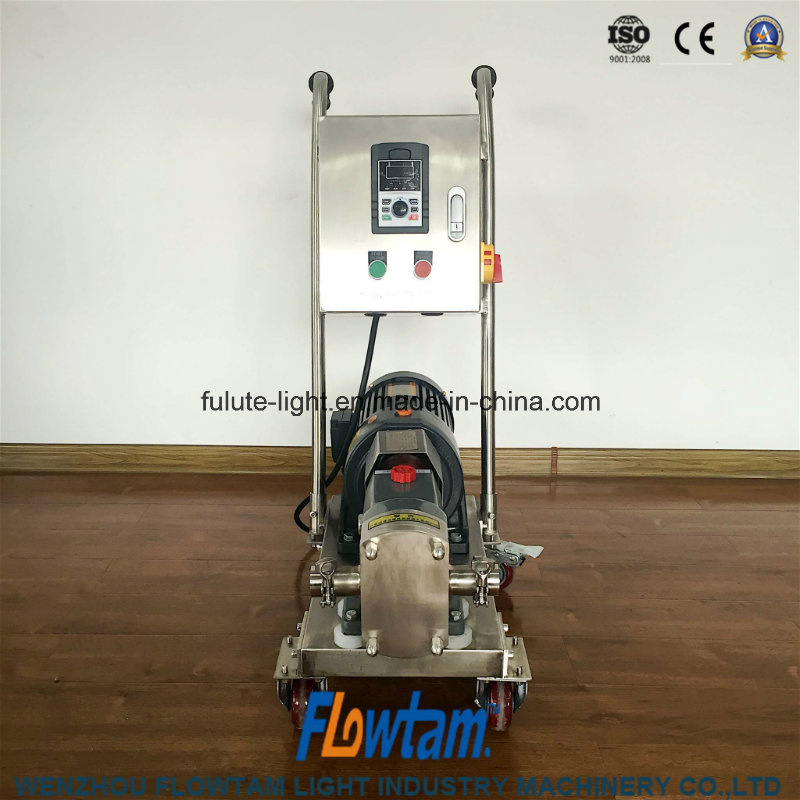

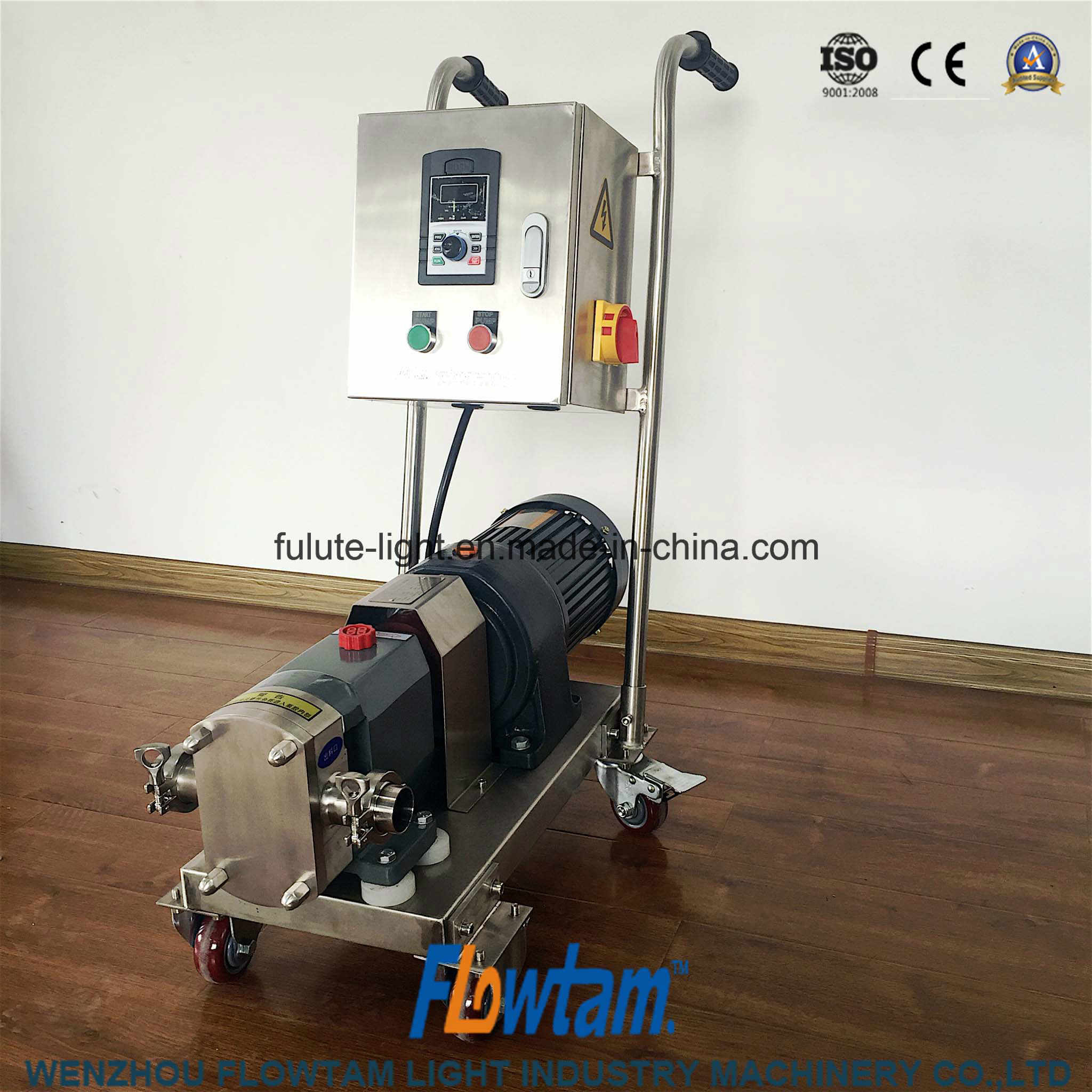

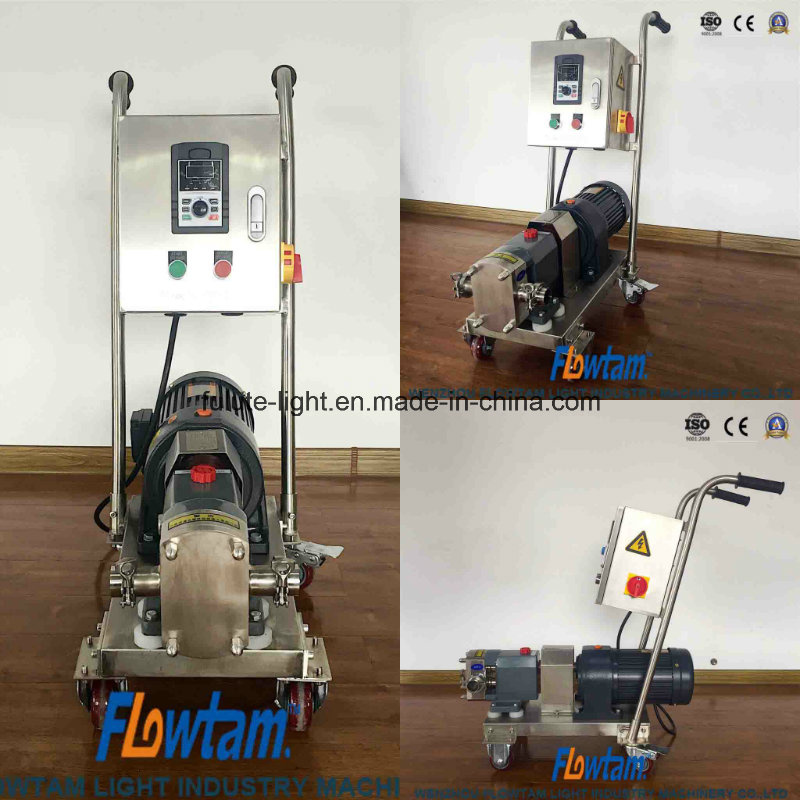

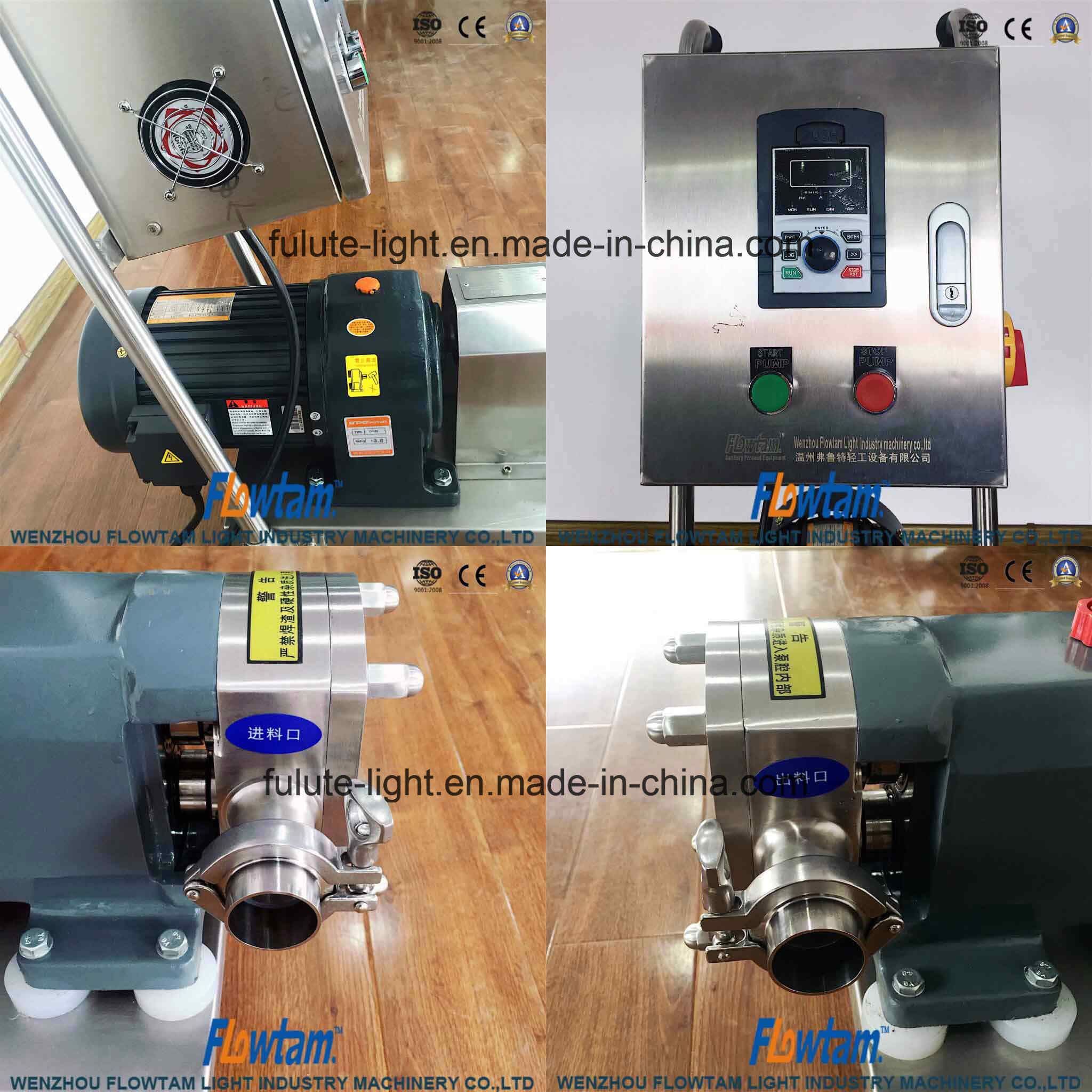

Top Quality Stainless Steel Rotary Lobe Pump

Top Quality Stainless Steel Rotary Lobe Pump
Price: US $ 300-5000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: FLT-R01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Flow: 0-43t/H
Motor: Made in China, , Nord
Voltage: Can Be Design
Export Markets: Global
Material: Stainless Steel
Structure: Gear Pump
Power: Electric
Type: Positive-Displacement Pump
Application: Chemical Pump
Theory: Rotary Pump

Product Description

Rotary lobe pump lobe pump rotor lobe pump

Technical parameters:
As the rotors rotate, the spaces between the lobes and the casing are successively
filled with fluid, which is transported to the discharge nozzle with a fixed amount of
displacement. The pumped fluid forms a continuous stream thanks to the tolerances
between the lobes and the pump casing, thus ensuring an efficient pumping.

Application
Rotor Pump is wildly used to transfer viscous media in food- processing, Cosmetics and
chemical industry etc.

Design and features
Different Connection type: Welding; Thread; Clamp
Different connections standard: DIN, SMS, JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.4 um.
Outside surface finishing Mirror polished

Options
Heating chamber (Jacket)
Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
Cooled or double mechanical seal.
Motors with additional protection. (movable, Explosion proof).
Trolley and/ Switchboard with invertor



lobe pump
Model
(L)
Capacity / per centum Rotate
(RPA)
Speed
(L/H)
Flow
(KW)
Power
BLS-33L200-500300-8000.55
BLS-66L200-500650-16000.75
BLS-88L200-500850-21601.5
BLS-1212L200-5001300-32002.2
BLS-2020L200-5002100-54003
BLS-3030L200-4003200-64004
BLS-3636L200-4003800-76004
BLS-5252L200-4005600-110005.5
BLS-6666L200-4007100-140007.5
BLS-7878L200-4009000-180007.5
BLS-100100L200-40011000-2200011
BLS-135135L200-40015000-3000015
BLS-160160L200-40017000-3400018.5
BLS-200200L200-40021600-4300022

Feel Free To Contact Us For More Details And Welcome To Visit Our Factory!
Wenzhou Flowtam Light Industry Machinery Co., Ltd. Established in 1995, Located in BinHai Industrial Zone. With 17 year manufacturing experience. We have a product range incluing Stainless steel tank, Stainless steel pumps, Stainless steel valves and pipe fitting.

Our products are mainly applied in the fields like dairy, food, beer, medicine, biology, chemical, beverage, food and cosmetics industries etc.

In 2012, Our mixing pump have been approved by CE certificate. Form our frist export transaction in 2006, We have sold our products in many foreign countries, such as USA, Newzealand, Australia, Indonesia etc.
