Product Description
Passive leak: Manual up tight, passive leak
Leak rack load: 3.5T
Rack: Using 250H steel welding
Forming Machine-driven feeding frame Type: Side roller
Forming Machine type: Panel type chain-drive,
Panel thickness: 13mm
Shaft Diameter: 72 mm
Chain: 0.6-inch single-row
Forming Motor Power: 3KW
Speed Reducer Forming Machine speed: 8m/min
Forming Machine Road Number: 11 Roll
Material: High quality 45# steel-forged pieces
Hydraulic station motor: 3kw
Hydraulic Pump Station: Gear pump
Cutting method: Hydraulic shear
Scissors film forming material: Cr12
Shearing blade Heat treatment: HRC58° -60°
Rolling thickness: 0.3 - 0.8 mm
Material Expand Width: 1000mm
Specified Length Accuracy: ± 2mm
The computer use of PLC, TaiwanDelta, computer operation

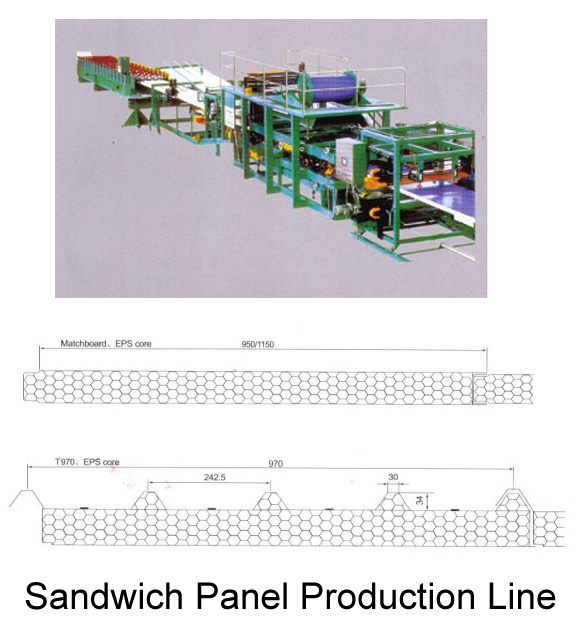

Sandwich panel Roll Forming Machine
Parameter: |
|
1.Suitable to process:Colored Steel plate, galvanized board |
|
2.Width of the plate:1250mm |
|
3.Rollers:14-16rows |
|
4.Rolling material: Forging Steel 45# |
|
5.Rolling galvanization thickness:0.05 mm |
|
6.Material of the cutting blade :Cr12 |
|
7.Hydraulic oil :40# |
|
8.Dimensions:25.6*1.45*1.51m |
|
9.Power:32kw |
|
10.Thickness of the plate:0.3-0.6mm |
|
11.Productivity:4-5m/min |
|
12:Diameter of the roller:70mm |
|
13.Weight:About 19T |
|
14.Voltage:380V 50Hz |
|
15. Processing precision : within 1.00mm |
|
16. Equipment components: Man-made uncoiler,Roll forming machine,compture control system,hydraulic control system,press forming,cutting |
|
17.Transportation:one complate equipment need one 40feet container to hold |
|
18.Delivery Time:30%deposit,and balance before delivery |
|
19.This products is widely used in various of industral building,warehouse,heat house inside and outside wall and bottom board for compound roof tile,and also used in billboard and fencing for building.This machine is compose of feeding table,forming machine,forming cutting device,hydraulic system,computer control system.Optional device include commen decoiler,hydraulic uncoiler and aoto stacker. |
