| Price: | US $ 200set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1set |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | DY-P-03 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Impeller: | Open Impeller (New Design) |
| Mechnical Seal: | Mechnical Seal |
| Motor: | ABB/Siemens/Chinese Brand |
| Connection: | Weld/Clamp/Thread/Union |
| Motor Cert: | UL Motor |
| Pump Cover: | Square/Round |
| Working Pressure: | Low Pressure Pump |
| Position Of Pump Shaft: | Horizontal Pump |
| Impeller Number: | Single-Stage Pump |
| Influent Type Of Impeller: | Open Impeller |
Applications

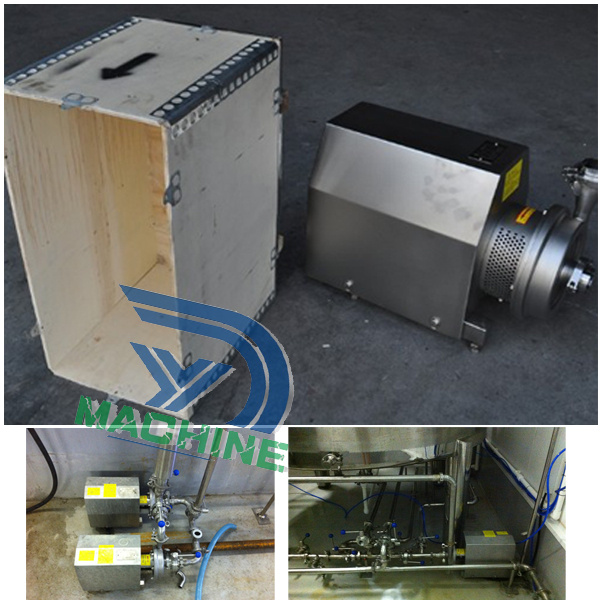

Our pump is a highly efficient and economical centrifugal pump, which meets the requirements of sanitary and gentle product treatment and chemical resistance. It is available in nine Sizes, KS-5, -10, -15, -20, -25, -30, -35, -40, -45...
Standard design
Our pump consists of a standard motor, stub shaft, mechanical compression coupling (KS-5 with pin bolts), adaptor, back plate, impeller, pump casing and shaft seal. Our pump is designed for CIP withemphasis on large internal roundings and cleanable seals. The sanitary stainless steel cover for protection of the motor, and the complete unit is supported on four adjustable stainless steel legs and Shaft seals. The pump may also be equipped with a double mechanical shaft seal.
Features:
Motor: 0.55-22Kw(KS)
Impeller: Open type(KS)
R/minjkl speed: 2900rpm(50Hz)
3600rpm(60Hz)
Flow: 1.5-120m3/h(KS)
Lift: 75m(KS)
MAX pressure: 7Bar(Ks)
MAX temperature: 120°C/248°F
Connection: Clamp, Thread, Flange, Welding
Standard: DIN, SMS, 3A, ISO, IDF, RJT
Design and Standard:
Design based on 3A hygienic standard
Adjustable stainless steel leg
Mechanical seal: single mechanical seal
Flushed single mechanical seal
Flushed double mechanical seal
Material:
Motor housing: Cold rolled stainless steel plate
Investment casting impeller: AISI 304/316L
Contact parts with material: Viton, EPDM
Gasket: SSC-Sic/EPDM
Internal surface: Ra≤0.8um
External surface: mirror polish
Technical data:
STRUCTION:
FLOW CHART:
