| Prod Model: |
BLS Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| MOQ: |
1unit |
| Material: |
Ss304 or Ss316L |
| Flow: |
0-80t/H |
| Power: |
0.75-18.5kw |
| Working Pressure: |
Low Pressure Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
| Impeller Number: |
Multistage Pump |
| Influent Type Of Impeller: |
Single Suction Pump |
Product Description

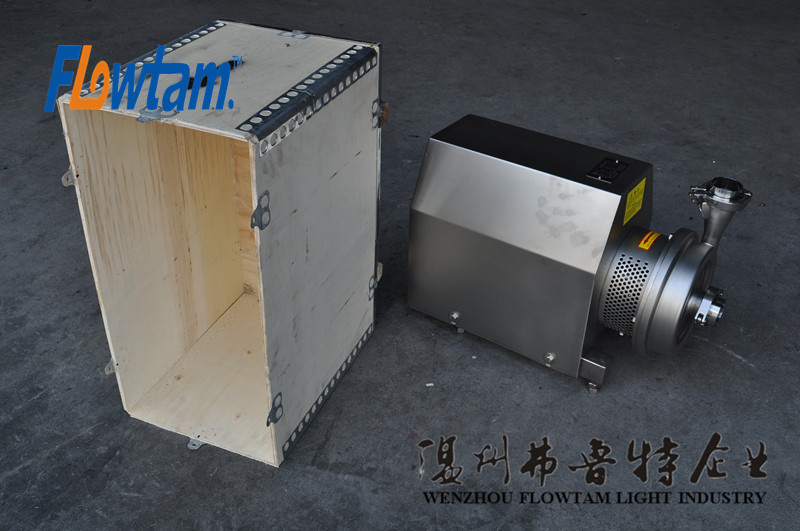

Food grade centrifugal pump, Juice pump
Mechanical Seal 304 OR 316 SS
Work method: Centrifugal pump in sanitary design
Product Name
Juice pump
Food grade centrifugal pump, Juice pump meets the highest sanitary requirements for use in the food-processing and pharmaceutical, dairy, milk, bear industries.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options Sanitary centrifugal pump can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Design and features of Juice pump
Different Connection type: Welding; Thread; Clamp
Different connections standard: DIN, SMS, JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.4 um.
Outside surface finishing Mirror polished
Options
Mechanical seals in SiC/C, SiC/SiC or TgC/SiC.
Cooled or double mechanical seal.
Motors with additional protection. (movable, ABB Explosion proof).
Trolley and/ Switchboard with invertor
|
Model |
(t/h)
Flow |
(M)
Head |
(KW)
Power |
(mm)
Inlet/Outlet Diameter |
Remarks |
|
BLS-3-15-0.75 |
3 |
15 |
0.75 |
38/32 |
ABB |
|
BLS-3-20-1.1 |
3 |
20 |
1.1 |
38/32 |
ABB |
|
BLS-5-24-1.5 |
5 |
24 |
1.5 |
51/38 |
ABB |
|
BLS-5-32-2.2 |
5 |
32 |
2.2 |
51/38 |
ABB |
|
BLS-10-24-2.2 |
10 |
24 |
2.2 |
51/38 |
ABB |
|
BLS-10-32-3 |
10 |
32 |
3 |
51/38 |
ABB |
|
BLS-15-24-3 |
15 |
24 |
3 |
51/51 |
ABB |
|
BLS-20-24-4 |
20 |
24 |
4 |
51/51 |
ABB |
|
BLS-20-35-5.5 |
20 |
35 |
5.5 |
63.5/51 |
ABB |
|
BLS-30-24-5.5 |
30 |
24 |
5.5 |
63.5/51 |
ABB |
|
BLS-30-35-7.5 |
30 |
35 |
7.5 |
63.5/51 |
ABB |
|
BLS-40-24-7.5 |
40 |
24 |
7.5 |
76/63.5 |
ABB |
|
BLS-50-24-7.5 |
50 |
24 |
7.5 |
76/63.5 |
ABB |
|
BLS-50-35-11 |
50 |
35 |
11 |
76/63.5 |
ABB |
|
BLS-80-30-15 |
80 |
30 |
15 |
89/76 |
ABB |
|
BLS-80-40-18.5 |
80 |
40 |
18.5 |
102/89 |
ABB |
Wenzhou Flowtam Light Industry Machinery Co., Ltd. Established in 1995, Located in BinHai Industrial Zone. With 17 year manufacturing experience. We have a product range incluing Stainless steel tank, Stainless steel pumps, Stainless steel valves and pipe fitting.
Our products are mainly applied in the fields like dairy, food, beer, medicine, biology, chemical, beverage, food and cosmetics industries etc.
In 2012, Our mixing pump have been approved by CE certificate. Form our frist export transaction in 2006, We have sold our products in many foreign countries, such as USA, Newzealand, Australia, Indonesia etc.
