| Prod Model: |
SB28-220-1100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
380V 50Hz |
| Cutting System: |
Hydraulic Shearing System |
| Control System: |
Automatic CNC Control |
| Warranty: |
12 Monthes |
| Type: |
Building Machine |
Product Description

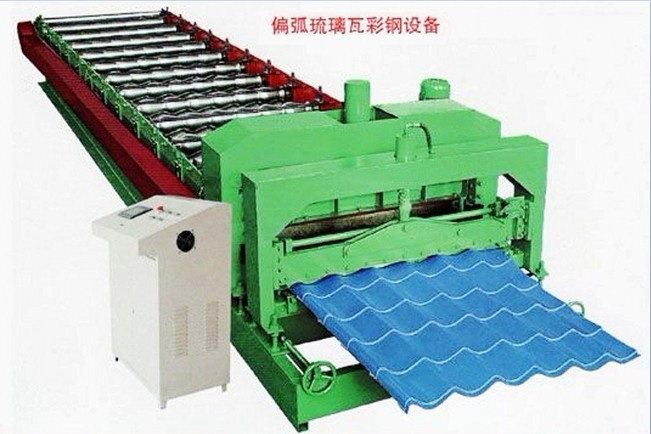

Sb1100 roll forming machine made in China
Technical specifications
Forming size 6000mm*1500mm*1200mm
Feeding width 1250mm
Equipment weight 3.5t
Material of shaft 45#steel adjustable treatment
Out diameter of shaft φ 80mm
Material of roller Cr12, quenched treatment HRC58-60Degrees Celsius
Number of forming rollers 13 rows
Main frame 350 H steel
Thickness of medium plate 12mm
Transportation system Chain transportation
Thickness of chain 1.2 inches
Main motor power 3 KW
Pump station power 3 KW
Forming speed 8000-10000mm/min
Rolling thickness 0.3-0.8mm
|
Material of blade |
Cr12, heat treatment 60-62Degrees Celsius |
|
Shearing system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil : 40# |
Electrical system
|
Screen display |
5.7 inches Delta touch screen |
|
Main computer control cabinet |
It adopts industrial computer to control. The target piece’ s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand isEURA
The seller should provide Chinese and English language screen. |
4. Supply Ability
Packaging |
Maid body of the machine naked into the containers, covered with plastic film, spear parts in the wooden box. |
|
Delivery |
Within in 45 working days received deposit |
