| Prod Model: |
various size |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
15'' |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Flexible Shaft |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Stepped Shaft |
Product Description

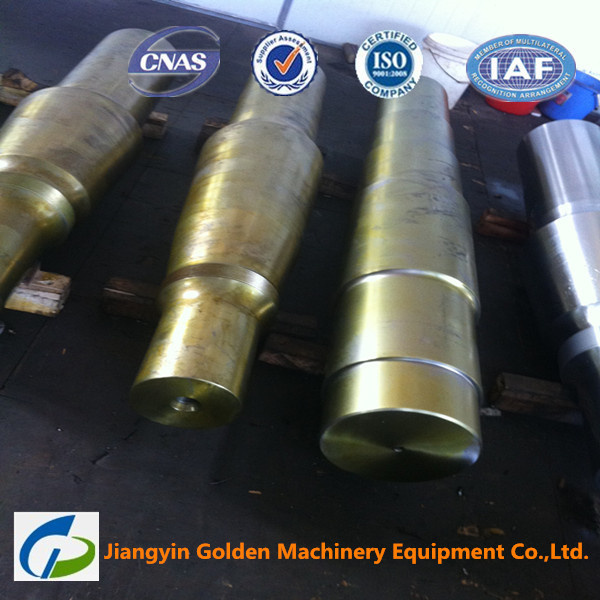

Name: SCM415/430/440 forged steel shaft
Product Desciption
Features:
Big Size shaft and working shaft
Standards: ASTM, ASME, DIN, JIS and EURONORM
Certification: ISO9001: 2000, PED, SGS
Materials: Carbon, stainless steel and alloy steel
The maximum weight: 35 tons
The maximum length: 16 meters
Delivery Status: N + T (Normalizing + Tempering)
Free forging capacity: 3000 ton per month
Customers' designs welcomed
The Chinese say the good: We have friends all over the world
We are JiangYin Golden Machinery forging company of jiangsu province of China.
Below is our company simple presentation and we hope to have cooperation chance with you.
| Wind Turbine Shaft | 42CrMo4, 34CrNiMo6 |
| Marine Shaft | C-Mn steel |
| Hydro Turbine Shaft | 20SiMn |
| Roller Shaft | 70Cr3Mo; 9Cr2Mo; MC1; MC2; MC3 |
| Gear Shaft | 17CrNiMo6; 18CrNiMo7-6; 20CrNi2Mo; 42CrMo; 47CrNiMo6, 20CrMnMo |
| Gear | 17CrNiMo6; 18CrNiMo7-6; 20CrNi2Mo; 42CrMo; 47CrNiMo6, 20CrMnMo, 30 CrNiMo6 |
| Pressure Vessel Forgings | SA105, SA350 LF2, 16Mn, 20MnMo, 15MnMo, 12Cr2Mo1, 14Cr1Mo, 42CrMo, F304, F316, 17-4PH, 4330, 4336, 4340 |
| Ring Rolling | 16Mn, 50Mn, 42CrMo, 15MnV, 35CrMo, A105, 20#, 304, 304L, 316, 316L |
Our company have 4, 500 tons, 2000 tons of oil hydraulic press, 3800NC ring-rolling mill and nondestructive inspection equipment as well as other machining equipments.
We have been produced many various of excellent forging parts for different industry like wind turbine shafts, ship shafts, heavy gears, flanges, ring pieces, all kinds of forging parts etc.
If you have free, please know our company more information.
I wish to create business cooperation relation with your company in the future.
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection
Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
Material
Alloy steel or stainless steel
Material standard
ASTM or GB/T3077-1999
Specification
As per specified requirements
Weight
Max. 250 ton
Smelting Process:
EF+LF + VD+VC
Process
Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection
UT standard
EN10228, ASTM A388 or JB/T 5000.15-1998
Competitive Advantage:
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
