| Prod Model: |
ZYYX60-305 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Size: |
7500*1400*1600mm |
| Certificate: |
ISO,CE,Soncap |
| Machine Color: |
Made-to-Order |
| Delivery Time: |
About 50days |
| Machines Weight: |
About 7t |
| Controlling System: |
Mitsubishi PLC & Converter |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

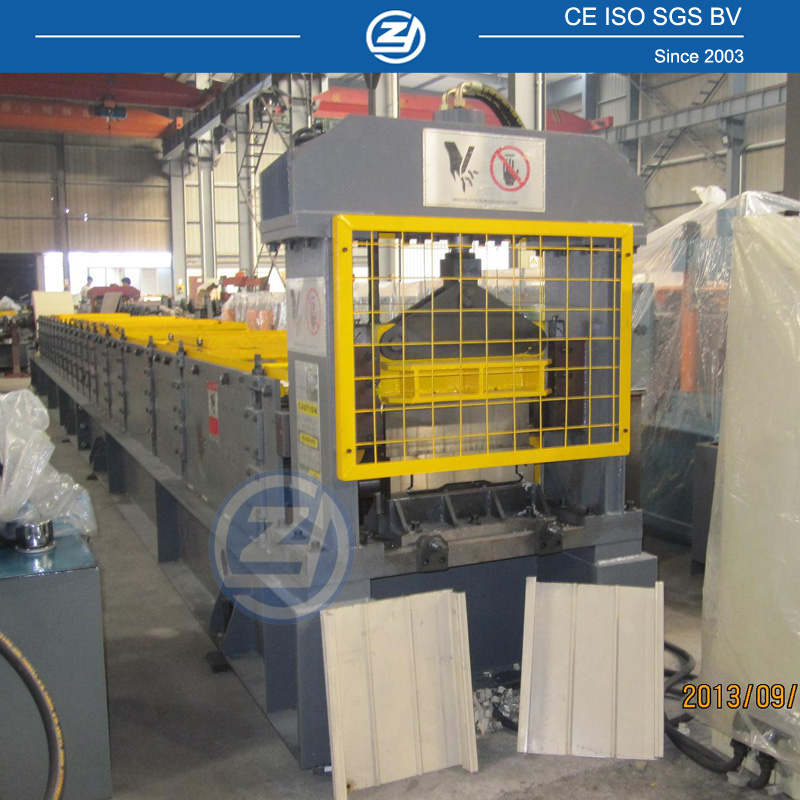

Seaming Forming machine
This roll forming machine consist of uncoiler, guiding equipment, roll forming system, hydraulic system, Cutting system, PLC control system and support table
About roll forming machine
1. Material: Color steel sheet
2. Yield strength: 235Mpa
3. Thickness: 0.4-0.5mm
4. Forming Speed: 15m/min.
5. Main motor power: 5.5Kw(Depend on final design)
6. Hydraulic station power: About2.2Kw (Depend on final design)
7. Manual decoiler Max. Capacity: 5000kgs
8. Power 380V/3Phase/ 50Hz
9. Roller Material: High grade No. 45 forged steel. Plated with 0.05mm hard chrome.
10. Active Shaft Material: High grade No. 45 carbon wrought steel.
11. Cutter blade: Cr12 mould steel with quenched treatment
12. Electric Elements: Mitsubishi PLC & transducer from Japan.
13. Technician can be sent to your factory to install the machine and train your workers
Parameters table
| Item | Specification |
| Material | Type | Pre-painted steel coil & galvanized coils |
| Thickness (mm) | 0.4-0.5 |
| Yield strength (mpa) | 235-345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 15 |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mold steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power (kw) | 5.5 kw (Depend on final design) |
| Hydraulic station power | 2.2 kw (Depend on final design) |
| Total power (kw) | 7.7 kw |
| Uncoiler's loading capacity | Max. Capacity: 5000kgs (can be increased to be 10T) |
| Machine`s size | About 7.5*1.4*1.6m (Depend on final design) |
Components of machine |
Decoiler
(manual decoiler and hydraulic decoiler for option) | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table (auto. Stacker for option) | 1set |
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting – Product to Run Out Table |
