| Prod Model: |
ZYYX Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Size: |
5000*1000*1400mm |
| Machines Weight: |
About 5t |
| Shaft Diameter: |
55mm Solid Steel |
| Certificate: |
ISO,CE,Soncap |
| Original Brand Name: |
Zhongyuan |
| Main Motor: |
5.5kw |
| Controlling System: |
Mitsubishi PLC & Converter |
| Operation Language: |
English or as Per Client`S Required |
| Rollers Material: |
No.45 Forged Steel, Plated with Hard Chrom |
| Cutter Material: |
Cr12 Mould Steel Being Quenched Treatment |
| Forging Forming Method: |
Cold Roll Forming |
Product Description

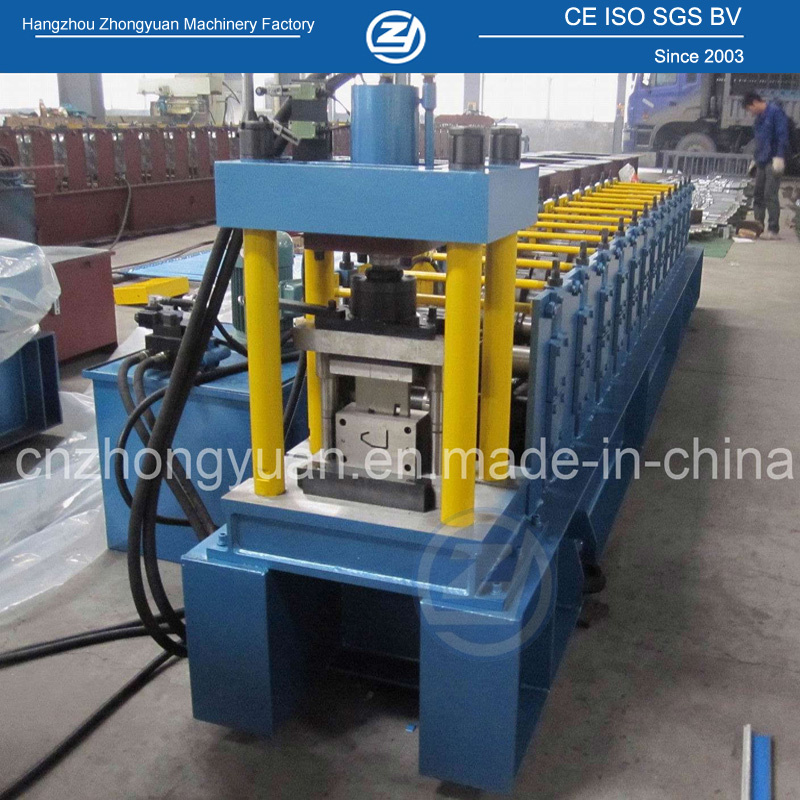

Sector-shaped Roll Forming Machine with ISO
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime seivices
3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
Machine components:
Roll forming machine consists of uncoiler, coil sheet guiding device, main roll forming system, punching device, cutting device, Hydraulic station, PLC control system and support table.
| Item | Specification |
| Type | Color steel sheet or galvanized steel sheet |
| Material | Thickness(mm) | 0.4-0.6 |
| Yield strength(mpa) | 235 -345 |
| Roller material | 45#Chrome steel |
| Forming speed(m/min) | About 20 |
| Speed adjusting mode | AC Frequency |
| Roller drive | Decelerating motor + Chain drive |
| Cutting mode | Hydraulic cutting |
| Cutter material | Cr12 mold steel |
| Length measurement | Encoder |
| Control mode | Mitsubishi PLC |
| Operating mode | Button + Mitsubishi Touch screen |
| Main motor power(kw) | 5.5KW (Depend on final design) |
| Hydraulic station power | 2.2K W (Depend on final design) |
| Total power(kw) | 7.7KW |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs |
| Machine`s size | About 8*1.5*1.4m (Depend on final design) |
| Machine weight | About 3000kgs |
| Process flow: |
| Decoiling the sheet → Leveling sheet → Roll forming → Measure length and cutting → the product to the supporter |
Controller:
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
