| Prod Model: |

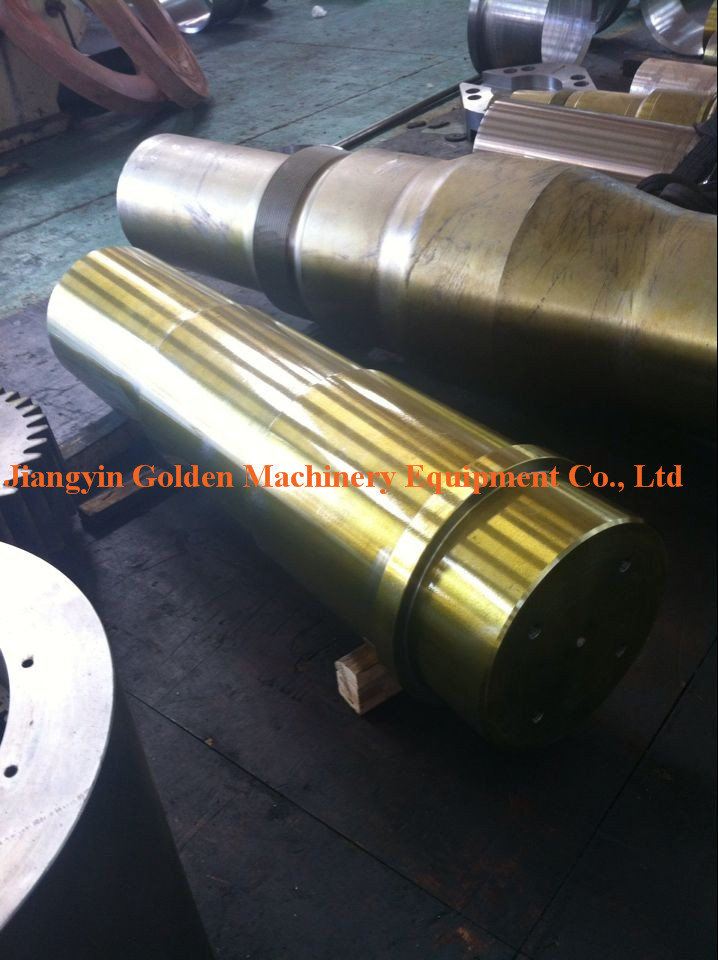

Shaft Forging High Quality Steel |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2'' to 500'' |
| Name: |
High Quality Shaft Forging |
| Molding Style: |
Forging |
| Processing Object: |
Metal |
Product Description
Basic data:
| Tooth Trace: | In-volute |
| Material: | 20CrMnMo/42CrMo |
| Process: | Forging+Carburizing+Grinding Teeth |
| Pressure Angle: | 20° |
| Quality Level: | DIN 6 |
| Type: | M=5,Z=73,a=20°,β=12°,x=-0.2,Right Hand; |
| Brand: | NYY |
| Max N.M: | 17127 |
| Total length mm: | 621 |
Products Information:
Our main products:spur gear,helical gear,gear ring,synchronous pulley,shafts,planetary reducer,slewing bearing and so on.
Products main application fields:wind power industry,mining machinery industry,air compressor industry,food and feed process machinery industry,precision machinery industry ,textile machinery industry and so on.
Our Feature:
？ In-house capability:OEM service as per customers' requests, with in-house tooling design & fabricating
？ Professional engineering capability:on product design, optimization and performance analysis
？ Manufacturing capability range: DIN 3960 class 8 to 4, ISO 1328 class 8 to 4, AGMA 2000 class 10-15, JIS 1702-1703 class 0 to 2, etc.
？ Packing: Tailor-made packaging method according to customer's requirement
？ Delivery:Just-in-time delivery capability
Primary Competitive Advantages:
？ Manufacturer of gears since 1993
？ Experience in Cooperate with Fortune 500 Companies
？ Stable Quality
？ Reasonable Price
？ Continuous Improvements
？ High Product Performance
？ Professional Service
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection
Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
Material
Alloy steel or stainless steel
Material standard
ASTM or GB/T3077-1999
Specification
As per specified requirements
Weight
Max. 250 ton
Smelting Process:
EF+LF + VD+VC
Process
Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection
UT standard
EN10228, ASTM A388 or JB/T 5000.15-1998
Competitive Advantage:
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
