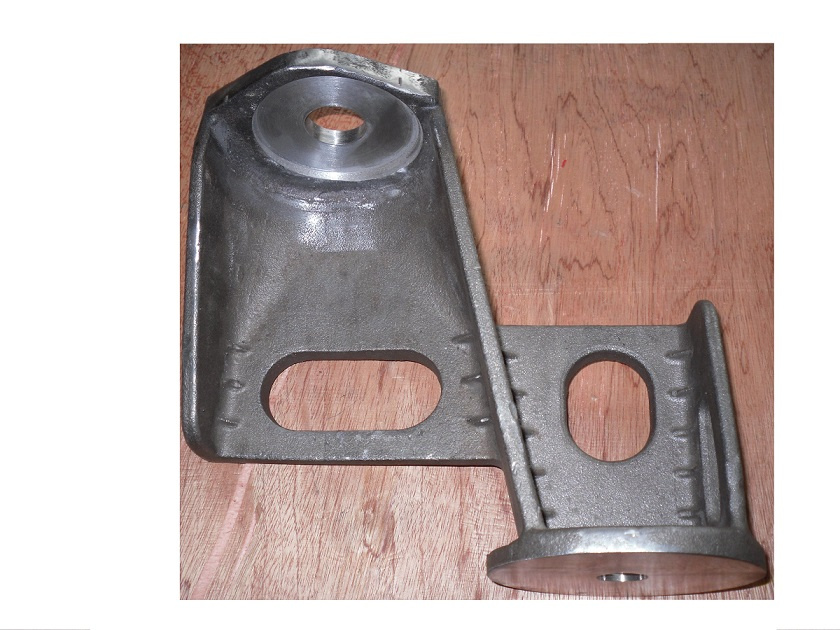

Shock Absorption Support for Bus Steel Casting

Prod Model:	DIN STANDARD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Technical Spec.:	Tolerance:Ct8 Roughness:Ra12.5~6.3 Mass:up to 80kg
Material:	Alloy Steel
Surface Preparation:	Sand Blast
Molding Technics:	Waterglass
Casting Method:	Waterglass

Product Description

Qingdao Casting Bright Machinery Co., Ltd. Specialist In Small, Medium and Large Series Steel & Stainless Steel Castings from less than 0.01kgs up to 1500kgs with capacity 18000MT/year experenced from 1995. 1. Name: Shock Absorption Support for Bus 2. Production method:  The Shock Absorption Support for bus is used for bus,so, the safty is the first. This required the strict material,strict mechanical value and strict dimension. It was casted by waterglass casting method and then to machine it by CNC lathe and CNC milling. All dimensions are checked strictly. 3. Machining equipment: CNC Machine, vertical centers, miling machine, lathe     machine. 4. We also can develop other various of steel castings as per the drawing or     samples of customer. 5. Range of Application: Used for bus. 6. Export area: Is  exported to Germany. 7. Capacity: We have two half-automatic casting line which guarantee us to cast     more than 12000MT/year. CHEMICAL ANALYSIS % C Si Mn S P Min 0.17 1.00 N° HEAT Max 0.23 ≤ 0.6 1.50 ≤ 0.015 ≤ 0.02 Actual 0.21 0.41 1.20 0.013 0.017 MECHANICAL ANALYSIS       Yield point Tensile Strength Elongation % Hardness(HB) N/mm2 N/mm2 N° HEAT Requirements   ≥ 240 ≥492 ≥21 / Actual 291 615 23.5 /
