| Prod Model: |
CFS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Iron Alloy |
| Specification: |
50*50*13mm,200*150*15mm,400*250*15mm,etc |
| Ppi: |
10ppi,20ppi,30ppi,40ppi,50ppi,60ppi |
| Thickness: |
11-50mm |
| Color: |
Grey |
| Feature: |
Long Time Materials |
| Type: |
Refractory Material |
| Refractoriness (',℃): |
1770< Refractoriness< 2000 |
| Material: |
Silicon Carbide (',SiC) |
| Shape: |
Rectangle, Round, Square |
Product Description

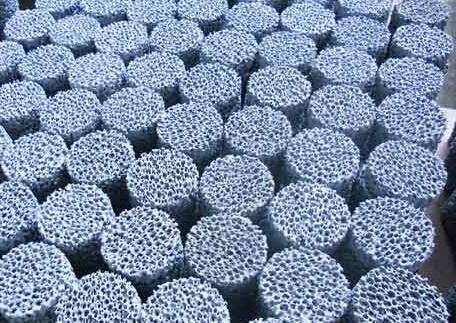

SiC Ceramic Foam Filter
SiC ceramic foam filter is mainly used for filtration of SiC and SiC alloys in foundries and cast houses. With their excellent thermal shock resistance and corrosion resistance from molten aluminum, they can effectively eliminate inclusions, reduce trapped gas and provide laminar flow, and then the filtered metal is significantly cleaner. Cleaner metal results in higher-quality castings, less scrap, and fewer inclusion defects.
We have distributed ceramic foam filter which is used for filtration of grey and nodular cast iron and copper alloys. It is made from high quality ceramic materials, whose main components are SiC, Al2O3, ZrO2 etc. Our products have superior performance for removing the mass in the molten metal liquid and also the tiny inclusion to improve the composition structure. Also it reduces the content of gas and poisonous element in the metal liquid.
Advantages
*Reduce defective rate of castings
*Improve mechanical properties of castings
*Reduced costs of finishing operations
*Simplify pouring systems and increase utilization ratio of mold
|
Material |
ZrO2 |
SiC |
Al2O3 |
|
Colour |
Yellow |
Sage green |
white |
|
Aperture (ppi) |
4~60 |
4~60 |
4~60 |
|
Cell-opening ratio(%) |
80~90 |
80~90 |
80~90 |
|
Operating temperature(celsius degree) |
1680 |
1500 |
1100 |
|
Porosity(≥%) |
80 |
80 |
90 |
|
Compression Strength(MPa) |
1.5 |
0.8 |
0.7 |
|
Density(g/cm3) |
0.55-0.80 |
0.40-0.80 |
0.46-0.80 |
|
Thermal Shock Resistance(1100-20celsius degree) |
>6 times |
>6 times |
>6 times |
|
application |
steel |
iron |
Non-ferrous,Alumina |
|
No. |
Size (mm) |
Flow velocity (Kg/s) |
Filter capacity (Kg) |
|
Gray castiron |
Ductile castiron |
Gray castiron |
Ductile castiron |
|
1 |
30×50×22 |
2~4 |
1~3 |
45~60 |
15~30 |
|
2 |
40×40×11 |
2~4 |
1~3 |
45~60 |
15~30 |
|
40×40×13 |
2~4 |
1~3 |
45~60 |
15~30 |
|
40×40×22 |
2~4 |
1~3 |
45~60 |
15~30 |
|
3 |
50×50×13 |
3~6 |
2~4 |
55~90 |
25~45 |
|
50×50×22 |
3~6 |
2~4 |
55~90 |
25~45 |
|
4 |
60×60×22 |
4~8 |
3~5 |
65~110 |
40~75 |
|
5 |
66×66×22 |
5~9 |
4~6 |
80~130 |
45~80 |
|
6 |
75×50×22 |
4~8 |
5~7 |
65~110 |
40~75 |
|
7 |
75×75×22 |
9~14 |
6~9 |
145~220 |
70~100 |
|
8 |
Φ50×22 |
3~5 |
1~3 |
50~70 |
20~40 |
|
9 |
Φ60×22 |
3~6 |
2~4 |
65~110 |
35~60 |
|
10 |
Φ70×22 |
4~8 |
3~6 |
75~130 |
40~75 |
|
11 |
Φ76×22 |
5~9 |
4~7 |
90~150 |
45~80 |
|
12 |
Φ90×22 |
10~15 |
6~9 |
180~260 |
75~110 |
|
13 |
100×50×22 |
8~12 |
5~8 |
130~200 |
65~90 |
|
14 |
100×60×22 |
9~14 |
6~9 |
180~260 |
70~100 |
|
15 |
150×100×22 |
18~25 |
12~16 |
300~ 400 |
150~210 |
|
16 |
150×150×22 |
35~50 |
24~36 |
400~ 900 |
300~450 |
