Single Deck Roof Panel Forming Machine (XF24)

Single Deck Roof Panel Forming Machine (XF24)
Price: Negotiableset
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T
Prod Model: XF24
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Port: Tianjin New Port
Color: Blue
Process Precision: Within1.00mm
Forging Forming Method: Roll Forming Machine

Product Description

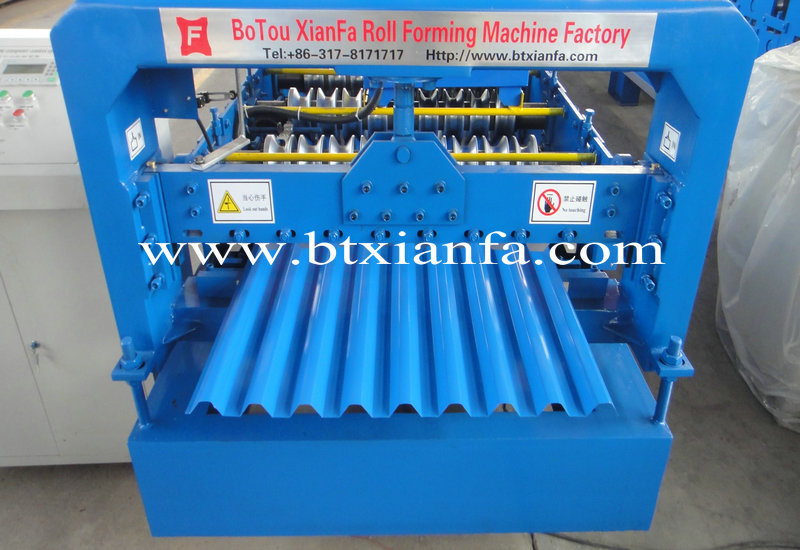

Single Deck Roof Tile Forming Machine

Application

This type of sheet can be widely used in plant, house, storage and simple
steel roof and wall. It has advantage of pretty appearance, durable using and so on.


Single Deck Roof Tile Forming Machine


Quick Detail
1.Suitable to process: Color steel plate
2.Width of the plate: 940mm
3.Rollers: 17 rows
4.Dimensions: 8.2*1.45*1.51m
5.Power: 3+3kw
6.Rolling material: high grade 45# steel(plated chrome on surface)
7.Thickness of the plate:0.3-0.6mm
8.Voltage: 380V 50Hz 3phases
9.Material of the cutting plate: Cr12
10.Hydraulic: 40#
11.Processing precision: Within 1.00mm
12.Control system: PLC control

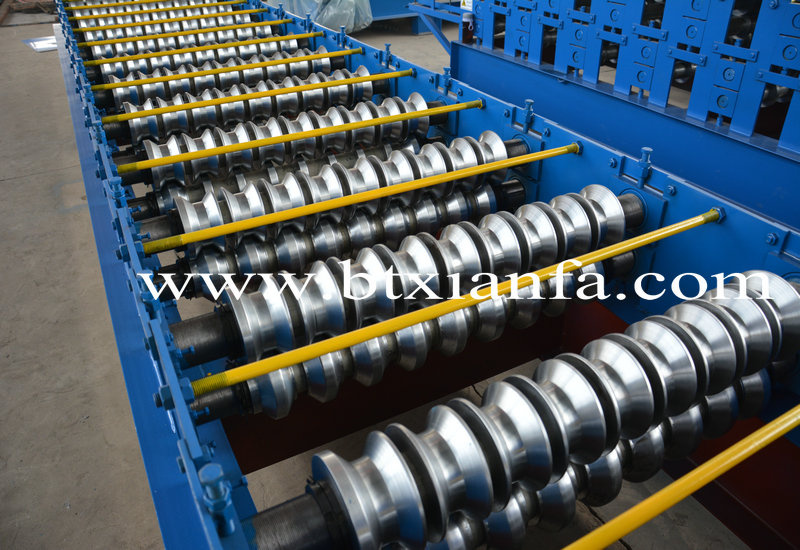

Single Deck Roof Tile Forming Machine Rollers


Rolling material: high grade 45# steel(plated chrome on surface)

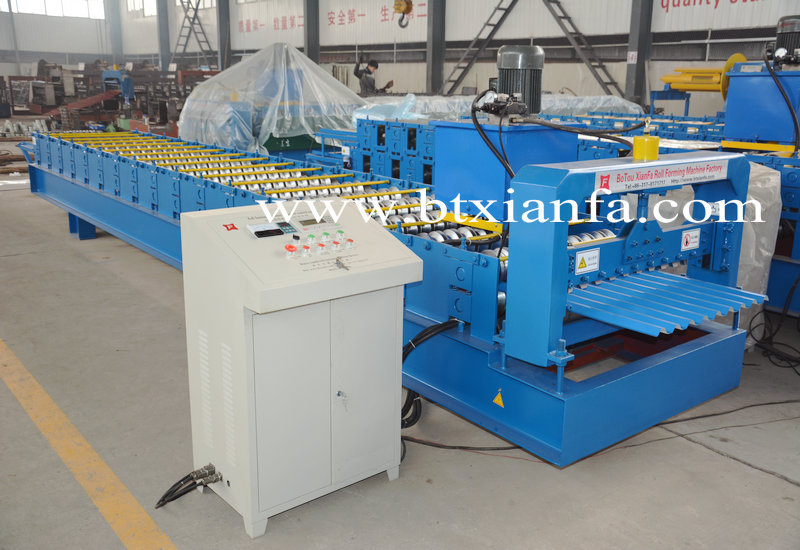

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- press form-cutting

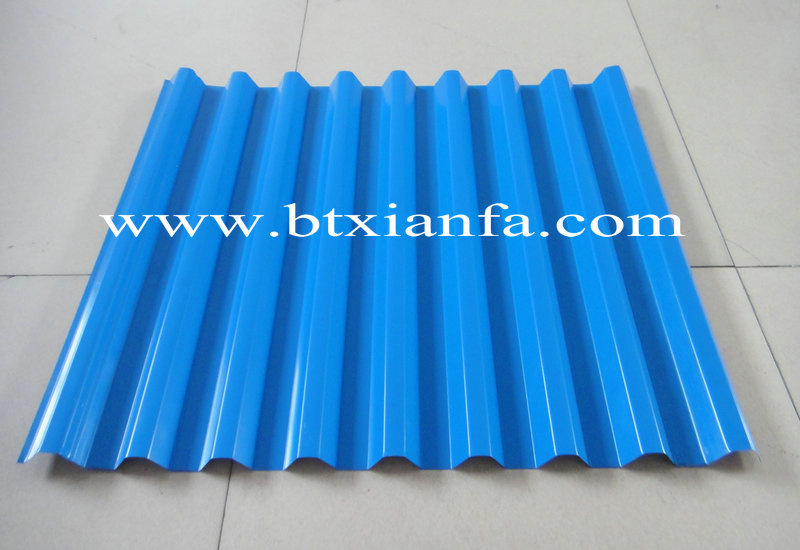

Single Deck Roof Tile Forming Machine Production Sample


We have a professional design team
Can also design and manufacture according to customer's requirement.


Competitive Advantage

1. CE certification
2. hydraulic motor drive
3. Exported to more than 70 countries
4. suitable for various kinds of steel plate
5. voltage according to customer request

No. main parameter of Single Deck Roof Tile Forming Machine
1 Suitable to process Color steel plate
2 Width of the plate 940mm
3 Rollers 17 rows
4 Dimensions 8100*1450*1510mm
5 Power 3+3kw
6 Thickness of the plate 0.3-0.6mm
7 Productivity 8-10m/min
8 Diameter of the roller Φ 70mm
10 Voltage 380V 50Hz 3phases
11 Rolling material Forging Steel 45#
12 Material of the cutting plate Cr12
13 Hydraulic 40#
14 Processing precision Within 1.00mm

Botou Xianfa Roll Forming Machine Factory
It is established in 1996, specializing in colored steel tile forming machinery. With the development of the economy, colored steel tile is widely used in constuction industory. Therefor customers need not only large quantity but also high quality. Our factory produced many now machinery such as CNCauto forming machine. Colored steel tile forming machine, colored steel tile equipment, colored steel tile machinery, Antique glazed tile line, roof load bearing line, compound board line, roll shutter door forming machine and dainpipe on the basis of nomal roll forming machine. At the same time we also produce Anode pole equipment of ESP, fast guardrail equipment and exc. Our products such as C&Ztype purline machine cutting systom, automatic punching have already reached the advanced level of the other suppiers. Our products cover all over the country and also are exported to Russia, Myanmar, Mongolia, Rumania, Iraq, south Korea, Canada, Mozambique Bahrain, Bolivia, Angola, Paraguay, Turkey, Sri Lanka, etc. Beautifu appearence, reasonable construction, pretty design of the tile won good reputation from colored tile products line and oversea customers.
