Single Girder Gantry Crane and Double Girder Gantry Crane Wheel for Factory

Single Girder Gantry Crane and Double Girder Gantry Crane Wheel for Factory
Price: US $ 500-5000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter: up to 1000mm
Steel Material: 45#, 60#, 65mn, 42 Crmo or Equivalent
Heat Treat: Quenching & Tempering
Hardeness: Hbn305-400
Size: Standard or as Per Requirements
Molding Style: Forging
Processing Object: Metal
Heat Treatment: Quenching & Tempering

Product Description

 Single Girder Gantry Crane and Double Girder Gantry Crane Wheel for Factory

Part 1: Descriptions & Application
Wheels are machine-components with load bearing function.When selecting wheels, we can supply you with a broad variety of options.

Wheels can be separate wheels of diameter 300 to 1000 mm, complete wheel assemblies or as customer drawing or as design proposal approved by customer. They are widely applied on overhead crane, gantry crane, portal crane, transfering Carsetc.

Part 2: Wheel features:
-Material: 60#,65#,65Mn,42CrMo
-Heat treatment:hardening and tempering,high frequency quenching or carburizing quenching -Hardness: HRC45-55
-Depth:15-18mm
-Diameter: Φ300-1000mm

Part 3: Process
-Spectral analysis on raw material
-Cutting as requirments
-Forging with modular
-Surface harden
-Heat treatment
-Rough machining
-Normalizing
-NC machining
-Size detecing
-UT Detection
-Packing and anti rust paint
-Delivery

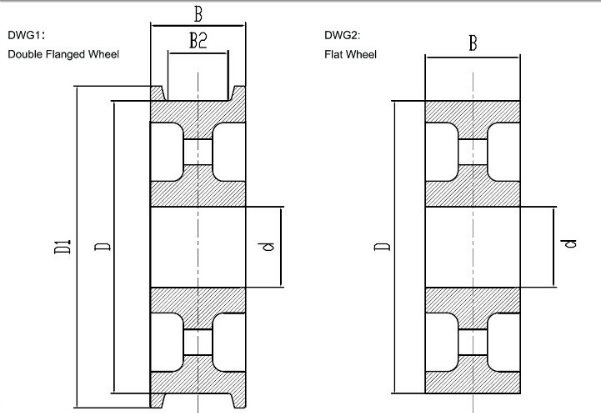

Part4: Sketch & Dimension

WHEEL PRODUCTDIMENSION (mm)
DOUBLE FLANGED WHEELFLAT WHEELDD1dBB2
EBN200AEBN200B20024050-808050
EBN250AEBN250B25030050-10010075
EBN300AEBN300B30035080-11011580
EBN350AEBN350B350400100-125125100
EBN400AEBN400B400450110-130125100
EBN450AEBN450B450500120-150150110
EBN500AEBN500B500550130-160170115
EBN560AEBN560B560610140-170200125
EBN630AEBN630B630680150-180200125
EBN710AEBN710B710760160-230200140
EBN800AEBN800B800850170-250210145
EBN850AEBN850B850900180-250210145
EBN900AEBN900B900950190-250210145
EBN950AEBN950B9501000200-250210145
EBN1000AEBN1000B10001050200-280220145

Zhongyuan Shengqi Co., Ltd is established in 1988. Now it has been in existence for there decades. This time has seen it achieve rapid growth, to become one of the leading manufacturers of Overhead Traveling Crane, Gantry Crane, and Jib Crane, Electric Hoists in China. It now has total asset 54 million US$, with total area 389000m2.

SHENGQI has also been certified as an ISO 9001-2000 company, and follows the highest quality standards. Every crane manufactured by SHENGQI is designed to meet individual customer requirements and work in a large variety of Industries across China and abroad. Cranes manufactured at our factory vary in terms of capacity and design. From five tonnage cranes meant for general duty, to 300 ton cranes which are specially designed as per client specifications. Currently we have the capability to manufacture cranes up to 500 tons.

Our Crane are widely use in the field of Industry, Foundry, Nuclear power, aircraft, automotive, shipbuilding, railway, construction, mining, power insdustry, paper industry, Petro etc, , ,

Ous Sales Amounts reaches 0.7 billion RMB in the year of 2015, and our cranes are widely sold to abt 30 countries, such as Americian, Japan, Korea, Vietnam, India, Indonesia, Britshi, Finland, Argentina, Canada, Pakistan, Thailand etc...

Shengqi is committed to providing you with lifting equipment and services that increase the value and effectiveness of your business.

-Producing durable products that last a long time and perform on the job, exactly as promised.

-Responding to inquiries and requests faster-and with a greater sense of urgencyl

-Embracing your challenges and building solutions to resolve even the most complex problems. L

-Meeting delivery dates, providing support after the sale, and doing exactly what we promised. L

-Being loyal and committed to your success.
