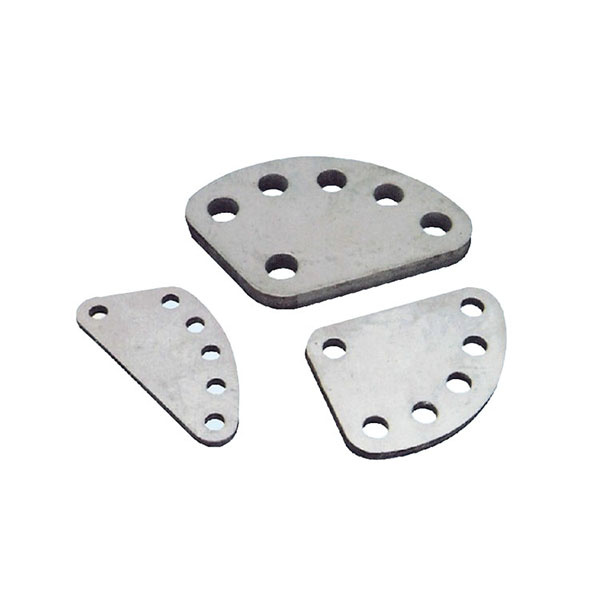

Six Hole dB Type Suspension Use Adjusting Plate

Six Hole dB Type Suspension Use Adjusting Plate
Price: US $ 1-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: DB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin: Fujian, China (Mainland)
Brand Name: Chinet
Material: Hot-DIP Galvanized Steel
Type: dB Suspension Plate
Usage: Overhead Transmission Line
Operate: Easy Installation
Durability: Long
Stability: High
Certificate: ISO9001,SGS
Keyword: Adjusting Plate

Product Description


DB Type Adjusting Plate is suitable for adjusting length of insulator string & conductor of transmission line & electric power substation.



Technical Parameter

                                                                                                                                                                                                                                                                              Unit: mm


Type

Dimension

Nominal Failure Load (KN)

Weight (KG)

C

Φ

L1

L2

L3

L4

L

DB-7

16

18

70

95

120

145

170

70

1.7

DB-10

16

20

80

110

140

170

200

100

2.7

DB-12

16

24

100

135

170

205

240

120

4.0

DB-16

18

26

110

125

140

155

170

160

4.1

DB-21

26

30

120

135

150

165

180

210

7.4

DB-30

32

39

120

140

160

180

200

300

12.5

DB-50

38

45

140

185

230

275

320

500

28.6

DB-60

42

51

135

160

185

210

235

600

31.6

DB-16G

18

26

110

125

140

155

170

160

4.1

DB-21G

20

26

120

150

165

195

210

210

6.8

DB-25G

24

30

120

135

150

165

180

250

7.0

DB-32G

28

33

120

140

160

180

200

320

11.9

DB-42G

32

39

140

185

230

275

320

420

16.5

DB-50G

34

45

140

185

230

275

320

550

17.0

DB-64G

36

45

135

160

185

210

235

640

19.4

DB-84G

36

51

140

170

200

230

260

840

24.8



Tips: made of hot-dip galvanized drop forged steel..



Packaging Details:
Ouside Package: Carton
Cargo Payment: 30% prepayment, balance after completion of product ordered
Terms of Payment: FOB, C&F, CIF from Fuzhou Port;
Delivery Detail:Within 7 days

Founded in 2005, Fujian China Grid Power Technology Co., Ltd lies in the southern coastal city of China -Fuzhou City, Fujian Province with the registered capital of RMB71, 800, 000 Yuan. As one innovative technology-oriented enterprise that specializes in production, research and development of electric power fittings and equipments, we invariably insist on the principle of self-motivation, innovation, quality and high efficiency to shape the vigorous entreprenurship and aspiring core value. Through having a foothold on self-advantage in technology, we focus on new development tendency of energy source and energy saving to probe into high-tech electric power fittings as well as the related specialized product technology and high value-added capability in virtue of taking economic benefit as the center, market demand as the direction, technology innovativeness as the driving force, human capital as the strategy, scientific management as foundation and capital operation as means.

Since establishment, we introduce a great number of experts specialized in electric production, maintenance and project construction, employ some advanced professionals qualified for mechanical design & manufacturing as well as product research & development, forming the multi-class & multi-disciplinary specialists-centered intelligent management teamwork combined research & development with production. Moreover, we also recruit those advanced technicians whom engages in working procedure of fusion, casting, lathing, benchwork, milling and drilling operation as well as skilful workers

Our workshops are equipped with many advanced big-sized digital-controlled lathes and complete metal processing machines, accessing to production of nearly over 100 different voltage-class power lines and transformation electric power fittings like casting, mixture of casting & forging, aluminum and mixture of copper & aluminum (covering 4 biggest series), ranging from 10KV to 500KV. Our electric power fittings & electric appliances are universally utilized in different electric grids, power stations and electric equipment subjected to industrial & mining enterprises, winning unanimous good appraisal from users.

Facing with chances and challenges in the future, we will continue to take scientific & technological development as prerequisite, making an effort to improve product technology while invariably regarding quality as enterprise life. Fulfilling the maxim of "customer satisfaction, user relief", we dedicate ourselves to serving for all users with most secure reliable products.
