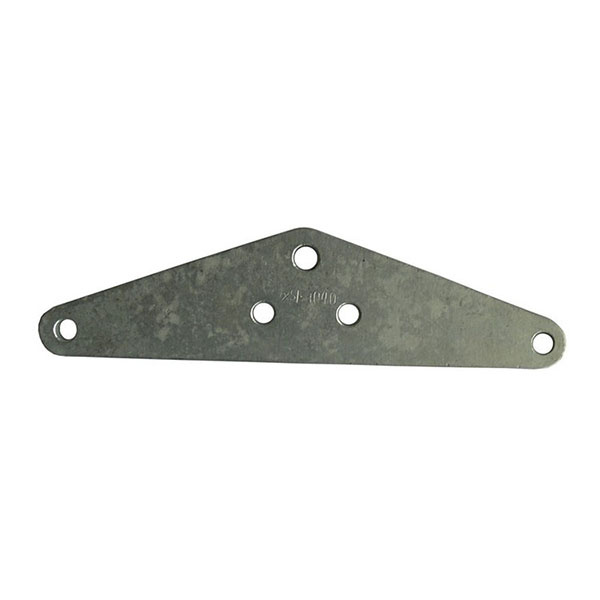

Surface-Smooth Triangle L Type Yoke Plate

Surface-Smooth Triangle L Type Yoke Plate
Price: US $ 1-10/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: L
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin: Fujian, China (Mainland)
Brand Name: Chinet
Material: Hot-DIP Galvanized Steel
Type: L Type Yoke Plate
Usage: Overhead Transmission Line
Operate: Easy Installation
Durability: Long
Stability: High
Certificate: ISO9001,SGS
Keyword: Yoke Plate

Product Description


L Type Yoke Plate is suitable for connection of conductors, ground wire to insulator strings or hanging to the tower.



Technical Parameter

                                                                                                                                                                                                                                                                                 Unit: mm


Type

Dimension

Nominal Failure Load (KN)

Weight (KG)

B

B1

Φ1

Φ2

H

L

L-1040

16

-

20

18

70

400

100

4.5

L-1240

16

-

24

18

70

400

120

4.4

L-1640

18

-

26

20

100

400

160

6.2

L-2140

16

26

30

20

100

400

210

5.6

L-2052

16

26

30

26

100

520

200

8.0

L-2055

16

26

30

24

200

550

200

11.8

L-2540

16

30

33

24

110

400

250

9.0

L-3040

18

32

39

26

110

400

300

10.0

L-4255

24

38

45

30

250

550

420

24.4

L-5040

30

38

45

33

110

400

500

14.8

L-6045

32

42

51

39

200

450

600

25.5

L-6050

32

42

51

39

250

500

600

23.3




Type

Dimension

Nominal Failure Load (KN)

Weight (KG)

B

B1

Φ1

Φ2

H

L

L-1040

18

26

30

24

120

400

200

11.80

L-2160

18

26

30

26

120

600

210

11.80

L-3060

18

32

39

30

140

600

300

16.70



Tips: made of hot-dip galvanized drop forged steel..



Packaging Details:
Ouside Package: Carton
Cargo Payment: 30% prepayment, balance after completion of product ordered
Terms of Payment: FOB, C&F, CIF from Fuzhou Port;
Delivery Detail:Within 7 days

Founded in 2005, Fujian China Grid Power Technology Co., Ltd lies in the southern coastal city of China -Fuzhou City, Fujian Province with the registered capital of RMB71, 800, 000 Yuan. As one innovative technology-oriented enterprise that specializes in production, research and development of electric power fittings and equipments, we invariably insist on the principle of self-motivation, innovation, quality and high efficiency to shape the vigorous entreprenurship and aspiring core value. Through having a foothold on self-advantage in technology, we focus on new development tendency of energy source and energy saving to probe into high-tech electric power fittings as well as the related specialized product technology and high value-added capability in virtue of taking economic benefit as the center, market demand as the direction, technology innovativeness as the driving force, human capital as the strategy, scientific management as foundation and capital operation as means.

Since establishment, we introduce a great number of experts specialized in electric production, maintenance and project construction, employ some advanced professionals qualified for mechanical design & manufacturing as well as product research & development, forming the multi-class & multi-disciplinary specialists-centered intelligent management teamwork combined research & development with production. Moreover, we also recruit those advanced technicians whom engages in working procedure of fusion, casting, lathing, benchwork, milling and drilling operation as well as skilful workers

Our workshops are equipped with many advanced big-sized digital-controlled lathes and complete metal processing machines, accessing to production of nearly over 100 different voltage-class power lines and transformation electric power fittings like casting, mixture of casting & forging, aluminum and mixture of copper & aluminum (covering 4 biggest series), ranging from 10KV to 500KV. Our electric power fittings & electric appliances are universally utilized in different electric grids, power stations and electric equipment subjected to industrial & mining enterprises, winning unanimous good appraisal from users.

Facing with chances and challenges in the future, we will continue to take scientific & technological development as prerequisite, making an effort to improve product technology while invariably regarding quality as enterprise life. Fulfilling the maxim of "customer satisfaction, user relief", we dedicate ourselves to serving for all users with most secure reliable products.
