| Prod Model: |
SB-light steel keel |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type Of The Machine: |
Commonly Used Models or Custom-Made |
| Control System: |
PLC Program Controller |
| Shearing System: |
Hydraulic Shearing |
| Language System: |
Both English and Chinese |
| Suitable For The Rolling Plate: |
PPGI, Galvanized Steel, Lead Plate, Stainless |
| After Service: |
One-Year Warranty, Life-Long Maintenance |
| Type: |
Finishing Machinery |
Product Description
1. CE certificate No: CMHB1203200958
2. A set of dies, can produce3 kinds of models
3. Automatic cutting for length
4. Adopt after-cutting to ensure quality of the productions
5. Voltage: 380V /50Hz /3 phases or at buyer's

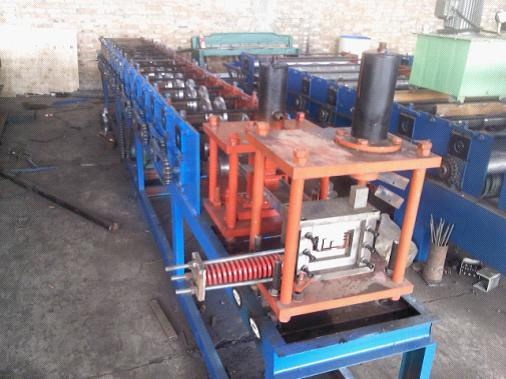

Roll forming machine |
Equipment dimensions |
4000mm*450mm*1200mm |
Equipment total weight |
1.0 T |
Host big frame structure |
Steel welding |
Roll forming row number |
12-16 ranks |
Forming axial material |
45# Steel welding |
Forming axial material |
φ 50 |
Made board |
10mm |
Molding pressure roller materials |
45# Steel hard chromium plating processing |
kind of drive
|
Sprocket chain transmission |
Sprocket chain specifications |
0.6 inches |
Equipment total power |
4.5 KW |
Equipment molding speed |
20m/min |
Rolling material thickness |
0.3-0.8mm |
Suppress specifications |
Based On Customer Demand |
Botou Shibo Machinery Manufacturing Co., Ltd. Founded in 2001, specialized in Design, Manufacture, Installation, Debug of Color Steel Roll Forming Machine, is a private enterprise. With many years experience, we have developed many new products of Profiling Equipment, which rich the Color Steel Profession, make our machinery more reasonable, artistic and practical and obtain the consistent high praise of the new and old customers
Our company specializes in producing and designing each kind of roll forming machine such as roll forming machines for metal roof tiles, wall sheets. While consummating the old model, with the continuous efforts of our scientific researchers, our company developed one after another of Automatic Cutting and Punching C-Type Steel Roll Forming Machine, automatic cutting and punching Z shape roll forming machine, the production line of Glazed Tile Machine in the style of antiquity, Automobile Panel Machine, Guardrail forming machine, shutter door forming machine, which have the advanced technical level
Our equipments keep a foothold in the domestic market, at the same time, we develop international market actively. Having exported our equipment to Europe, Africa, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, and we have received praise from the foreign customers.
The service aim of our company persistence "the quality first, the prestige first" we wish to build the best machine for customers. So our company all employee's enthusiasm welcome the people of different walks of life comes the investigation, talks cooperation
