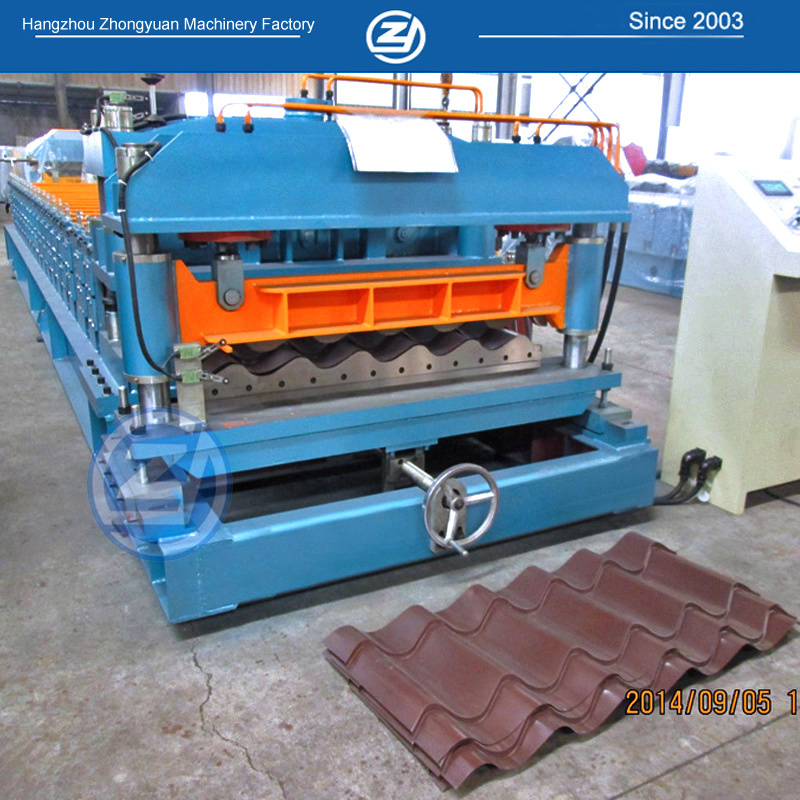

Soncap Longspan Steel Roof Step Tile Roll Forming Machine

Soncap Longspan Steel Roof Step Tile Roll Forming Machine
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: ZYYX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: ISO,CE,Soncap
Size: About 8*1.7*1.5
Machines Weight: About 8.5t
Delivery Time: About 60days
Brand Name: Zhongyuan
Machine Color: Optional
Operation Language: English or as Per Client`S Required
Rollers Material: Cr12 Mould Steel Being Quenched Treatment
Shaft Diameter: 72mm
Name: Step Tile Roll Forming Machine
Forging Forming Method: Cold Roll Forming

Product Description

Soncap Longspan Steel Roof Step Tile Roll Forming Machine

The colored steel tiles produced by this roll forming machine look beautiful, elegant and noble. They are widely used as the roof of garden, factory, hotel, exhibition center and villa, etc.


Machine components:
Decoiler (manual decoiler and hydraulic decoiler for option)    1 set
Feeding & guiding device     1 set
Main roll forming machine    1 set
Hydraulic cutting system     1 set
Controlling system           1 set
Run out table (auto. Stacker for option)       2 pcs

Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table

Data sheet
Technical data
Suitable materialQ235 color steel sheet; 0.4-0.6mm,
Forming speedabout 20m/min
Power RequirementMain motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 5.5Kw(Depend on final design)
Material of forming rollersNo.45 steel, plated with chrome on sureface.
Material of cutter Cr12 mould steel with quench treatment, HRC58-60
Material of shaftHigh quality 45# steel with heat treatment.
Roller grinder milling.
Shaft diameter72mm
Controlling systemMitsubishi PLC & converter
Total weight of machineAbout 8500KGS
Machine's sizeabout 8m×1.7m× 1.5m (Depend on final design)




Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.

At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.

At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.

Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.

We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
