| Prod Model: |
TL-1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Industrial Washer |
| Fuel: |
Electric |
| Clean Type: |
Motor spinning |
| Certification: |
CE, ISO |
Product Description

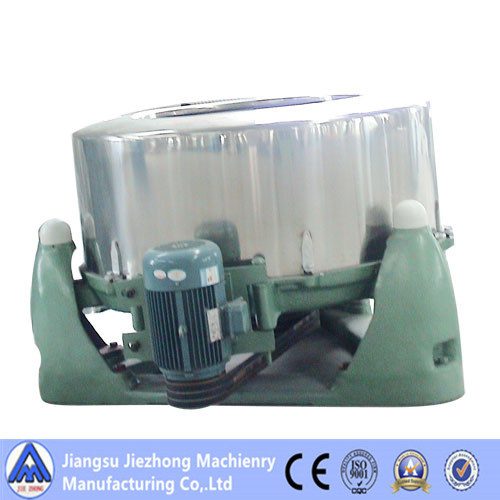

The maximum capacity of this machine is 210kg(diameter 1200mm)
The minimum capacity of this machine is 30kg (diameter 300mm)
Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.
Equipped with special brake arms which is durable and reliable make the machine more safe.
The durable drum is made of stainless steel.
Hard mounted
The motor starts with slow speed and reaches supposed speed gradurally, the drum is driven by triangle rubber belt, running smooth and synchronous.
Our products are CE and ISO9001 certified.
Terms of payment: T/T
Large capacity hydro Extractor main features
1. Independent three legs suspended instruction can avoid shock caused by unbalanced loaded.
2. The roller is made of good quality stainless steel, strong and durable.
3. Apply the brake good, safe and reliable performance.
4. Adopt a sticky tape of trigonometry of transmission, it tis driven the wheel by the electrical machinery to start. Walk unhurriedly and start to the nomal rotational speed. Turing round has no vibration steadily.
5. Packing: With wooden box
6. CE and ISO9001 certificates
The diameter of the hydro Extractor is consist of the parts that triangle basement, casting steel legs, drum, outer shell, motor and so on, and both drum and outer shell are made of stainless steel. When the motor start, the drum will be driven by triangle rubber belt which pass power from motor to drum. There is also brake device in the machine which has good character that machine can be stopped in short time.
|
Specif |
Motor power(kw) |
Diamcter of dram mm |
Overall dimensions mm |
Weight
(kg) |
|
TL752-500(30kg) |
1.5 |
500 |
950×600 |
300 |
|
TL752-600(50kg) |
2.2 |
600 |
1220×700 |
500 |
|
TL753-800(90kg) |
4 |
800 |
1720×840 |
800 |
|
TL751-1000(120kg) |
5.5 |
1000 |
1830×850 |
1400 |
|
TL754-1200(210kg) |
7.5 |
1200 |
2100×1050 |
1800 |
|
TL301-1500(350kg) |
8 |
1500 |
2550×1400 |
2100 |
|
TL-1800(650kg) |
12 |
1800 |
2700*1560 |
2300 |
Jiangsu Jiezhong Machinery Manufacturing Co., Ltd is one of the leading manufacturers of industrial and commercial laundry equipments in China for years. In 2013, Jiezhong became the only one cooperative partner of Accurate Technologies in Thailand. Since then, Jiezhong has the right to sell the Image brand to domestic and foreign countries. Also, Jiezhong has been engaged with customers from a wide varity of industries, invested time and energy in our customers' maintenance and development, offering products and service designed to face the challenges we meet every day.
As a professional manufacturer, our products are widely recognized and trusted by customers all over the world and are applied in hotels, hospitals, military, laundry companues, for its superb quality, reasonable prices and stylish designs. Our main products are: Washer extractor, barrier washer, tumble dryer, ironing machine, and folding machine. Also we sell Image brand products from Thailand named tunnel washer, deep chest ironer and towel folding machine. To ensure high quality, our company spares no expense to the introduction of international advanced equipment, such as laser cutting machines.
We take full responsibility of repair, replacement, if serious quality problems happen during the term of service. Our company is commented to providing the best solution for your laundry. We have served thousands of satisfied customers around the market, enjoying a high reputation both at home and abroad.
Nevertheless, we welcome your visit and are looking forward for future cooperation for mutual benefits.
