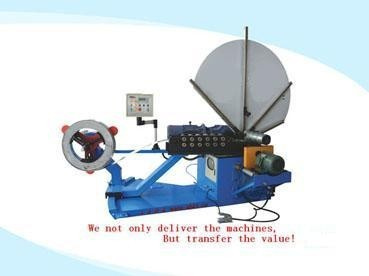

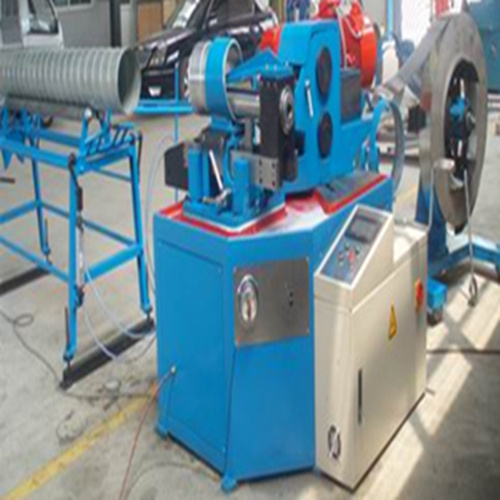

Spiral Tube Former Machine (MHTF-1500C)

Spiral Tube Former Machine (MHTF-1500C)
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: (MHTF-1500C)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter Range: 100-1500mm
Tube Length: 100-8000mm
Thickness Of Strip: 0.4-1.2mm (Galvanized Steel) 0.4-1.2mm(Stainless S
Width Of Strip: 137-140mm
Strip Speed: 1-30/Min
Dimension (L X W X H): 2650*1550*2000mm
Weight: 2200kg
Control System: PLC Automatic Control
Compressed Air Power: 0.5-0.7kmp
Connected Load: 380V/3p/50Hz
Forging Forming Method: Mold Forging
Type: Duct Machine

Product Description

Spiral duct machine modle MHTF-1500C with both Plasma cutting system and saw blade cutting system, with band steel mould which is more convinent and economic.

Performance:

1. Special mould for various tube diameters, very easy to change and adjust, no need large manpower, large mould for choice.
2. High speed sychro flying cutting system.
3. PLC control, convinent operation.
4. Light and small, site work.
5. Perfect swage, without leakage.

Diameter range

Φ100-Φ1500mm

Tube Length

100-8000mm

Thickness of Strip

0.4-1.2mm (Galvanized steel)
0.4-1.2mm(Stainless steel)

Width of Strip

137-140mm

Strip Speed

1-30/min

Dimension (L x W x H):

2650*1550*2000mm

    Weight

2200kg

Control System

PLC automatic control

Compressed air power

0.5-0.7kmp

Connected load

380V/3P/50HZ

Main Motor Power

5.5kw

The power of hydraulic pressure motor

4kw

Suitable Material

Aluminum, Stainless steel, Galvanized steel



Our company is to supply steel processing equipment, such as tube mill, cut to length, slitter, cold rolling mill, duct production machines, press braker, shear, and other steel equipment. Our machine has high quality and competitive price.

With our technical innovation, our machine can reduce power consumption, increase efficiency.

We export machines to South East Asia, India, USA, Middle East area, Europe, Africa, etc. Our goal is to meet customer requirement, increase customer production rate and accuracy, and give customer more value. Business will make both customer and us win.
