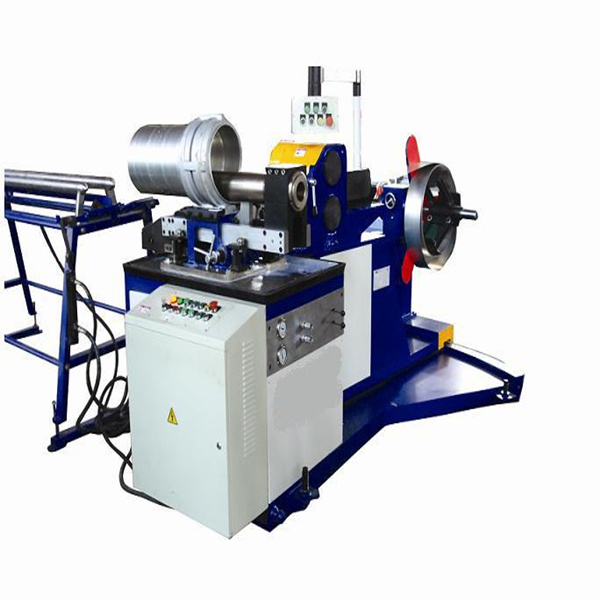

Spiral Tubeformer Machine (MHYH-1400)

Spiral Tubeformer Machine (MHYH-1400)
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: MHYH-1400
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Attribute (E. G.: Size): Value (E. G.: 12 Inches)
Diameter Range: 125-1400mm
Tube Length: 100-8000mm
Thickness Of Strip: 0.5-1.0mm for Mild Galvanized Steel
Width Of Strip: 137mm
Strip Speed: 1-30m/Min Adjustable
Dimension (L X W X H): 3400*1800*2000mm
Lock Seam: Outside Surface of Tube
Weight: 2000kg
Control System: PLC Automatic Control
Forging Forming Method: Mold Forging
Type: Duct Machine
Customized: on The Customer Request

Product Description

Diameter rangeTube LengthWidth of StripLock seamControl SystemCutting systemElectricalThe power of hydraulic motorSuitable MaterialThe main motor power
Φ125-Φ1400mm100-8000mm137mmOutside surface of tubePLC automatic controlBy rotary cutter380V/3PH/50HZ
(According to customer's request)
0.75kwStainless steel, Galvanized steel11kw
Features:
A. Be adapted with hydraulically roll-and-shear cutting which makes cutting edges smoothly and without burrs. Process is no sparks and noises, even safety.
B. Be adapted with fixing finalized mold which makes the dimensions of ducting precisely and unite, also process is even stable and speedy.
C. Exchanging different sizes molds then will be convenient for adjusting spiral angle, being adapted with automatic way for better agility and precision.
D. Be adapted with hydraulic presure sytem for achieving feeds, locking, cutting turn-down movements ect.
E. Running for material package, it will run after hydraulic pressre has pressed the materials. Be flexible for adjusting pressure which ensures quality for ducting according to different materials, thickness, and dimension.
F. Carrying out locking. Be adapted with Manos tat for controlling occluded which assures the quality of seaming.
G. Collocating of hydraulic pressure system, using with energy saving, safety and easy going measure etc.
H. Hydraulic pressure adapts constant power variable axial piston pump for energy saving.
I. Overall valve, redactor valve for ensuring stable system pressure.
J. Add-in accumulator, reduces ripple controlling of hydraulic pressure system for even stable.
K. Be adapted with two-way throttle valve which makes movement parts for wasy adjust.
  Type  MHTH-1400
Dimension of duct  ¢ 150mm-1400mm
Length of Tube  100mm-8, 000mm
Thickness of cutting                              plate                                                                               0.6mm-1.0mm
Lock seamOutside tube, on the inside on request
Electric Power380V/3PH/50HZ
Feeding Speed1-35M/min
The power of hydraulic motor4KW
The power of water pump motor 125KW
The power of feeding motor 90W
Cutting systemRoll-and-Shear random cutting
Run-out systemHydraulic pressure drops in automatic way
Forming system Each duct with one mold(Fitting out mold each below ¢ 300mm for choosing two among them)
Weight About 2500KG
  Packing Dimension3000*1800*1600mm

Our company is to supply steel processing equipment, such as tube mill, cut to length, slitter, cold rolling mill, duct production machines, press braker, shear, and other steel equipment. Our machine has high quality and competitive price.

With our technical innovation, our machine can reduce power consumption, increase efficiency.

We export machines to South East Asia, India, USA, Middle East area, Europe, Africa, etc. Our goal is to meet customer requirement, increase customer production rate and accuracy, and give customer more value. Business will make both customer and us win.
