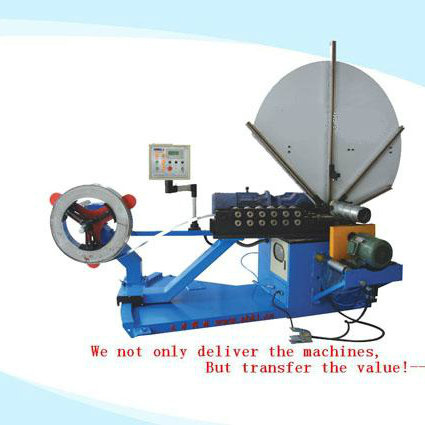

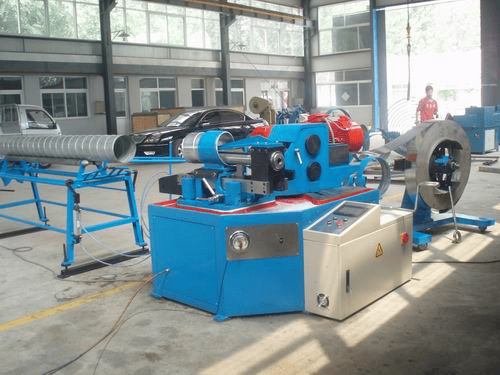

Spiral Tube Former Machine (MHTF-1500D)

Name: Spiral Tube Former Machine (MHTF-1500D)
Brand: china-castingforging.com
SKU: 669475972
Availability: InStock
Rating: 4.4 (69 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Shanghai Muhong Mechanical and Electrical Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	MHTF-1500D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter Range:	80-1500mm
Tube Length:	100-8000mm
Thickness Of Strip:	0.4-1.2mm
Width Of Strip:	137-140mm
Strip Speed:	1-38/Min
Dimension (L X W X H):	265015502000mm
Weight:	2200kg
Control System:	PLC Automatic Control
Compressed Air Power:	0.5-0.7kmp
Connected Load:	380V/3p/50Hz
Forging Forming Method:	Mold Forging
Type:	Duct Machine

Product Description

Spiral duct machine modle MHTF-1500D with both rotary cutter system and saw blade cutting system, with band steel mould which is more convinent and economic.

Performance:

1. Special mould for various tube diameters, very easy to change and adjust, no need large manpower, large mould for choice.
2. High speed sychro flying cutting system.
3. PLC control, convinent operation.
4. Light and small, site work.
5. Perfect swage, without leakage.

Diameter range	Φ80-Φ1500mm
Tube Length	100-8000mm
Thickness of Strip	0.4-1.2mm
Width of Strip	137-140mm
Strip Speed	1-38/min
Dimension (L x W x H):	265015502000mm
Weight	2200kg
Control System	PLC automatic control
Compressed air power	0.5-0.7kmp
Connected load	380V/3P/50HZ
Main Motor Power	5.5kw
The power of hydraulic pressure motor	4kw
Suitable Material	Aluminum, Stainless steel, Galvanized steel

Our company is to supply steel processing equipment, such as tube mill, cut to length, slitter, cold rolling mill, duct production machines, press braker, shear, and other steel equipment. Our machine has high quality and competitive price.

With our technical innovation, our machine can reduce power consumption, increase efficiency.

We export machines to South East Asia, India, USA, Middle East area, Europe, Africa, etc. Our goal is to meet customer requirement, increase customer production rate and accuracy, and give customer more value. Business will make both customer and us win.
