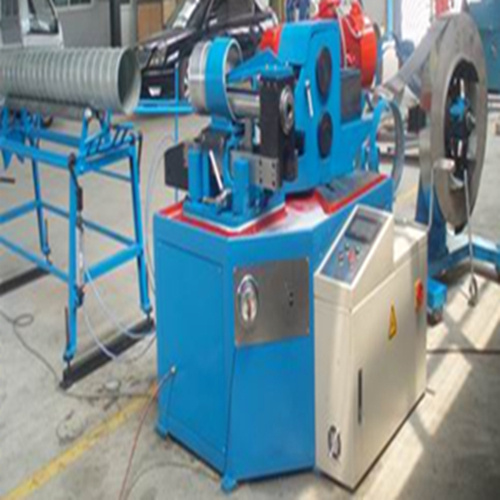

| Prod Model: |
1.2-1500-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter Range: |
100-1500mm |
| Material: |
Galvanized Steel:0.5-1.2mm,Width 137mm; |
| Decoiler: |
Vertical, Inner Coil: 460~520 Mm, Max Load: 1200kg |
| Adding Tendons: |
One or More(Optional) |
| Seam Lock: |
Located Outside The Ducts |
| Feeding Speed: |
0-37m/Min,Adjustable |
| Cutter: |
Roller Shear |
| Drive System: |
Cutting and Turning Over Ducts Adopt Air-Power; |
| Forming Head Mould: |
Steel,Aluminiun Alloy Is Optional |
| Total Weight: |
1800kg |
| Forging Forming Method: |
Mold Forging |
| Type: |
Tube Forming Machine |
| Customized: |
on Customer Request |
Product Description
Features:
A. Be adapted with hydraulically roll-and-shear cutting which makes cutting edges smoothly and without burrs. Process is no sparks and noises, even safety.
B. Be adapted with fixing finalized mold which makes the dimensions of ducting precisely and unite, also process is even stable and speedy.
C. Exchanging different sizes molds then will be convenient for adjusting spiral angle, being adapted with automatic way for better agility and precision.
D. Be adapted with hydraulic presure sytem for achieving feeds, locking, cutting turn-down movements ect.
E. Running for material package, it will run after hydraulic pressre has pressed the materials. Be flexible for adjusting pressure which ensures quality for ducting according to different materials, thickness, and dimension.
F. Carrying out locking. Be adapted with Manos tat for controlling occluded which assures the quality of seaming.
G. Collocating of hydraulic pressure system, using with energy saving, safety and easy going measure etc.
H. Hydraulic pressure adapts constant power variable axial piston pump for energy saving.
I. Overall valve, redactor valve for ensuring stable system pressure.
J. Add-in accumulator, reduces ripple controlling of hydraulic pressure system for even stable.
K. Be adapted with two-way throttle valve which makes movement parts for wasy adjust.
| Diameter range | Seam lock | Feeding speed | Cutter | Forming head mould | Total weight | Outside size | Total power | Electrical source | Console |
| 100-1500mm | located outside the ducts | 0-37m/min,adjustable | roller shear | steel,aluminiun alloy is optional | 1800kg | Main machine: 2x1.6x1.4 m
Decoiler: 1.5*0.8*1.4m.
Run out table: 2.1*1*0.8m | 16KW | 380V/50Hz/3ph | Touch screen |
Our company is to supply steel processing equipment, such as tube mill, cut to length, slitter, cold rolling mill, duct production machines, press braker, shear, and other steel equipment. Our machine has high quality and competitive price.
With our technical innovation, our machine can reduce power consumption, increase efficiency.
We export machines to South East Asia, India, USA, Middle East area, Europe, Africa, etc. Our goal is to meet customer requirement, increase customer production rate and accuracy, and give customer more value. Business will make both customer and us win.
