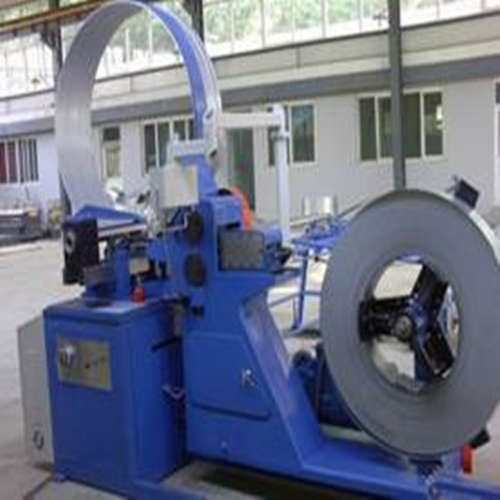

| Prod Model: |
1.2-1500-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter Range: |
100-1600mm |
| Material: |
Galvanized Steel,Stainless Steel |
| Decoiler: |
Vertical, Inner Coil: 460~520 Mm, Max Load: 1200kg |
| Seam Lock: |
Located Outside The Ducts |
| Feeding Speed: |
0-35m/Min,Adjustable |
| Cutter: |
Roller Shear |
| Drive System: |
Cutting and Turning Over Ducts Adopt Air-Power; C |
| Forming Head Mould: |
Steel, Aluminium Alloy Is Optional |
| Total Weight: |
2000kg |
| Electrical Source: |
380V/50Hz/3pH |
| Forging Forming Method: |
Mold Forging |
| Type: |
Duct Machine |
| Customized: |
on The Customer Request |
Product Description
| Diameter range | Decoiler | Seam lock | Feeding speed | cutter | Forming head mould | Total weight | Outside size | Total power: | Console |
| 100-1600mm | Vertical, inner coil: 460~520 mm, max load: 1200kg | located outside the ducts | 0-35m/min,adjustable | roller shear | steel, aluminium alloy is optional | 2000kg | Main machine:3.4x1.8x1.8 m
Run out table:2*1.2*1.1 m | main motor:15kw,
Hydraulic motor:0.75kw,
Seam locking wheel motor:0.12kw | Push-buttons panel |
Features:
A. Be adapted with hydraulically roll-and-shear cutting which makes cutting edges smoothly and without burrs. Process is no sparks and noises, even safety.
B. Be adapted with fixing finalized mold which makes the dimensions of ducting precisely and unite, also process is even stable and speedy.
C. Exchanging different sizes molds then will be convenient for adjusting spiral angle, being adapted with automatic way for better agility and precision.
D. Be adapted with hydraulic presure sytem for achieving feeds, locking, cutting turn-down movements ect.
E. Running for material package, it will run after hydraulic pressre has pressed the materials. Be flexible for adjusting pressure which ensures quality for ducting according to different materials, thickness, and dimension.
F. Carrying out locking. Be adapted with Manos tat for controlling occluded which assures the quality of seaming.
G. Collocating of hydraulic pressure system, using with energy saving, safety and easy going measure etc.
H. Hydraulic pressure adapts constant power variable axial piston pump for energy saving.
I. Overall valve, redactor valve for ensuring stable system pressure.
J. Add-in accumulator, reduces ripple controlling of hydraulic pressure system for even stable.
K. Be adapted with two-way throttle valve which makes movement parts for wasy adjust.
