| Prod Model: |
MH-1600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter Range: |
100-1600mm |
| Material: |
Galvanized Steel:0.5-1.2mm,Width 137mm; Stainless |
| Decoiler: |
Vertical, Inner Coil: 460~520 Mm, Max Load: 1200kg |
| Seam Lock: |
Located Outside The Ducts |
| Feeding Speed: |
0-35m/Min,Adjustable |
| Cutter: |
Roller Shear |
| Drive System: |
Cutting and Turning Over Ducts Adopt Air-Power; C |
| Forming Head Mould: |
Steel, Aluminium Alloy Is Optional |
| Total Weight: |
2000kg |
| Total Power: |
16kw. |
| Forging Forming Method: |
Mold Forging |
Product Description

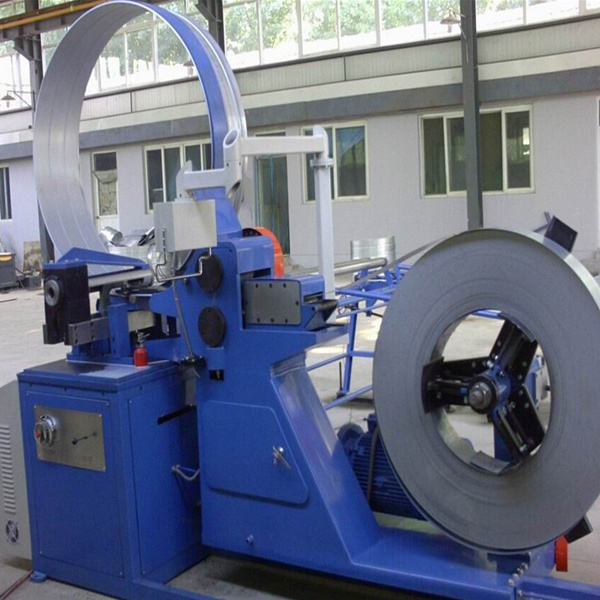

Spiral duct machine modle MHTF-1602 with fast speed, more wide diameter range, different aluminum mould based on customer choice.
Performance:
1. Special mould for various tube diameters, very easy to change and adjust, no need large manpower, large mould for choice.
2. High speed sychro flying cutting system.
3. PLC control, convinent operation.
4. Light and small, site work.
5. Perfect swage, without leakage.
| Diameter range | 100-1600mm |
| Thickness of strip | 0.5 -1.2mm Glvanized steel |
| 0.4-0.8mm Stainless steel |
|
|
| Strip Width | standard 137mm up to 1mm thickness, 140mm above. Other widths on request. |
| Lockseam | Outside tube, on the inside on request. |
| Production speed | Max. 35 meters/min. depending on material |
| Cutting system | roller cutter |
| Net weight | 2000kg |
| Gross weight | 2300kg |
| Drive System | Cutting and turning over ducts adopt air-power;
Compaction of feed rolls adopts hydraulic power |
| Console | Push-buttons panel |
| Options | Automatic length control system, controlled corrugation unit. METU flange slitter Saw blade cutter |
Our company is to supply steel processing equipment, such as tube mill, cut to length, slitter, cold rolling mill, duct production machines, press braker, shear, and other steel equipment. Our machine has high quality and competitive price.
With our technical innovation, our machine can reduce power consumption, increase efficiency.
We export machines to South East Asia, India, USA, Middle East area, Europe, Africa, etc. Our goal is to meet customer requirement, increase customer production rate and accuracy, and give customer more value. Business will make both customer and us win.
