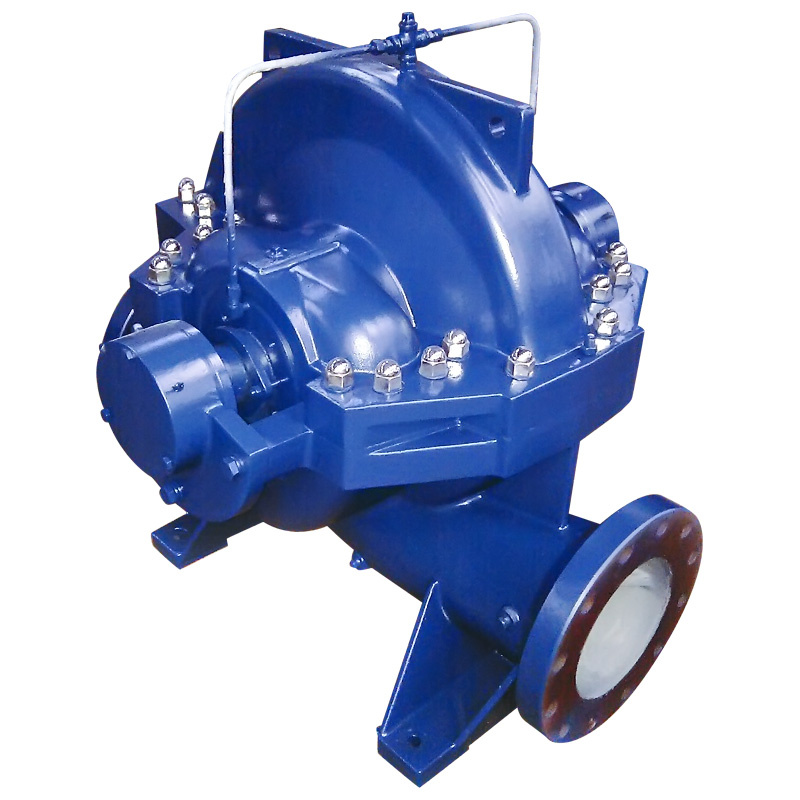

Split Case Pump MW Pump (XS800-990)

Prod Model:	MW Pump XS800-990
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed:725rpm:	Mptor Power:1400kw
Working Pressure:	Low Pressure Pump
Position Of Pump Shaft:	Horizontal Pump
Impeller Number:	Single-Stage Pump
Influent Type Of Impeller:	Double-Suction Pump
Usage:	Water and Other Liquid Field

Product Description

Split Case Pump
Type XS pumps are new type of single-stage double-suction centrifugal split case pumps with high performance. They are widely used in delivering liquids to the water plant, circulation water system of air conditioner, pipe net system of supplying heated water, construction, drainage pumping station, power station, power station, industrial water supply system, ship industry, mine and etc. Type XS pumps are advanced products developed from type SH, S, SA, SLA, SAP pumps. We have manufactured this type of pump with the inlet diameter 1.4m.

The technical parameter of type XS pump:
Capacity: 22~11600m³ /h
Head: 7~200m
Temperature: -20° C~105° C(Type XS) -60° C~200° C(Type XSR)
Solid parameter: ≤ 80mg/L
Permissible pressure: ≤ 2.5Mpa (Type Xs) ≤ 4Mpa (Type XSR)
Pump outlet diameter: 80~1400mm
Technical Advantage:
Type XS pumps work stably with less noise and vibration and can work at a lifting speed due to short support at both sides, thus they can be widely used.
The pipelines arrangement of type XS pump looks simple and beautiful due to inlet and outlet at a same center line.
The same rotor of type XS pumps can be operated at reverse direction to avoid damage to the pumps water hammer.
Unique design of type XS pumps working at high temperature using middle support to fasten the pump casing and using cooling seals oil lubrication bearing then pump suitable for working at 200 centigrade especially for supplying heated water to pipe net system.
Type XS pump casting parts can be vertically or horizontally mounted according to different working condition, with mechanical seals or packing seals.
Type XS pumps look beautiful with visible lines adopting industrially designing.

Type	Capacity		Head	Speed	Shaft power	Motor power	EFF	NPSH
	(m3/h)	(l/s)	(m)	(r/min)	(kw)	(kw)	(%)	(m

800-990		7200 9468 11520	2000 2630 3200	72 64 52	725	1700.9 1854.1 1919.2	2240	83 89 85	4.2 6.2 10.1
	A	6480 9396 11160	1800 2610 3100	65.6 56 44.7		1429.1 1647 1617.2	1800	81 87 84	4 6 9.2
	B	6120 8640 10440	1700 2400 2900	59.5 50.5 41		1224.2 1365.7 1404.4	1600	81 87 83	4 5.1 7.8
	C	6120 8280 9720	1700 2300 2700	52.7 45 38.5		1126 1193.7 1242.8	1400	78 85 82	4 5 6.5
