| Prod Model: |
CK690 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Mid East,Western Europe |
Product Description

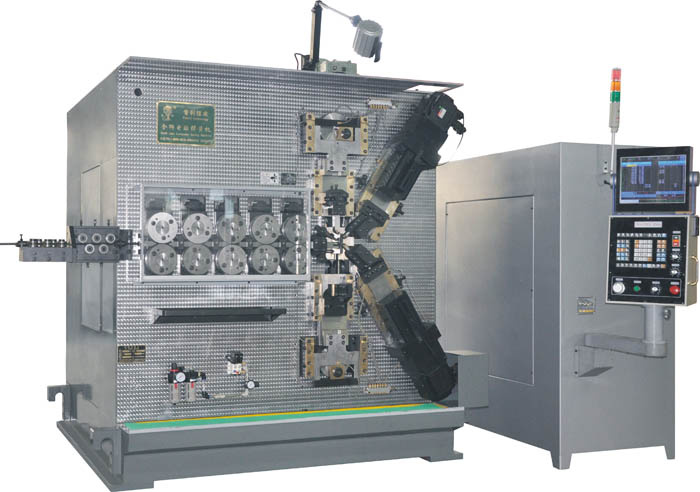

CK590 spring coiling machine has 5 feeding rollers, ensure the reliability of the feeding precision and the stable of the feeding
Introduction of CK590:
Besides the full performance of imported compression spring machines, the most prominent feature of the machine is that it adds the pairs of feeding rollers, ensure the reliability of the feed precision and the stable of the feed axis. In addition, the feeding is controlled by the gearbox independently, with the two gear of high-speed and low-speed, is suitable for the needs of different diameter, doubled the productivity effectively. The computer interface can be changed into Chinese or English, the graphical grogram can program automatically. The machine also has the function of straight cut, subtend cut, twist cut, swing cut and son on.
Specification:
Model CK590
Axes number 5
Wire Diameter(mm) 3.0-9.0
Outside Diameter(mm) 120
Wire Feed length limitless
Wire Feed Speed(m/min) 70/140
Production Rate(PCS/min) 50-120
Winding Rate(Dm/d) 3
Wire Feed Roller(group) 5
Wire Feed Axis(kw) 30
Diameter Axis(kw) 7
Pitch Axis(kw) 3.8
Upper cutting Axis(kw) 11
Lower cutting Axis(kw) 11
Servo moter(kw) 62.8
Dimensions(mm) 2218*1850*2300
Machine Weight(kg) 7500
Shengzhou Gold Lion Spring Machine Co., Ltd. Is located in China's eastern Zhejiang, north of Hangzhou, east of Ningbo, belonging to the Yangtze River Delta economic zone. Covers a building area of 58000 square meters, staff 380 people, has a research and development center. Companies to introduce Germany, Japan multi-axis technology, colleges and universities, research institutes in developing a more than 30 patented technology, continuously improve the degree of automation, allowing the user to simple operation to manufacture high precision springs, winding spring even complex is a forming, without additional processing. Its products are " machine rapid, precise and accurate, stable and reliable, operation simple " features; Market access to Tianjin machine rail transportation company limited, nuclear Jianzhong nuclear fuel element limited company, Inner Mongolia first machine group, the majority of users of all ages, and in combination with social new technology, new materials, new equipment continue to emerge, at any time for the upgrading of products and a series of specifications of extension, manufacturing precision, a spring shape is more complex, higher degree of automation of intelligent spring forming machines, year after year are pushed out a new market-leading products, to high, fine, sharp direction, entered the domestic spring manufacturing advanced ranks, is our country " CNC spring machine " industry standard drafting unit. The company specialized in manufacturing wire diameterφ 0.1mm~ φ 20mm between CNC spring machine, CNC grinding machine spring, workshop specializing in the production of automatic spring coiling machine, torsion spring machine, straightening machine and temper furnace, spring machinery and equipment, product marketing of domestic and European and American markets.
