| Prod Model: |
CNC642 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

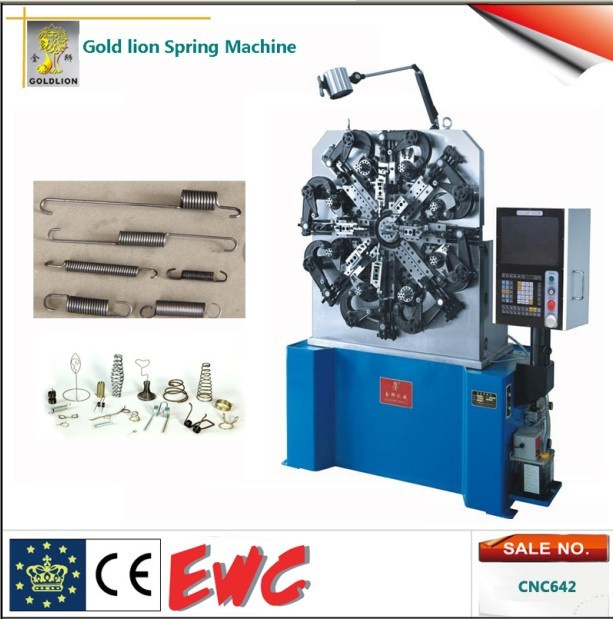

CNC642 spring making machine
Description:
The camshaft, the wire feed shaft, the rotary quill shaft and the auxiliary shaft can work synchronously, and eight-position can working continuously. The machine is suitable for producing various kind of springs such as compression spring, pagoda spring, double torsion spring, flat spring and etc...
Main technical parameters
1) Wire diameter(mm): Φ 1.4-Φ 4.2
2) Outside diameter of spring(mm): MAX Φ 70
3) Instruction value of wire feed: 0.01-9999.99
4) Wire feed speed: 0-110m/min
5) Instruction value of cam: 0.1 degree-359.9 degree;
6) Wire feed servo motor: 5.5KW
7) Cam servo motor: 7KW
8) Z axis servo motor: 1.5KW
9) Power: 380V± 10%V 50Hz
10) Size of machine(mm): 1680X1100X2250
11) Weight of machine: 1800KG
Shengzhou Gold Lion Spring Machine Co., Ltd. Is located in China's eastern Zhejiang, north of Hangzhou, east of Ningbo, belonging to the Yangtze River Delta economic zone. Covers a building area of 58000 square meters, staff 380 people, has a research and development center. Companies to introduce Germany, Japan multi-axis technology, colleges and universities, research institutes in developing a more than 30 patented technology, continuously improve the degree of automation, allowing the user to simple operation to manufacture high precision springs, winding spring even complex is a forming, without additional processing. Its products are " machine rapid, precise and accurate, stable and reliable, operation simple " features; Market access to Tianjin machine rail transportation company limited, nuclear Jianzhong nuclear fuel element limited company, Inner Mongolia first machine group, the majority of users of all ages, and in combination with social new technology, new materials, new equipment continue to emerge, at any time for the upgrading of products and a series of specifications of extension, manufacturing precision, a spring shape is more complex, higher degree of automation of intelligent spring forming machines, year after year are pushed out a new market-leading products, to high, fine, sharp direction, entered the domestic spring manufacturing advanced ranks, is our country " CNC spring machine " industry standard drafting unit. The company specialized in manufacturing wire diameterφ 0.1mm~ φ 20mm between CNC spring machine, CNC grinding machine spring, workshop specializing in the production of automatic spring coiling machine, torsion spring machine, straightening machine and temper furnace, spring machinery and equipment, product marketing of domestic and European and American markets.
