| Prod Model: |
forged blade flange |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/2'' to 500'' |
| Material: |
Stainless Steel |
| Type: |
Welding Flange |
| Standard: |
GB |
| Manufacturing Way: |
Forging |
Product Description

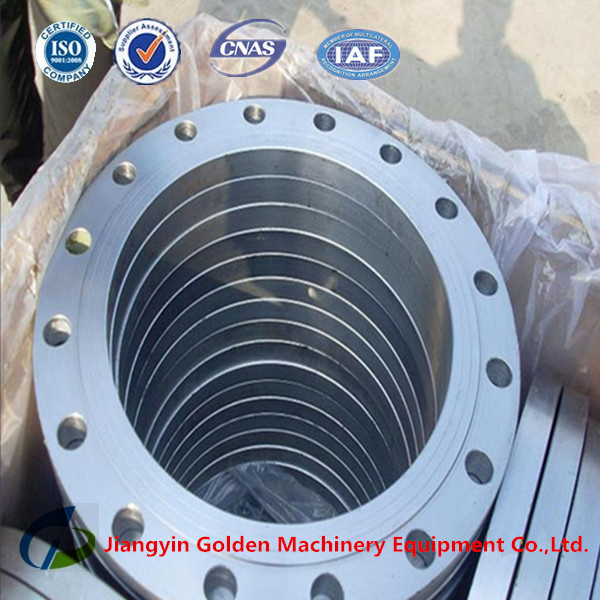

NAME: stainless steel blade flange
SIZE: Ring forging/forged ring/annular forging/gear forging/steel sleeve/steel cylinder
| Diameter(mm) | Height(mm) | Single weight(kg) | Material |
| 800~3500 | 100~500 | 4200 or less | Carbon structure steel/alloy structure steel/low alloy steel/alloy steel/spring steel/stainless steel/heat resistant steel/high temperature alloy steel |
Standard: ANSI, JIS, BS, DIN, UNI, EN, GB, AWWA, API
Certification: ISO19001-2008, ISO14001:2004,GB/T28001-2001(OHS18001:1999)
Seamless Rolled Ring Forging Process
I. Upsetting
The ring rolling process begins with the upsetting of the starting stock on flat dies at its plastic deformation temperature.
II. Piercing
Piercing involves forcing a punch into the hot upset stock displacing metal radially and leaving a thin web of metal at the bottom.
III. Shearing
A subsequent operation, shearing, removes the thin web producing a completed hole through the stock.
IV. Preforming
This stock, referred to as a blank or preform, is now ready for the ring rolling process.
V.Forming
The doughnut-shaped preform is placed over the mandrel.
As the preform is rotated in the mill, the mandrel begins to apply pressure toward the main roll. At the same time, the axial cones apply pressure toward each other.
As a result of the radial and axial pressure, the ring's OD and ID gradually increase while the thickness and wall section are reduced.
forged seamless rolled rings used in
ball and roller bearings
power transmission
wind power gear ring
power generation
textile machinery
pulp & paper
pressure vessel
wind turbine bearing
steel fabrication
aerospace industries
products catalog:
Axial forging/ forged shaft
| Diameter(mm) | Height(mm) | Single weight(kg) | Material |
| 180~1000 | 500~8500 | 12000 or less | Carbon structure steel/alloy structure steel/low alloy steel |
| 180~650 | 500~6000 | 10000 or less | alloy steel/spring steel/stainless steel/heat resistant steel |
| 150~400 | 400~3000 | 10000 or less | high temperature alloy steel |
Ring forging/forged ring/annular forging/gear forging/steel sleeve/steel cylinder
| Diameter(mm) | Height(mm) | Single weight(kg) | Material |
| 800~3500 | 100~500 | 4200 or less | Carbon structure steel/alloy structure steel/low alloy steel/alloy steel/spring steel/stainless steel/heat resistant steel/high temperature alloy steel |
Module forging/forging block
| thick(mm) | width(mm) | Single weight(kg) | Material |
| 100~600 | 100~1600 | 18000 or less | Carbon structure steel/alloy structure steel/low alloy steel/alloy steel/spring steel/stainless steel/heat resistant steel/high temperature alloy steel |
Forging bars
| Diameter(mm) | Height(mm) | Single weight(kg) | Material |
| 80~650 | 16000 | 12000 or less | Carbon structure steel/alloy structure steel/low alloy steel |
| 80~650 | 16000 | 10000 or less | alloy steel/spring steel/stainless steel/heat resistant steel/high temperature alloy steel |
Forging discs
| Diameter(mm) | Height(mm) | Single weight(kg) | Material |
| 150~1000 | 100~500 | 4200 or less | Carbon structure steel/alloy structure steel/low alloy steel/alloy steel/spring steel/stainless steel/heat resistant steel/high temperature alloy steel |
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
Forging weight is from 50 kg to 20 ton. Many kinds of materials, free size.
Smelting Process: EF+LF + VD+VC The process as follow: Ingot → Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection → Rough machining→ UT → 2th Heat treatment → Finishing machining → Inspection
Applications: The heavy forging: Forged ring, shaft, roller, flange, or gear is widely used for various industries For example: Metallurgy, mining, power station and so on.
Specifications:
Description
The heavy forging: Forged ring, shaft, roller, flange, or gear
Material
Alloy steel or stainless steel
Material standard
ASTM or GB/T3077-1999
Specification
As per specified requirements
Weight
Max. 250 ton
Smelting Process:
EF+LF + VD+VC
Process
Ingot→ Heat → Forging → Heat treatment (Normalizing+ tempering) → Inspection
→ Rough machining→ UT → 2ND Heat treatment → Finishing machining → Inspection
UT standard
EN10228, ASTM A388 or JB/T 5000.15-1998
Competitive Advantage:
The heavy forging is manufactured by large scale stated enterprise. Advanced technical process from smelting steel to forging and heat treat guarantees the product quality. Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery
