| Prod Model: |
QDX1.5-15-0.37 |
| Markets: |
North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1" |
| Rated Power: |
200W |
| Max.Pump Rate: |
4000L/H |
| Power: |
Electric |
| Structure: |
Single-stage Pump |
| Theory: |
Centrifugal Pump |
| Application: |
Submersible Pump |
| Type: |
Rotary Pump |
Product Description
Features and purpose

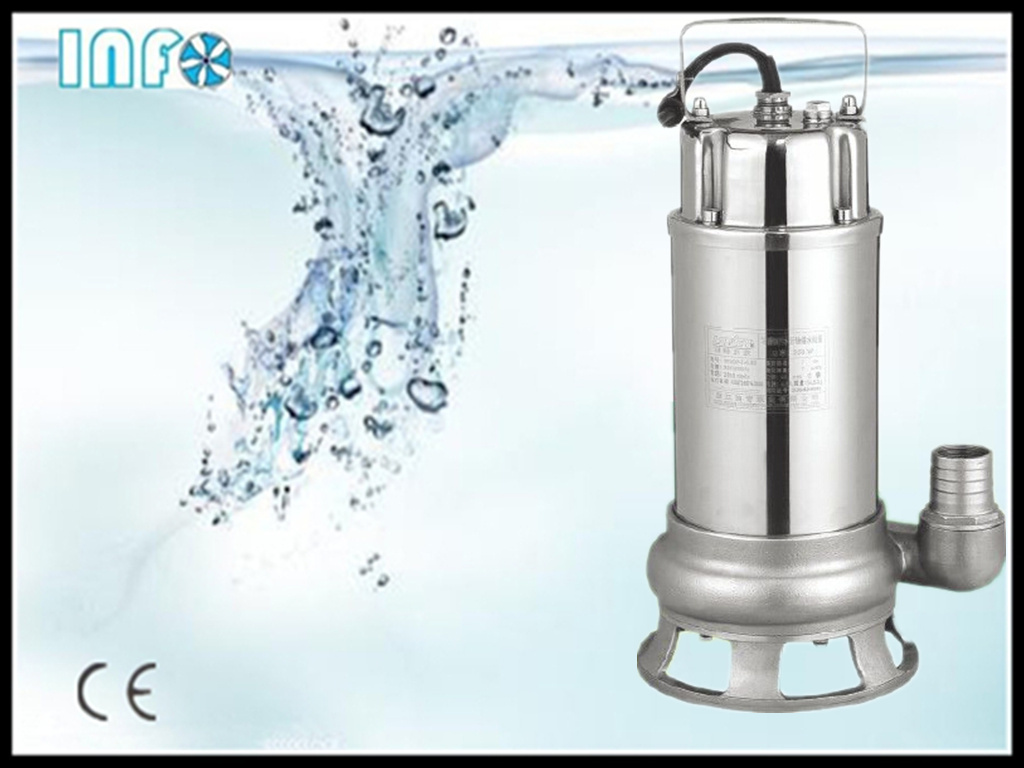

One-phase or three-phase QDX/QX all stainless steel submersible pumps,which have stainless steel shell.consist of a pump,seal and motor.Bottom suction structure makes the pump avoid clogging in case of getting bogged down in sludge.The elegant appearance features precision casting and stainless steel cylinder,which is rust-proof,corrosion resistant and pollution-free.Pumps are suitable for buildings,hospitals,residential quarters,municipal works.transp ort construction,sewage discharge of factories,livestock breeding,pharmacy,beverages,saltwater.The pump uses a double mechanical seal which is reliable and safe.Seals and cleanness.The overall structure of the pump is compact,small,light and easy to maintain.A protector in the motor automaticallyshuts off the pump in case of overheating or over-current which ensures security and reliability evenin an unfavorable environment.
| MODEL | RATED CAPACITY(m³/h) | RATED HEAD (m) | RATED POWER (KW) | RATED VOLTAGE(V) | SPEED
(r/min) | FREQUENCY | FREQUENCY |
| QDX1.5-15-0.37 | 1.5 | 15 | 0.37 | 220/380 | 2860 | 50 | 25 |
| QDX3-18-0.55 | 3 | 18 | 0.55 | 2860 | 50 | 25 |
| QDX6-14-0.55 | 6 | 14 | 0.55 | 2860 | 50 | 40 |
| QDX10-10-0.55 | 10 | 10 | 0.55 | 2860 | 50 | 50 |
| QDX6-18-0.75 | 6 | 18 | 0.75 | 2860 | 50 | 40 |
| QDX10-14-0.75 | 10 | 14 | 0.75 | 2860 | 50 | 50 |
| WQD4-10-0.55 | 4 | 10 | 0.55 | 220/380 | 2820 | 50 | 40/50 |
| WQD7-7-0.55 | 7 | 7 | 0.55 | 2820 | 50 | 40 |
| WQD5-15-0.75 | 5 | 15 | 0.75 | 2820 | 50 | 40/50 |
| WQD7-10-0.75 | 7 | 10 | 0.75 | 2820 | 50 | 40/50 |
| WQD10-7-0.75 | 10 | 7 | 0.75 | 2820 | 50 | 50 |
| WQD7-15-1.1 | 7 | 15 | 1.1 | 2820 | 50 | 50 |
| WQD10-10-1.1 | 10 | 10 | 1.1 | 2820 | 50 | 50 |
