| Prod Model: |
bls |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Centrifugal Pump |
| Structure: |
Single-Stage Pump |
| Application: |
Milk, Beverage etc. |
| Application Scope: |
Dairy, Food, Beverage, Pharmacy, Cosmetic |
| Standard.: |
DIN, SMS, 3A, Rjt, ISO, Idf |
| Packing.: |
Stardard Export Packing for Centrif |
| Impeller Number: |
Single-Stage Pump |
| Working Pressure: |
High Pressure Pump |
| Position Of Pump Shaft: |
Horizontal Pump |
| Influent Type Of Impeller: |
High Pressure Filtering |
| Usage: |
Cosmetic Food Beverage Pharmacy Dairy |
Product Description

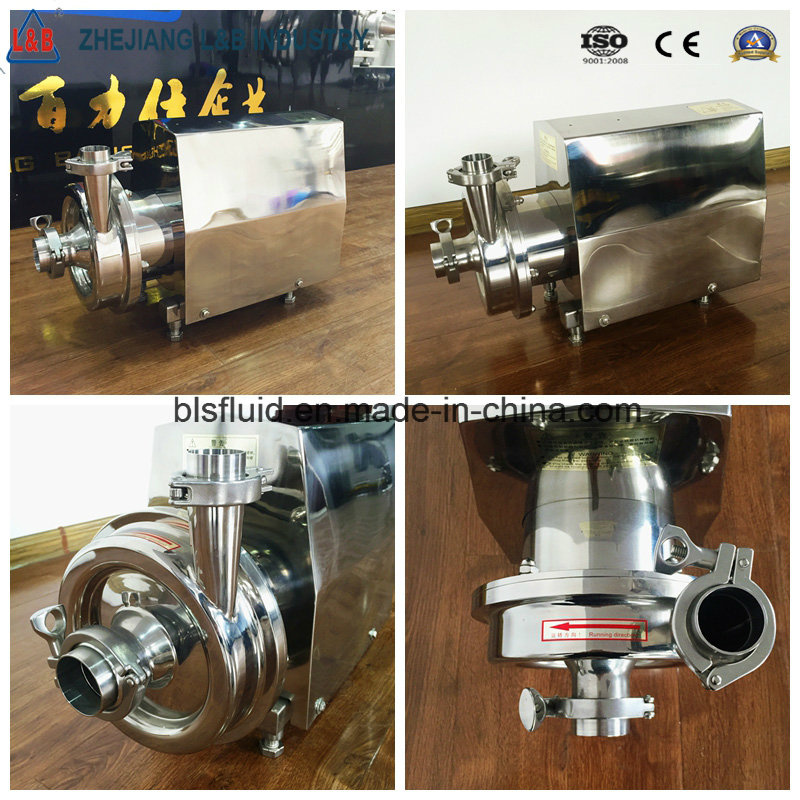

Sanitary Centrifugal Pump
Material:SS304,SS316L
ISO9001:2008
Reliable quality,beatiful surface
Centrifugal pump is a sanitary centrifugal pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical,dairy,milk,bear industries.
Some of its uses include processes in the brewing, dairies and beverage industries in general, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups, and purified-water loops in the pharmaceutical industry.
Design and features
Different Connection type: Welding; Thread; Clamp
Different connections standard:DIN,SMS,JIS, ISO.
Open impeller manufactured with stainless steel investment casting technology.
Sanitary mechanical seal.
Parts in contact with pumped media AISI 316L or 304
Pump support from AISI 304
Inside surface finishing Ra < 0.8 um.
Outside surface finishing Mirror polished
Model | Flow(Ton/Hour) | Lift(M) | Power(KW) | Inlet | Outlet |
| FLT03-15 | 3 | 15 | 0.75 | 38 | 32 |
| FLT03-20 | 3 | 20 | 1.1 | 38 | 32 |
| FLT05-24 | 5 | 24 | 1.5 | 51 | 38 |
| FLT05-32 | 5 | 32 | 2.2 | 51 | 38 |
| FLT10-24 | 10 | 24 | 2.2 | 51 | 38 |
| FLT10-32 | 10 | 32 | 3 | 51 | 38 |
| FLT15-24 | 15 | 24 | 3 | 51 | 51 |
| FLT20-24 | 20 | 24 | 4 | 51 | 51 |
| FLT20-35 | 20 | 35 | 5.5 | 63.5 | 51 |
| FLT30-24 | 30 | 24 | 5.5 | 63.5 | 51 |
| FLT30-35 | 30 | 35 | 7.5 | 63.5 | 51 |
| FLT40-24 | 40 | 24 | 7.5 | 76 | 63.5 |
| FLT50-24 | 50 | 24 | 7.5 | 76 | 63.5 |
| FLT50-35 | 50 | 35 | 11 | 76 | 63.5 |
| FLT80-30 | 80 | 30 | 15 | 89 | 76 |
| FLT80-40 | 80 | 40 | 18.5 | 102 | 89 |
| Product Name: | hot sale stainless steel food grade Sanitary milk pump Centrifugal pump |
| Description: | Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries |
| Construction: | Horizontal BAW Series and vertical BAW series, impeller has open type and semi-open type |
| Material: | SS304/SS316L/1.4301/1.4404 |
| Seal Material: | EPDM (Standard, FDA approval) |
| Max. Flow: | 180m3/h |
| Max. working temperature: | 120 C / 248 F |
| Max. rev: | 1450 RPM |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Motor power: | 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 22KW,75kw |
| Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 220V, 380V,415V |
| Motor: | LOCAL,50hz/ 60hz |
| Surface treatment: | Inner polished and Sandblast outside |
| Availably connection: | Clamp, Thread Butt weld, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Plywood case or customerized. Or as per the request of customers |
| Delivery details: | Usually within 20 days after receiving T/T down payment |
| Food Industry | Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc. |
| Daily Chemicals | Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc. |
| Pharmacy | Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc. |
| Chemical Industry | Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc. |
| Other Industry | Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc. |
