| Prod Model: |
YX13-65-850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Roll Forming Machine |
Product Description

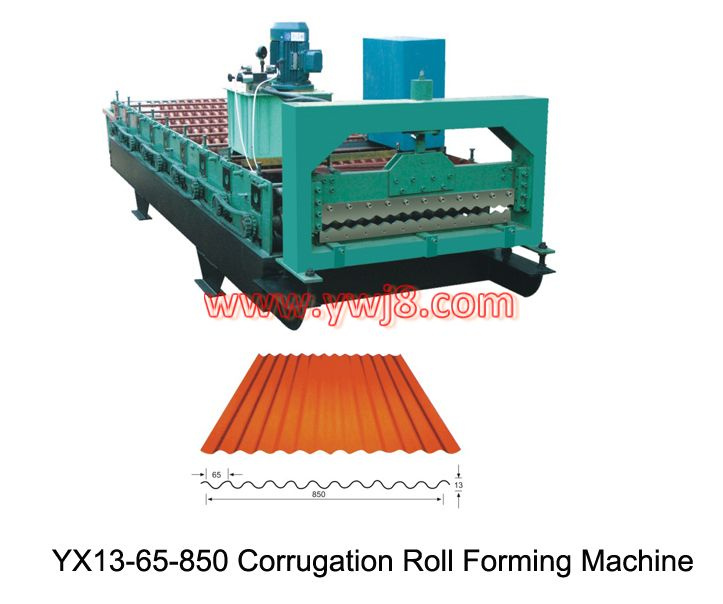

Standard Corrugated Roll Forming Machine, YX13-65-850
Specialized in the filed of roll forming machine since 1998, with 12 years' experience. Manufacture both standard and customized Roof Forming Machine, as per their specific needs and requirements.
|
main technical parameters |
|
|
|
1. General: |
|
Material Spec |
Q235 or 34 KSI, 0.25 mm to 0.8 mm |
|
Material Width |
1000/1200/1220/1250mm |
|
Forming Steps |
11 |
|
Controlling System |
PLC |
|
Main Application |
Roof and Wall Panel |
|
Dimension |
about 5.9*1.3*1.5m (L*W*H) ( depend roofing style ) |
|
Total weight |
about 2.4ton |
|
|
|
2. For the produced panel: |
|
width |
850mm, corrugation type |
|
Length |
Any length as your requirement (set by PLC) |
|
Speed |
10-12 m/min |
|
Type of cutting |
Roll-formed and length-set cut |
|
|
|
3. Components: |
|
Roller Material |
High grade No. 45 forged steel, with digital-controlled procession, Painted with hard chrome |
|
Active Shaft Material |
High grade No. 45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft |
|
Cutting Blade |
Cr12 mould steel with quenched trea |
|
Electric Elements |
Touch screen: MITSUBISHI |
|
PLC: MITSUBISHI |
|
|
|
Products Warranty |
One year. and we will provide the technical support for the whole life of the equipment |
Established in 1998, Botou Zhenyuan Roll Forming Machine Factory is specialized in designing and producing roof and wall roll forming machines.
Our products are widely applied to manufacturing colored steel tiles which get extensive application in industry workshop, warehouse, residence, etc. They have won high reputation for their satisfying quality among our customers.
