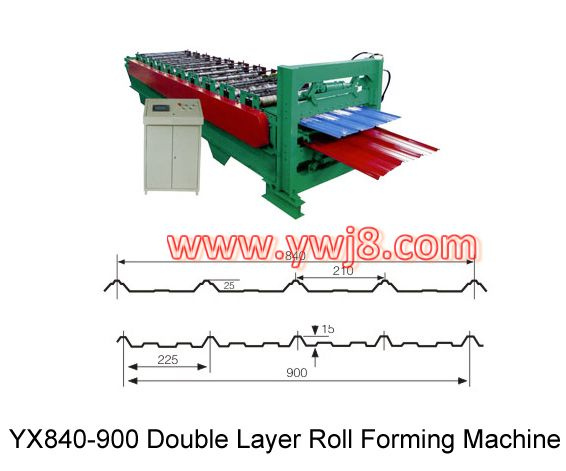

Standard Double Layer Roll Forming Machine, YX840-900
Specialized in the filed of roll forming machine since 1998, with 12 years' experience. Manufacture both standard and customizedDouble Layer Forming Machine, as per their specific needs and requirements.
|
1. General |
This roll forming machine can separately produce corrugation roof and trapezoidal roof in one machine. You can also choose other 2 profiles to produce in the double layer forming machine. Automatically cut to length, PLC control, and Frequency Converter.
This line consists of 5-Ton Mechanical uncoiler, guiding and feeding device, DUAL LEVEL roll former, run out table, PLC controller, hydraulic post-cutting equipment, electrical control system, hydraulic system, etc. |
|
|
|
2. Producing Process Sketch |
|
decoiling the sheet-sheet guiding -roll forming-measure length -cutting the panel-panels to the supporter |
|
|
|
3. Technical Parameters |
|
3.1 main machine |
|
NO |
Item |
Parameters |
|
3.11 |
suitable material |
Pre-Painted or Galvanized Steel Sheet, Yield Strength (Mpa) 235Mpa, 0.25-0.8mm thickness, 1000, 1200 or 1250 width. |
|
3.12 |
Forming Speed |
10-12m/min |
|
3.13 |
Power |
AC380V, 50Hz, 3 Phase(adjustable) |
|
3.14 |
Main Motor Power |
4kw |
|
3.15 |
Hydraulic Power |
3kw |
|
3.16 |
Dimension (L*W*H) |
6.8*1.3*1.5m |
|
|
|
3.2 components |
|
3.21 |
Roller Material |
45# steel, hard chrome plating. Thickness of chroming: 0.05mm |
|
3.22 |
outer diameter of shaft |
Φ 75mm |
|
3.23 |
Cutting blade |
Cr12 mould steel with quenched treatment. |
|
3.24 |
brand PLC |
MITSUBISHI |
|
|
|
Products Warranty: One year. We will provide the technical support for the whole life of the equipment |
Established in 1998, Botou Zhenyuan Roll Forming Machine Factory is specialized in designing and producing roof and wall roll forming machines.
Our products are widely applied to manufacturing colored steel tiles which get extensive application in industry workshop, warehouse, residence, etc. They have won high reputation for their satisfying quality among our customers.
