Standard Series Forged Link Drive Chain
| Price: |
US $ 5.9-52.5/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Standard Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
as Your Require |
| Made Style: |
Manufacture and OEM |
| Export Markets: |
Global |
| Standand: |
Standand and Unstandand |
| Dedicated Chain Type: |
Water Scraping Residue Chain |
| Leaf Chains Type: |
Drawing Machine Chain |
| Detachable Chain Type: |
Agricultural Roller Chains |
| Material Feature: |
All Kinds |
| Structure (for Chain): |
Roller Chain |
| Series: |
Multi Stage |
| Processing Object: |
Metal |
| Molding Style: |
Forging |
Product Description

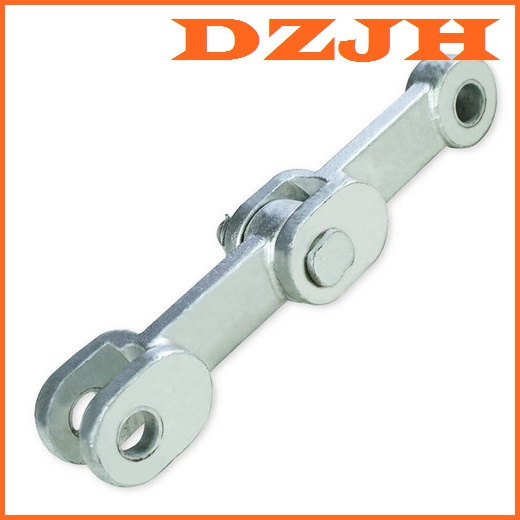

Standard Series Forged Link Drive Chain represents the leading product . Standard Series Forged Link Drive Chain has proven to be one of the most reliable conveying mediums offering a combination of versality, strength and abrasion resistance. These Standard Series Forged Link Drive Chain, originally or european origin, are now established worldwide. With a wide variety of materials, heat treatments and flight formats the chain is proven in both drag and enmasse handling.
| Forged Link Standard Series |
| Chain | P | T | C | S | F | R | Bolt Hole Diameter | Breaking Loads | Weight |
| Number | D | TN* | CN* | CD* |
| mm | kN | kg/m |
| JKF 10160 | 101.6 | 24 | 36 | 8 | 10 | 6 | 14 | 110 | 120 | 210 | 3.5 |
| JKF 10160R | 101.6 | 30 | 36 | 13 | 14 | 9 | 14 | 180 | 195 | 330 | 4.8 |
| JKF 12514 | 125 | 30 | 36 | 13 | 14 | 10 | 16 | 163 | 175 | 290 | 4.4 |
| JKF 14214 | 142 | 30 | 40 | 13 | 14 | 9 | 18 | 180 | 195 | 330 | 4.9 |
| JKF 14218 | 142 | 42 | 50 | 19 | 20 | 11 | 25 | 290 | 320 | 550 | 9.4 |
| JKF 14222 | 142 | 54 | 50 | 25 | 27 | 16 | 25 | 370 | 400 | 655 | 12.2 |
| JKF 14226 | 142 | 62 | 50 | 28 | 30 | 15 | 25 | 440 | 470 | 790 | 13.6 |
| JKF 16018 | 160 | 46 | 46 | 22 | 24 | 15 | 22 | 320 | 342 | 560 | 9.3 |
| JKF 16025 | 160 | 50 | 53 | 23 | 25 | 13 | 25 | 370 | 400 | 655 | 10.8 |
| JKF 20025 | 200 | 60 | 50 | 25 | 27 | 18 | 25 | 380 | 410 | 670 | 11.3 |
| JKF 20028 | 200 | 66 | 60 | 30 | 32 | 20 | 30 | 500 | 540 | 900 | 16.7 |
| JKF 21640 | 216 | 64 | 72 | 26 | 28 | 20 | 35 | 585 | 630 | 1035 | 20.1 |
| JKF 22040 | 220 | 64 | 72 | 26 | 28 | 20 | 35 | 585 | 630 | 1035 | 20.3 |
| JKF 22050 | 220 | 58 | 75 | 28 | 30 | 25 | 32 | 710 | 760 | 1260 | 19.1 |
| JKF 22060 | 220 | 71 | 75 | 31 | 33 | 21 | 35 | 735 | 790 | 1300 | 22.9 |
| JKF 25040 | 250 | 70 | 75 | 32 | 34 | 18 | 32 | 735 | 860 | 1430 | 18.8 |
| JKF 26035 | 260 | 65 | 75 | 31 | 33 | 20 | 32 | 840 | 900 | 1480 | 19.8 |
| JKF 26040 | 260 | 70 | 75 | 31 | 33 | 20 | 32 | 840 | 900 | 1480 | 21 |
| JKF 26045 | 260 | 78 | 75 | 35 | 37 | 20 | 32 | 930 | 1000 | 1650 | 21.8 |
Qingdao Dazheng Jin Hao International Trade Co., Ltd. is a industry and trade integrated enterprise.
We have our own factory, locate in Zhucheng Town of Weifang, close to Qingdao Port, and the traffic is convenient.
We have the advanced technology, personnel and expertise in serving, so we are now able to produce according to the customers different needs.

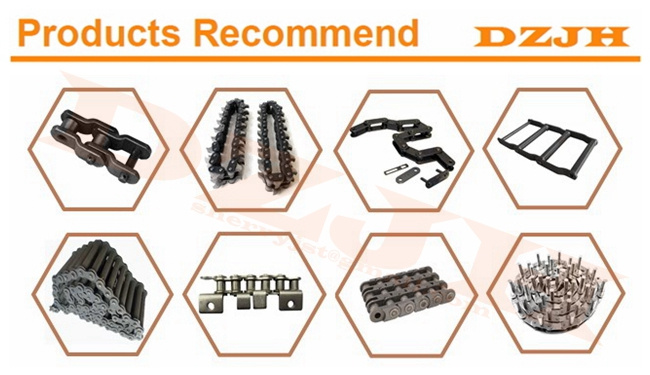

Main products:
Hardware tool, Fastener, Rigging, Conveyor, Mechanical equipment, Machine part etc.
Chain — — Roller chains, cranked link chain, roller chain with attachments, hollow pin roller chain, side bow roller chain, bush chain;
Conveyor chain— — Solid pin conveyor chain, hollow pin conveyor chain, double pitch conveyor chain, deep link conveyor chain, twin strand conveyor chain, conveyor chain with outboard rollers. Combination conveyor chain;
Multiplate chians— — Leaf chain, galle chian, silent chain
Special chain— — Flat top chain, crescent chain, detachable link chain, block chain, drop forged rivetless chain, pintle chain, drag chain, biplanar chain, pusher chain, bushless roller chain, sealed chain;
Machinery— — Cleaning Equipment, Fruit & Vegetable Processing Machines, Grain Processing
Machinery, Baking Equipment, Food Processing Machinery Parts, Food Sterilizer, Packaging Machine, Slaughtering Equipment, Metal & Metallurgy Machinery, etc.
Over the years, we adhere to "quality first, customer paramount" business philosophy.
We feel sure that you will be satisfied with both the quality of our goods and our service.
We look forward to receiving your enquires soon.
