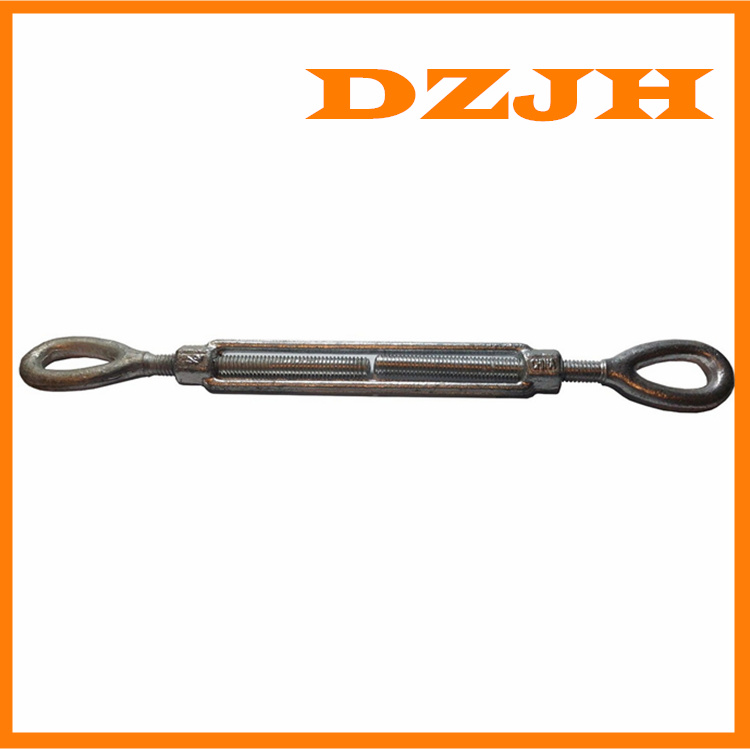

Turnbuckles Tr Series Oval Eye-Oval Eye
| Price: |
US $ 121.09-121.17/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
OVAL EYE-OVAL EYE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product: |
Turnbuckles with Oval Eyes |
| Surface Treatment: |
Galvanize |
| Colour: |
White |
| Stock: |
Yes |
| OEM: |
Yes |
| Customize: |
Yes |
| Type Of Shipping: |
Sea and Air |
| Technology: |
Forging |
| Material: |
Stainless Steel |
| Type: |
Turnbuckles with Oval Eyes and Oval Eyes |
Product Description
Our Stainless Steel Eye & Eye Turnbuckles are made of the highest quality drop forged Type 304 stainless steel.
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Turnbuckle eyes are forged and elongated, by design, to maximize easy attachment in system
and minimize stress in the eye. For turnbuckle sizes 1/4" through 2 1/2", a shackle one size
smaller can be reeved through eye.
WLL | L min | L max | Thread | Dimensions (mm) | Weight |
| (tons) | (mm) | (mm) | A | J | K | L | (kgs) |
| 1 | 398 | 566 | 18 x4 | 220 | 12 | 21 | 48 | 1.5 |
| 1.6 | 450 | 638 | 22x5 | 240 | 16 | 26 | 58 | 2 |
| 2 | 470 | 670 | 24 x 5 | 260 | 16 | 26 | 58 | 3 |
| 2.5 | 538 | 754 | 28x5 | 280 | 20 | 32 | 72 | 5 |
| 3.1 | 558 | 786 | 30 x 6 | 300 | 20 | 32 | 72 | 7 |
| 4 | 635 | 876 | 32x6 | 320 | 25 | 40 | 94 | 9 |
| 5 | 658 | 898 | 36 x 6 | 340 | 25 | 40 | 94 | 13 |
| 6.3 | 753 | 1016 | 44x7 | 380 | 30 | 45 | 108 | 19 |
| 8 | 813 | 1110 | 48 x 8 | 420 | 32 | 50 | 115 | 27 |
| 10 | 891 | 1200 | 52x8 | 460 | 36 | 60 | 125 | 35 |
| 12.6 | 988 | 1328 | 55 x 9 | 500 | 40 | 65 | 144 | 46 |
| 16 | 1092 | 1446 | 65 x 10 | 540 | 45 | 70 | 163 | 64 |
| 20 | 1184 | 1566 | 70 x 10 | 580 | 55 | 75 | 173 | 78 |
| 25 | 1270 | 1674 | 75 x 10 | 620 | 60 | 80 | 192 | 90 |
| 31.5 | 1382 | 1812 | 80 x 10 | 660 | 60 | 90 | 216 | 130 |
Qingdao Dazheng Jin Hao International Trade Co., Ltd. is a industry and trade integrated enterprise.
We have our own factory, locate in Zhucheng Town of Weifang, close to Qingdao Port, and the traffic is convenient.
We have the advanced technology, personnel and expertise in serving, so we are now able to produce according to the customers different needs.
Main products:
Hardware tool, Fastener, Rigging, Conveyor, Mechanical equipment, Machine part etc.
Chain — — Roller chains, cranked link chain, roller chain with attachments, hollow pin roller chain, side bow roller chain, bush chain;
Conveyor chain— — Solid pin conveyor chain, hollow pin conveyor chain, double pitch conveyor chain, deep link conveyor chain, twin strand conveyor chain, conveyor chain with outboard rollers. Combination conveyor chain;
Multiplate chians— — Leaf chain, galle chian, silent chain
Special chain— — Flat top chain, crescent chain, detachable link chain, block chain, drop forged rivetless chain, pintle chain, drag chain, biplanar chain, pusher chain, bushless roller chain, sealed chain;
Machinery— — Cleaning Equipment, Fruit & Vegetable Processing Machines, Grain Processing
Machinery, Baking Equipment, Food Processing Machinery Parts, Food Sterilizer, Packaging Machine, Slaughtering Equipment, Metal & Metallurgy Machinery, etc.
Over the years, we adhere to "quality first, customer paramount" business philosophy.
We feel sure that you will be satisfied with both the quality of our goods and our service.
We look forward to receiving your enquires soon.
