| Prod Model: |
YX65-300-400-500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Roll Forming Machine: |
Roofing Forming Machine |
| Dimension: |
6000*1800*1700mm |
| Weight: |
7000kgs |
| Motor Power: |
7.5kw*2 Sets |
| Hydraulic Power: |
2.2kw |
| Forming Steps: |
13 |
| Height Of Roofing: |
65mm |
| Effective Width: |
300mm/400mm/500mm |
| Material Width: |
470mm, 575mm, 680mm |
| Material Thickness: |
0.6-1.0mm |
Product Description

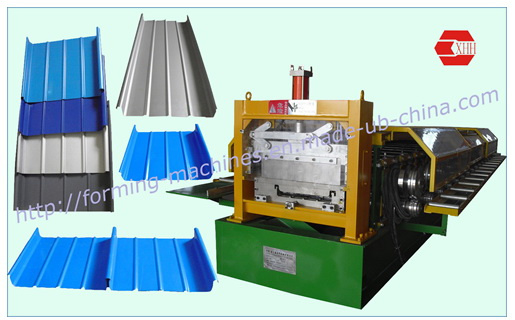

YX65-300-400-500 Standing Seam Roofing Machine, Rolling Forming Machine, Metal Roofing Machine:
Main Accessories:
A. Main roof forming machine;
B. 5 tons manual decoiler;
C. Hydraulic system;
D. PLC computer controlling system with touch screen;
E. Hydraulic forming cutter;
F. Protetive Cover;
G. Operational manual.
|
1. |
Size |
6500*1600*1400mm |
|
2. |
Weight |
6500KGS |
|
3. |
Motor Power |
7.5KW*2 sets |
|
4. |
Hydraulic Power |
2.2KW |
|
5. |
Voltage |
220V/60HZ/3PH |
|
6. |
Forming Steps |
13 |
|
7. |
Forming Speed |
8-14m/min |
|
8. |
Effective Width |
300mm, 400mm, 500mm |
|
9. |
Material of Width |
470mm, 575mm, 680mm |
|
10. |
Thickness for Aluminum sheets: |
0.6-1.0mm |
|
11. |
Thickness for Colored Prepainted and Galvanized Sheet |
0.6-0.8mm |
|
12. |
Material for All Rollers |
high grade no. 45 forged steel, plated hard chrome on the surface of rollers |
Established in 2004, Xiamen Xinhonghua Machinery Co., Ltd which is load in nice island city of Xiamen is specialized in manufacturing roll forming machines with hydraulic systems and PLC computer controlling systems. Our company has advanced technologies and great experience in the R&D, manufacture, installation, testing and training.
Our company can supply a wide range of Al-Mg-Mn panel forming machines, standing seam roofing machines, C/Z shaped Auto full adjustment purline machines, tapered-shaped standing seam roofing machines, colored roof panel machines, glazed tile machines, shaft forming machines, rolling door machines, flattening machine with slitting and cutting device, floor decking machines, highway guardrail machines, auto adjustment curving machine and hydraulic bending machines.
We enjoy a good reputation with the enterprise spirit of "Innovation chases the development; Management earns benefit". We insist on the service philosophy of "Satisfying our customers' needs".
Our products sell well at home, and are exported to clients in the Philippines, Indonesia, India, Malaysia, Ameria, Dubai, Singapore, Brazil, Turkey, Canada, Africa, Tailand, Columbia, the Middle East and other countries and regions.
